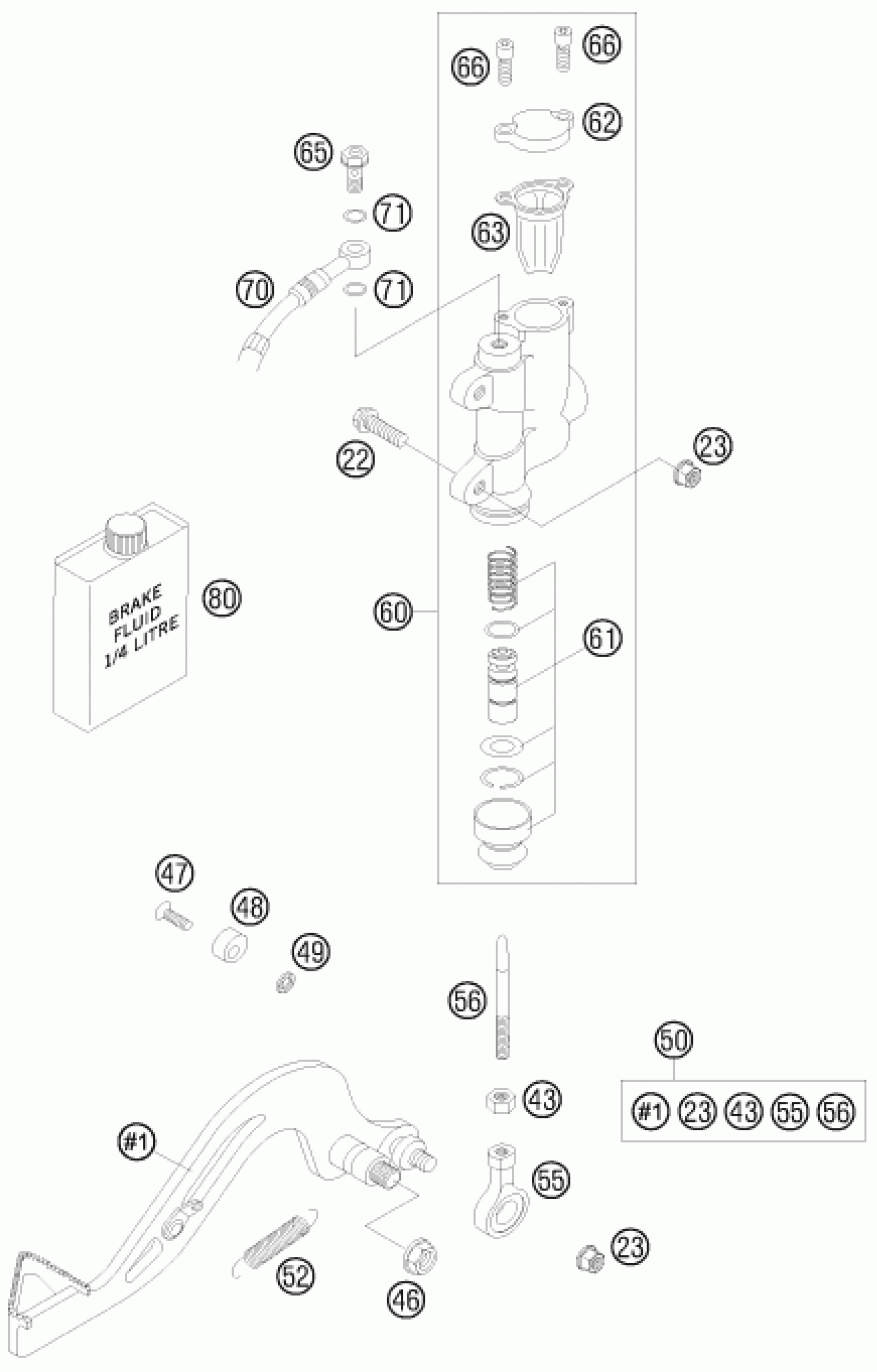

KTM 65 SX 2008 REAR BRAKE CONTROL Diagram

#

Description
Price

22

HH collar screw M6x20 TX30

0025060206

Unavailable

23

Self locking nut M6 - 10

56509064100

Unavailable

43

Hex. nut DIN 934 M6

0934060003

Unavailable

46

Self locking nut M8 10.9

54310086200

Unavailable

47

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

48

BRAKE LEVER STOP '93

58303063000

Unavailable

49

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

Unavailable

50

BRAKE PEDAL LEVER CPL 2000

46003060233

Unavailable

52

RETURN SPRING FOR BRAKELEVER

54603062000

Unavailable

55

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

Unavailable

56

PRESSURE ROD ALU 250 '90

54603068000

Unavailable

60

REAR BRAKE CYL. 50+65 04

46113060000

Unavailable

61

REP. SET PISTON REAR D=11 2003

47013061000

Unavailable

62

CYLINDER COVER REAR 85 SX 03

47013062000

Unavailable

63

GASKET CYLINDER COVER REAR 03

47013063000

Unavailable

65

HOLLOW SCREW M6

46113325000

Unavailable

66

AH.SCREW DIN0912-M 4X10

0912040103

Unavailable

70

BRAKE HOSE REAR 65 SX 04

46113070000

Unavailable

71

O-ring 6.00X1.00 FORMULA

0770060019

Unavailable

80

Brake fluid DOT5.1 0,25L

00062030000

Unavailable
