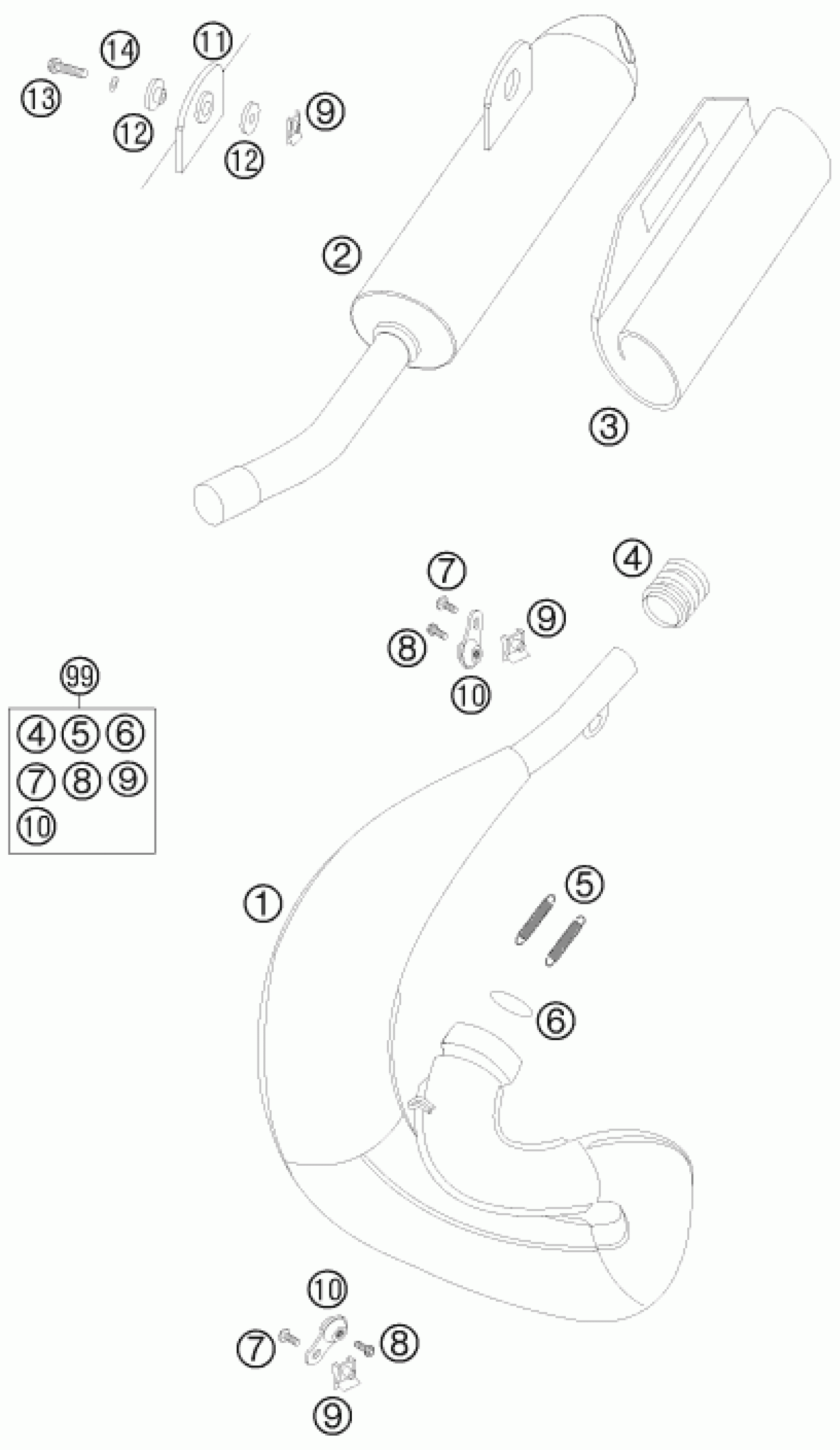

KTM 65 SX 2008 EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST PIPE 65 SX 2002

46105007000

Unavailable

2

MAIN SILENCER 65 SX 2006

46105079100

Unavailable

3

ROCKWOOL PREFOMED 50 2002

45105079056

Unavailable

4

RUBBER SLEEVE D=21MM/23MM '93

54605057000

Unavailable

5

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

6

O-ring 35x3 Viton 70

0770350030

Unavailable

7

HH collar screw M6x15 TX30

0024060156

Unavailable

8

HH collar screw M6x16 TX30

0025060166

Unavailable

9

clip nut M6

54603048100

Unavailable

10

Silent block for exhaust pipe

50305012000

Unavailable

11

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

12

BUSHING 7,5X12X28X7,8 '96

54605069000

Unavailable

13

HH collar screw M6x30 TX30

0025060306

Unavailable

14

spring washer DIN 137 B - 6

0137060003

Unavailable

99

EXHAUST HARDWARE KIT MINI

00050000812

Unavailable
