CYLINDER

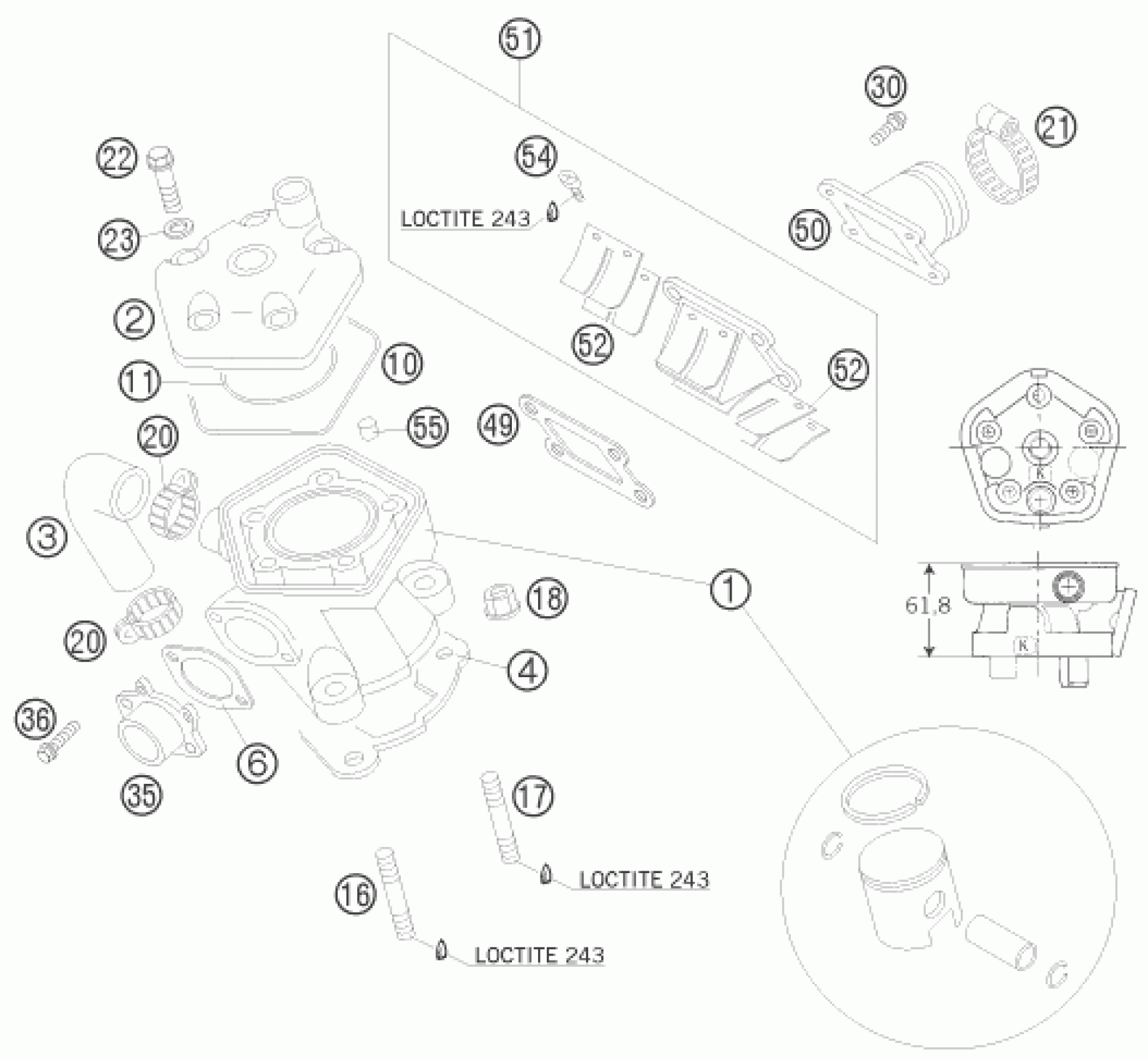

KTM 65 SX 2008 CYLINDER Diagram
#
Description
Price
1
CYLINDER W.PISTON 45MM 65SX 03
46030005600
Unavailable
2
CYLINDERHEAD 65 SX 2003
46030006700
Unavailable
3
PRE-FORM.HOSE CYL.-CLUTCH COV.
46035027000
Unavailable
4
CYLINDER BASE GASKET 0,2 MM
46030035020
Unavailable
4
CYLINDER BASE GASKET 0,4 MM
46030035040
Unavailable
4
CYLINDER BASE GASKET 0,5 MM
46030035050
Unavailable
4
CYLINDER BASE GASKET 0,6 MM
46030035060
Unavailable
6
EXHAUST GASKET 60/65 CCM
46030046000
Unavailable
10
O-RING 94,97X1,78
46030037000
Unavailable
11
O-RING 53,7X1,78 VITON
46030036000
Unavailable
16
STUD M8X41
46030043000
Unavailable
17
STUD M8X44
46030043100
Unavailable
18
flanged nut M8 WS10
46030045000
Unavailable
20
HOSE CLAMP GEMI 18-29
10001020000
Unavailable
21
HOSE CLAMP 32-52MM D5
31001027000
Unavailable
22
CYLINDERHEADSCR.HH-M7X38 2003
46030079100
Unavailable
23
CU-SEAL RING 7,3 X 12 X 0,5
50230032010
Unavailable
30
HH COLLAR SCREW M 6X20 WS=8
0015060203
Unavailable
35
EXHAUST FLANGE 65 SX 2002
46036040100
Unavailable
36
HH COLLAR SCREW M 6X20 WS=8
0015060203
Unavailable
49
INTAKE VALVE GASKET
46030049000
Unavailable
50
INTAKE FLANGE
46030050000
Unavailable
51
MEMBRANE HOUSING CPL.65SX 2001
46030051144
Unavailable
52
MEMBRANE LOOSE 60/65 CCM
46030052000
Unavailable
54
FLAT HEAD SCREW DIN7985-M 3X6
0985030063
Unavailable
55
DOWEL 7X9X10
45130023000
Unavailable
