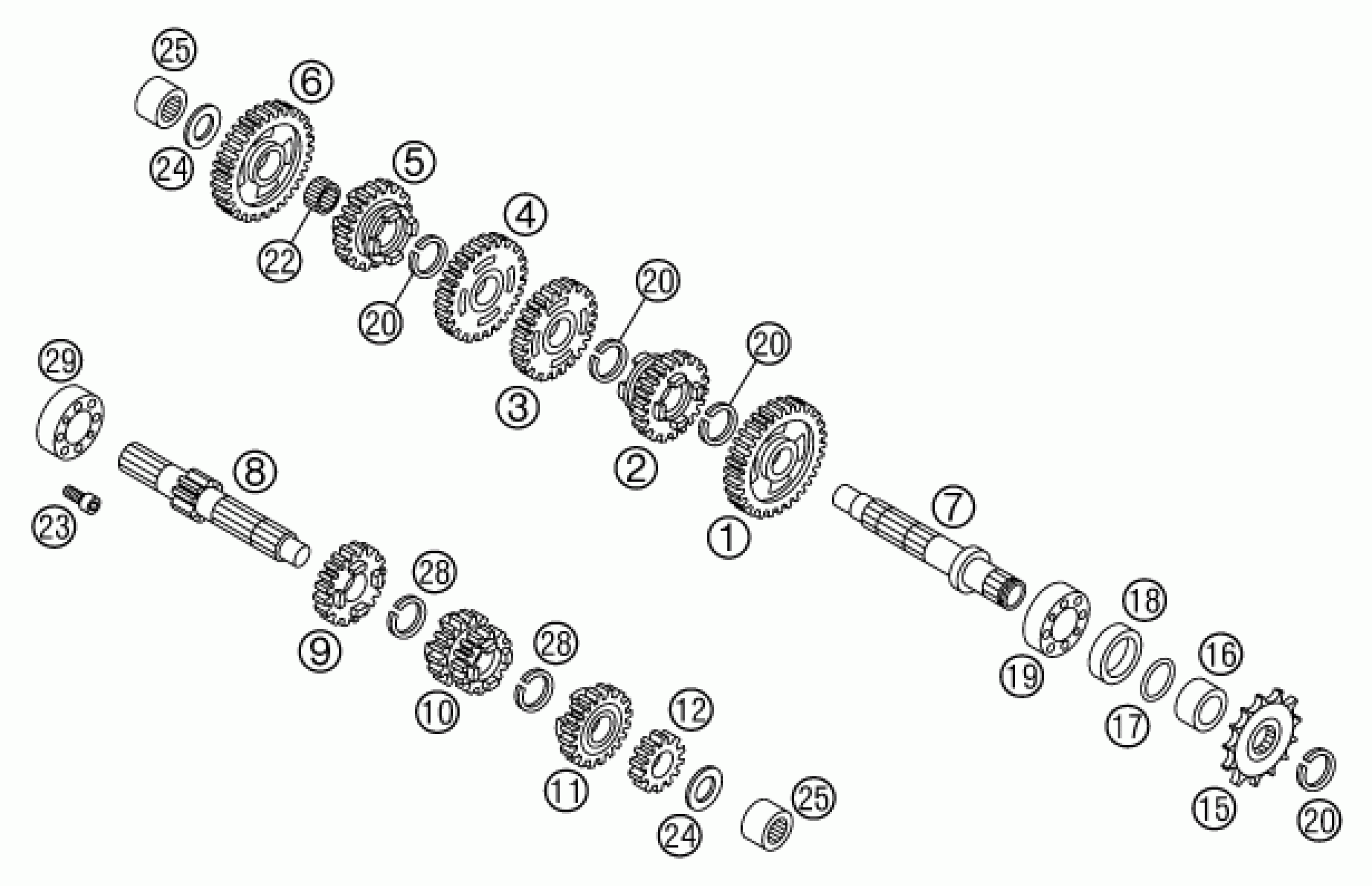

KTM 65 SX 2006 TRANSMISSION Diagram

#

Description
Price

1

IDLER GEAR 2ND GEAR 65 SX 2002

46033011100

Unavailable

2

SLIDING GEAR 6TH G. 65 SX 02

46033012200

Unavailable

3

IDLER GEAR 3RD GEAR 65 SX '02

46033013100

Unavailable

4

IDLER GEAR 4TH GEAR 65 SX '02

46033014100

Unavailable

5

SLIDING GEAR 5TH GEAR 65SX02

46033015200

Unavailable

6

IDLER GEAR 1ST GEAR 65 SX 2002

46033016200

Unavailable

7

COUNTER SHAFT 65SX 2001

46033002100

Unavailable

8

MAIN SHAFT 13-T

46033001000

Unavailable

9

IDLER GEAR 5TH GEAR 65 SX 02

46033007200

Unavailable

10

SLIDING GEAR 3RD/4TH G.65S02

46033008200

Unavailable

11

IDLER GEAR 6TH GEAR 65 SX '02

46033009200

Unavailable

12

SOLID GEAR 2ND GEAR 16-T

46033010000

Unavailable

15

SPROCKET 13-T 60/65

46033029013

Unavailable

15

SPROCKET 14-T 65 SX 2002

46033029014

Unavailable

16

DISTANCE BUSHING SPROCKET

46033030000

Unavailable

17

O-RING 18,77X1,78

46033031000

Unavailable

18

SHAFT SEAL RING 26X35X6

0760263560

Unavailable

19

Grooved ball bearing 20X42X12

46033028000

Unavailable

20

CIRCLIP AS20X1,75

49033091000

Unavailable

22

NEEDLE BEARING 14X18X8

46033020000

Unavailable

23

SPECIAL SCREW M6X10

46033023000

Unavailable

24

STOP DISK 12,1X25X1

49033013000

Unavailable

25

NEEDLE BEARING NK12 12X19X12

46033026000

Unavailable

28

CIRCLIP WS=17X1,2

46033022000

Unavailable

29

GROOVED BALL BEAR.SKF98203/C3

46033025000

Unavailable
