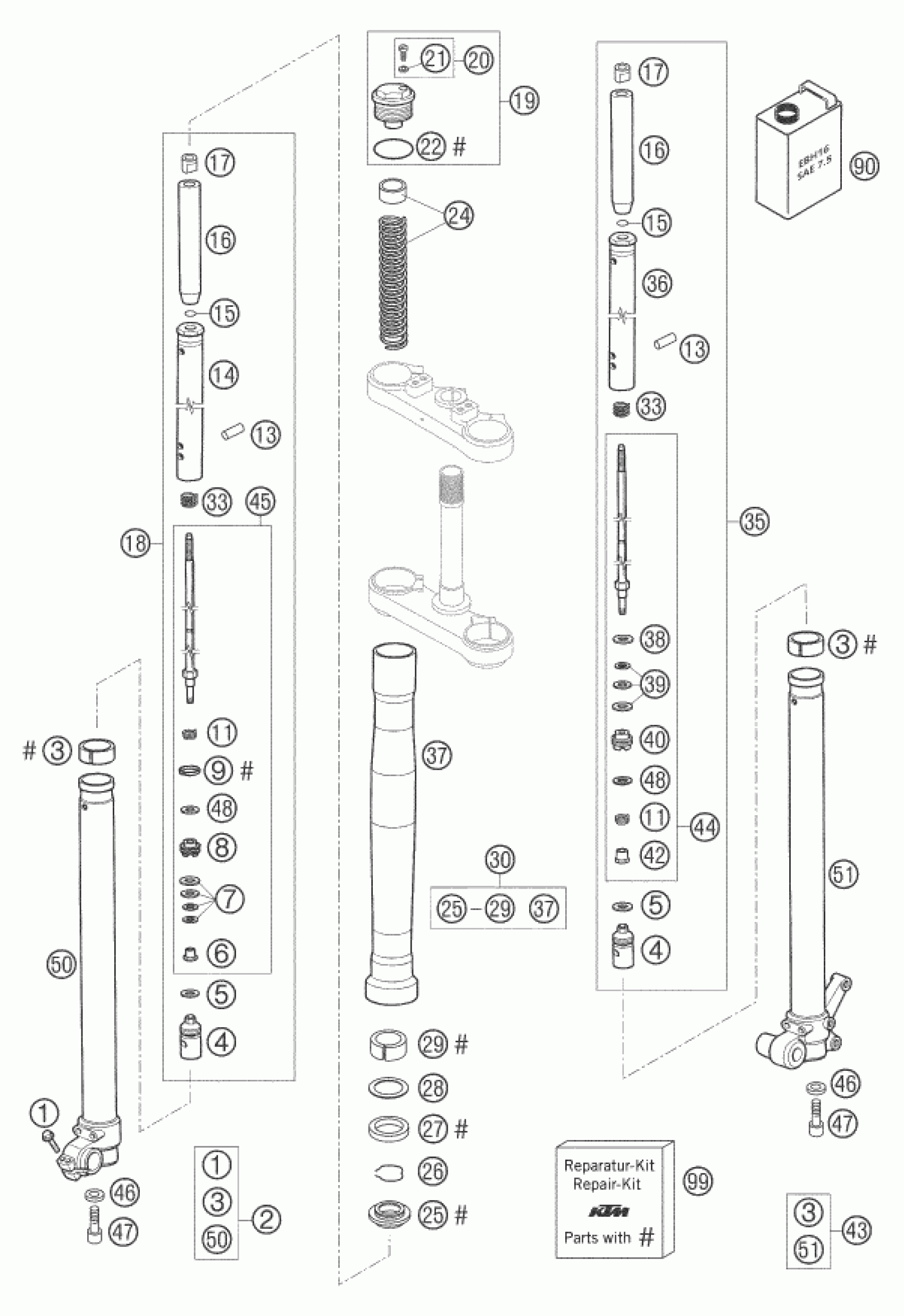

KTM 65 SX 2006 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

2

SLIDER + AXLE CLAMP CPL. R/S

7819139/C

Unavailable

3

GUIDE RING D=35

7538029

Unavailable

4

FOOT VALVE

7717065/R

Unavailable

5

O-RING D=20,3

7528005

Unavailable

6

SPECIAL NUT M6X1 WITH STEP

7521092/D

Unavailable

7

REED VALVE 22X8,1X0,1

7517217

Unavailable

8

PISTON REBOUND D=26

7530097/B

Unavailable

9

PISTON RING D=26

7524163

Unavailable

11

LOWER REBOUND SPRING

75141087

Unavailable

13

PIN 8X30

75321033

Unavailable

14

TUBE BODY R/S

75181140/R

Unavailable

15

STOP RING 10X1

7523224

Unavailable

16

GUIDE BUSH 6,4X12X12

75181153

Unavailable

17

SPECIAL NUT

7521005

Unavailable

18

REBOUND CPL.

78031082

Unavailable

19

PLUG CPL.

7701196

Unavailable

20

LENTIL HEAD SCREW M4X6

7850208AR

Unavailable

21

O-RING D=3,69, S=1,78

7528180

Unavailable

22

O-RING D=34,6, S=1,78

7528008

Unavailable

24

SPRINGS + PRELOAD SLEEVES KIT

7850728

Unavailable

25

DUST CAP

7533167

Unavailable

26

LOCK WASHER D=51,5

7523236

Unavailable

27

OIL SEAL 35X47X10

7528034

Unavailable

28

WASHER 36X47X3

7539032AA

Unavailable

29

GUIDE RING 35X15

7538038/A

Unavailable

30

OUTER TUBE CPL.

7760069FN/C

Unavailable

33

TOP REBOUND SPRING

7514077

Unavailable

35

COMPRESSION CPL.

78031083

Unavailable

36

TUBE BODY L/S

75181139/R

Unavailable

38

COMPRESSION DAMPING SHIM

7535099

Unavailable

39

SHIM 8,1X23X0,2

7517028

Unavailable

39

SHIM 8,1X22X0,2

7517039

Unavailable

39

SHIM 8,1X22X0,3

7517060

Unavailable

40

PISTON COMPRESSION D=26

7530090/B

Unavailable

42

SPECIAL NUT M6X1 WITH STEP

7521147/A

Unavailable

43

SLIDER + AXLE CLAMP CPL. L/S

7819140/C

Unavailable

44

COMPRESSION CARTRIDGE CPL.

7309651/R

Unavailable

45

REBOUND CARTRIDGE CPL.

7309652/R

Unavailable

46

SHIM 8X12X1,5

7522061

Unavailable

47

AH SCREW DIN0912-M 8X25

0912080253

Unavailable

48

SHIM 8,1X23X0,3

7517044

Unavailable

90

FORKOIL EBH16 SAE 7.5

7550013

Unavailable

99

REPAIR-KIT USD 35

7850731/C

Unavailable
