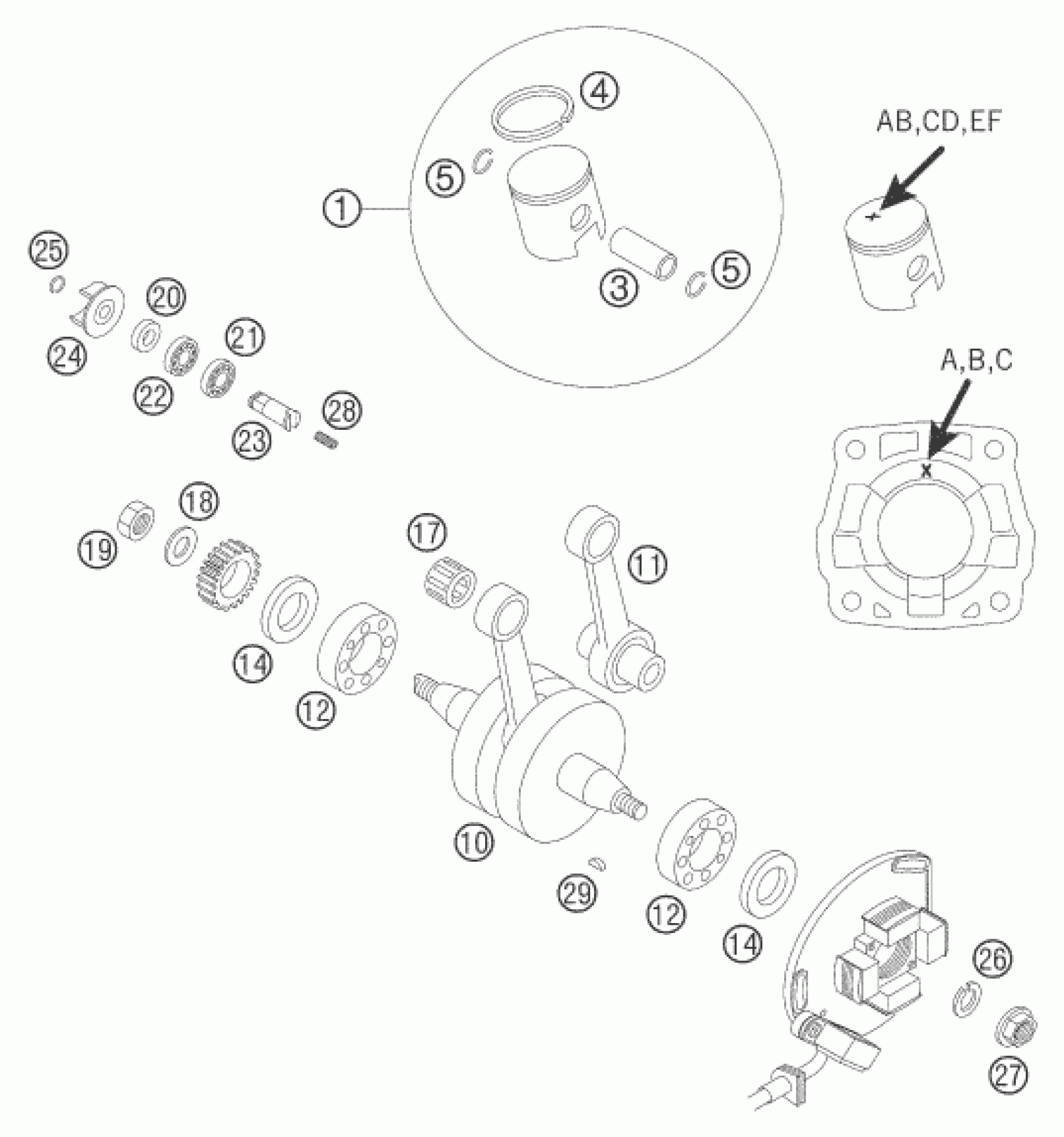

KTM 65 SX 2006 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

PISTON CPL. 45MM ''A/B'' 65'

46030007500 A

Unavailable

1

PISTON CPL. 45MM ''C/D'' 65'

46030007500 C

Unavailable

1

PISTON CPL. 45MM ''E/F'' 65'

46030007500 E

Unavailable

3

PISTON PIN 12X38

46030033000

Unavailable

4

PISTON RING 45MM 65CCM

46030030500

Unavailable

5

CIRCLIP 2001

45130074000

Unavailable

10

CRANKSHAFT CPL. STROKE 40,8

46030018200

Unavailable

11

CONN.ROD REPAIR SET 65 SX 2003

46030015100

Unavailable

12

GROOVED BALL BEAR.20X52X15 NTN

46030082200

Unavailable

14

SEAL SHAFT RING 20X35X6 BTSL

47030076100

Unavailable

17

NEEDLE BEAR.PISTONPIN 12X15X17

46030034000

Unavailable

18

LOCKING WASHER 14X20X1

46030078100

Unavailable

18

STOP DISC 15X25X1

47033040000

Unavailable

19

HH-NUT M14X1,25X5 '99

46030029100

Unavailable

20

SHAFT SEAL RING 10X18X4

46035056100

Unavailable

21

WATER PUMP BEARING 10X19X5

46035057000

Unavailable

22

WA.PU.BEAR. 10X19X5 DOUBLELIP

46035058000

Unavailable

23

WATER PUMP SHAFT 50 LC 2004

45135054000

Unavailable

24

WATER PUMP WHEEL 60/65 '99

46035055100

Unavailable

25

CIRCLIP DIN0471- 9X1

0471090010

Unavailable

26

LOCKING RING VSK 12

50230029012

Unavailable

27

COLLAR NUT M12X1 R/S

49030021000

Unavailable

28

SPRING FOR WATER PUMP SHAFT 04

45135058000

Unavailable

29

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable
