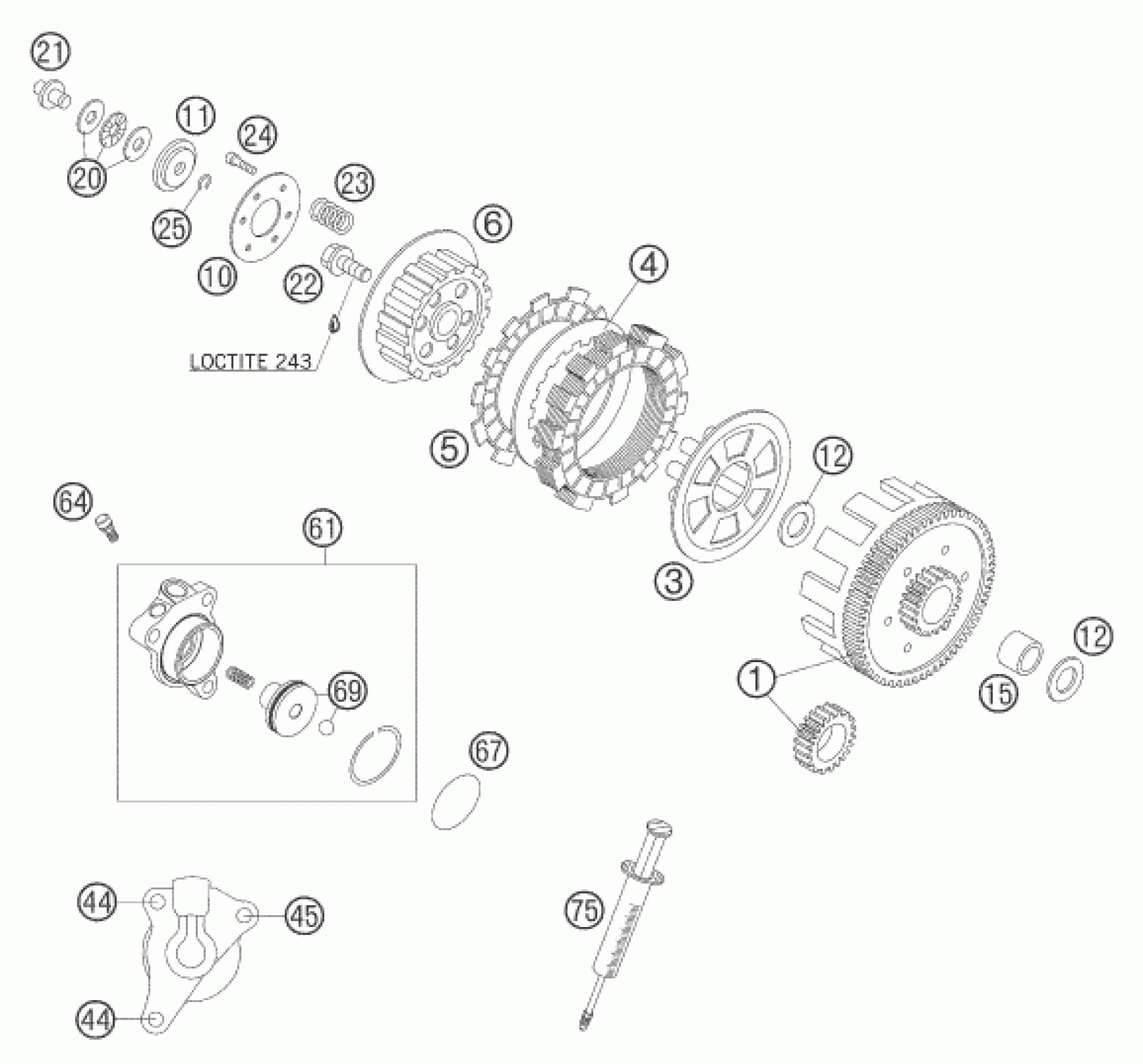

KTM 65 SX 2006 CLUTCH Diagram
#
Description
Price
1
PRIM.DR.W.CLUTCH HUB 23:75 '99
46032000144
Unavailable
3
PRESSURE CAP 60/65 CCM '98
46032003000
Unavailable
4
INTERMEDIATE DISK STEEL
46032010000
Unavailable
5
LINING DISK
46032011000
Unavailable
6
INNER CLUTCH HUB 60/65 CCM '98
46032002000
Unavailable
10
SPRING RETAINER 25X63,5X2
46032006000
Unavailable
11
CARRIER FOR AXIAL BEARING
46032008000
Unavailable
12
STOP DISK 17,2X30X1,5
49032012000
Unavailable
15
INNER RING 22X17X20,5
46032015000
Unavailable
20
AXIAL BEARING 6X19X2
46032056000
Unavailable
21
PRESSURE PIECE 65 SX 2002
46032054100
Unavailable
22
HH COLLAR SCREW M10X20
46032019000
Unavailable
23
CLUTCH SPRING REINFORCED 60/65
46032005100
Unavailable
24
FLAT H.SCREW DIN7991-M6X20
0991060203
Unavailable
25
CIRCLIP DIN0471-6X0,7
0471006007
Unavailable
44
HH COLLAR SCREW M 6X16 WS=8
0015060163
Unavailable
45
HH COLLAR SCREW M 6X20 WS=8
0015060203
Unavailable
61
OUTPUT CYLINDER CPL. 27MM 03
59032061044
Unavailable
64
BLEEDER SCREW WITH CAP
54732064000
Unavailable
67
O-ring 30x1.5 NBR 70
0770300015
Unavailable
69
PISTON + O-RING + BALL 27MM
59032066000
Unavailable
75
VENT INJEKTION HYDR. CLUTCH
50329050000
Unavailable
