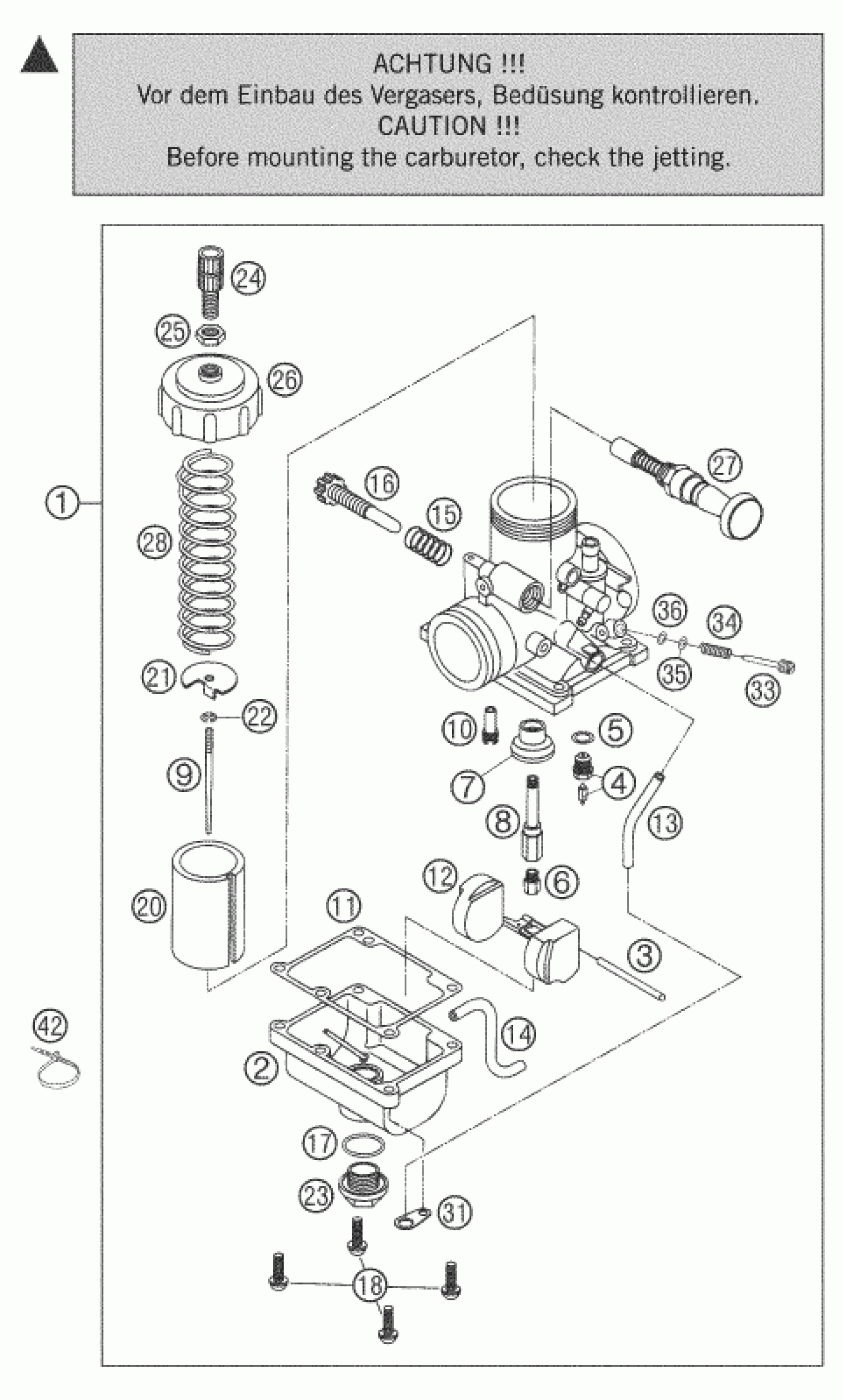

KTM 65 SX 2006 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR MIKUNI VM24-505 04

46131001000

Unavailable

2

FLOAT BODY 5-1 VM24

46031011000

Unavailable

3

PIN 2,5X27

45031008000

Unavailable

4

NEEDLE VALVE CPL. VM24

46131020000

Unavailable

5

GASKET NEEDLE VALVE 9,1X12X0,5

46031018000

Unavailable

6

MAIN JET 185

45031023185

Unavailable

6

MAIN JET 190

45031023190

Unavailable

6

MAIN JET 195

45031023195

Unavailable

6

MAIN JET 200

45031023200

Unavailable

6

MAIN JET 205

45031023205

Unavailable

7

BUFFLE

46031074000

Unavailable

8

NEEDLE JET 864 0-0

46131021000

Unavailable

9

JET NEEDLE MIKUNI 5I14

45031034200

Unavailable

10

IDLING JET 25 MIKUNI

45031007025

Unavailable

11

GASKET FLOAT BOWL

45031010100

Unavailable

12

FLOAT VM24

46031009000

Unavailable

13

PVC-HOSE 3X5MM

52031137001

Unavailable

14

PVC-HOSE 3X5MM

52031137001

Unavailable

15

SPRING MIKUNI

45031015100

Unavailable

16

THROTTLE VALVE SCREW M6X30

46031019000

Unavailable

17

O-RING 17,5X1,4

46031043000

Unavailable

18

LINTIL HEAD SCREW M4X16 (SET)

45031014016

Unavailable

20

THROTTLE VALVE 1.5

46131035000

Unavailable

21

HOLDING WASHER

46031032000

Unavailable

22

SPRING

45031045000

Unavailable

23

PLUG SCREW M16 WS=17

46031014000

Unavailable

24

ADJUSTMENT SCREW M6X0,75

57031525000

Unavailable

25

HH-NUT M6X0,75

45031026000

Unavailable

26

CARBURETOR COVER VM24

46031027000

Unavailable

27

COLD STARTER KNOB CPL. VM24

46031048044

Unavailable

28

THROTTLE VALVE SPRING VM24

46031030000

Unavailable

31

BRACKET FOR BREATHER HOSE

46031081000

Unavailable

33

ADJUSTING SCREW MIKUNI

46131017000

Unavailable

34

SPRING

45031015000

Unavailable

35

WASHER ADJUSTING SCREW

46131032000

Unavailable

36

O-RING ADJUSTING SCREW

46131033000

Unavailable

42

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable
