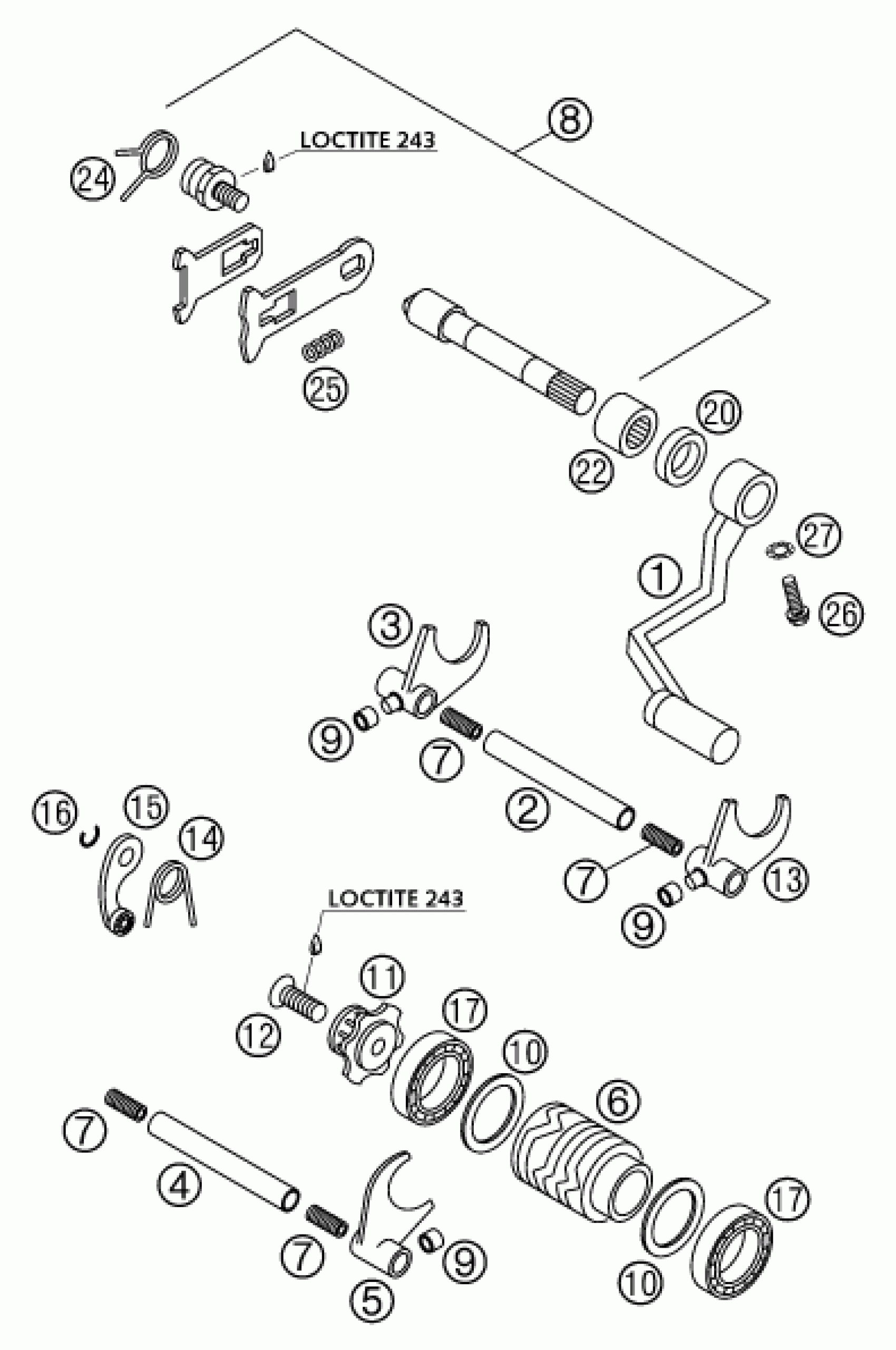

KTM 65 SX 2002 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT LEVER COL. 65 SX 2001

46034031100

Unavailable

2

SHIFT RAIL 2001

46034020100

Unavailable

3

SHIFT FORK COUNTERSHAFT R/S

46034002100

Unavailable

4

SHIFT RAIL 10X72MM 2001

46034019100

Unavailable

5

SHIFT FORK MAIN SHAFT 2001

46034001100

Unavailable

6

SHIFT ROLLER 65 SX 2001

46034012300

Unavailable

7

SPRING SHIFT RAIL 2001

46034019052

Unavailable

8

SHIFT SHAFT CPL.

46034005044

Unavailable

9

SHIFTING ROLLER 6X8X5,2

50334018100

Unavailable

11

SHIFT DRUM LOCATING 60/65 2000

46034015100

Unavailable

10

SPACER WASHER-SET 2001

46034091100

Unavailable

12

FLAT HEAD SCREW DIN7991-M 6X30

0991060303

Unavailable

13

SHIFT FORK COUNT. 2.3.GEAR

46034002200

Unavailable

14

LOCKING LEVER SPRING 2001

46034023100

Unavailable

15

LOCKING LEVER CPL. 65 SX 2002

46034024100

Unavailable

16

* TAB WASHER DIN6799-RS10,0

0799100000

Unavailable

17

BALL BEARING 61805 C3

0625618050

Unavailable

20

SHAFT SEAL RING 12X20X5 B

0760122050

Unavailable

22

NEEDLE BEARING 12X18X12 2002

46034027000

Unavailable

24

RETURN SPRING

46034014000

Unavailable

25

PRESSURE SPRING SLIDER PLATE

46034009000

Unavailable

26

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

27

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

Unavailable
