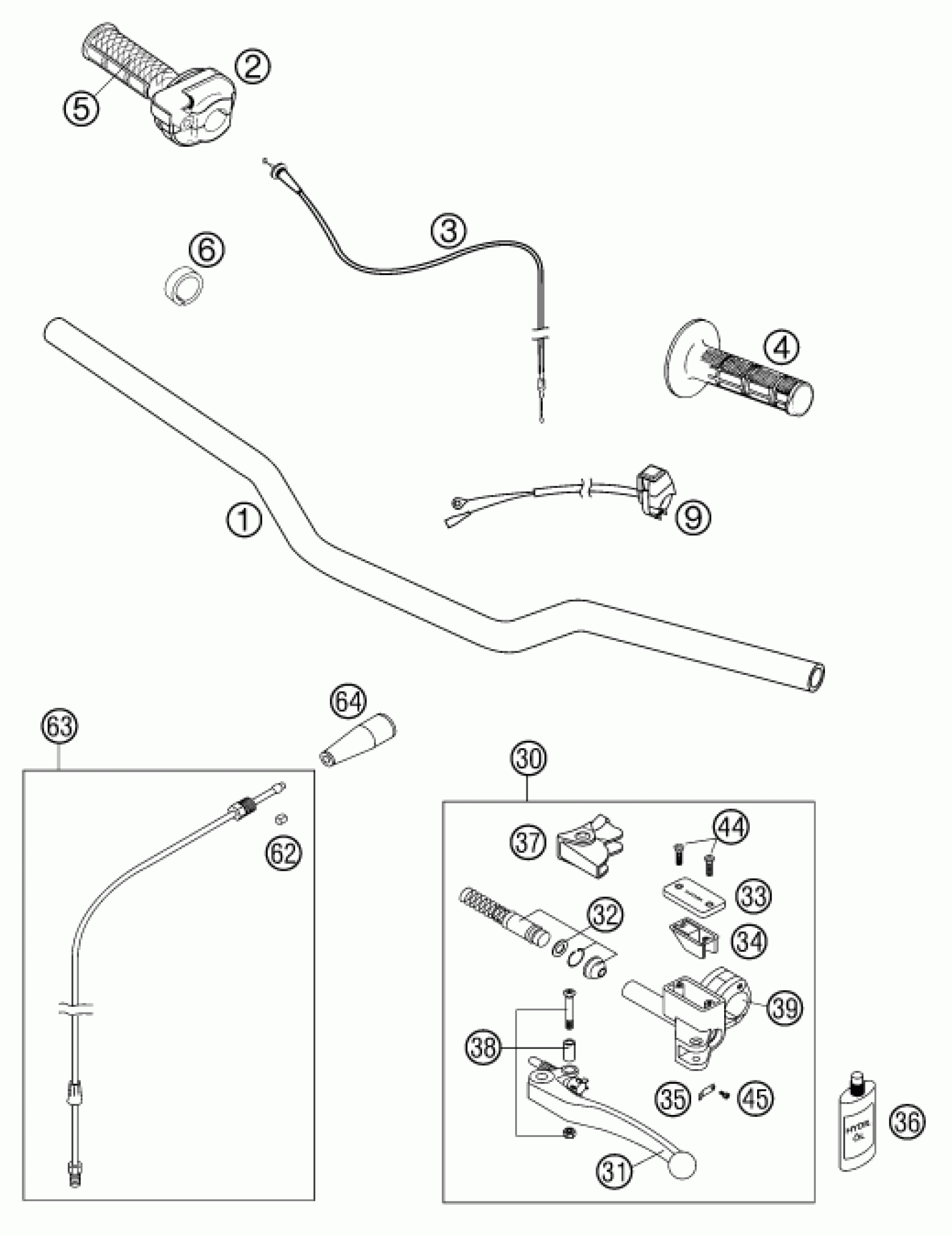

KTM 65 SX 2002 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR 65 SX 2002

46102001000

Unavailable

2

THROTTLE GRIP W.COVER 65SX02

46102010000

Unavailable

0

PROTECTION COVER '97

50302020000

Unavailable

3

THROTTLE CABLE DOMINO 65 SX 02

46102091000

Unavailable

4

FfIXED GRIP DOMINO BLACK '95

50202052000

Unavailable

5

TWIST GRIP COVER DOMINO BLACK

50202003000

Unavailable

6

SPACER BUSHING 21,5X28X7,5

46002012000

Unavailable

9

Kill switch

50311089200

Unavailable

30

MASTER CYL CPL.65 SX 2002

46102030000

Unavailable

31

CLU.LEVER SHORT CPL. 2T 2000

50302031100

Unavailable

32

REP.KIT PISTON 9,5MM RAC. 2000

59002032000

Unavailable

33

COVER HYD.CLUTCH 2T 2000

50302033100

Unavailable

34

RUBBER FOR RESERVOIR '98

50302034000

Unavailable

35

SPRING PLATE FOR LEVER '98

50302035000

Unavailable

36

OIL FOR HYD.CLUTCH 50ML

50302036000

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

Unavailable

38

LEVER SCREW CPL. 125-200 '98

50302038000

Unavailable

39

CLAMP WITH PIN 2000

50302030150

Unavailable

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

Unavailable

45

AH SCREW DIN7984-M 3X 6

0984030063

Unavailable

62

SELF CUTTING RING HYDR.PIPE

50332063050

Unavailable

63

PIPE KIT FOR HYDR.CLUTCH 65 SX

46132063000

Unavailable

64

PROTECTION CAP

54002016000

Unavailable
