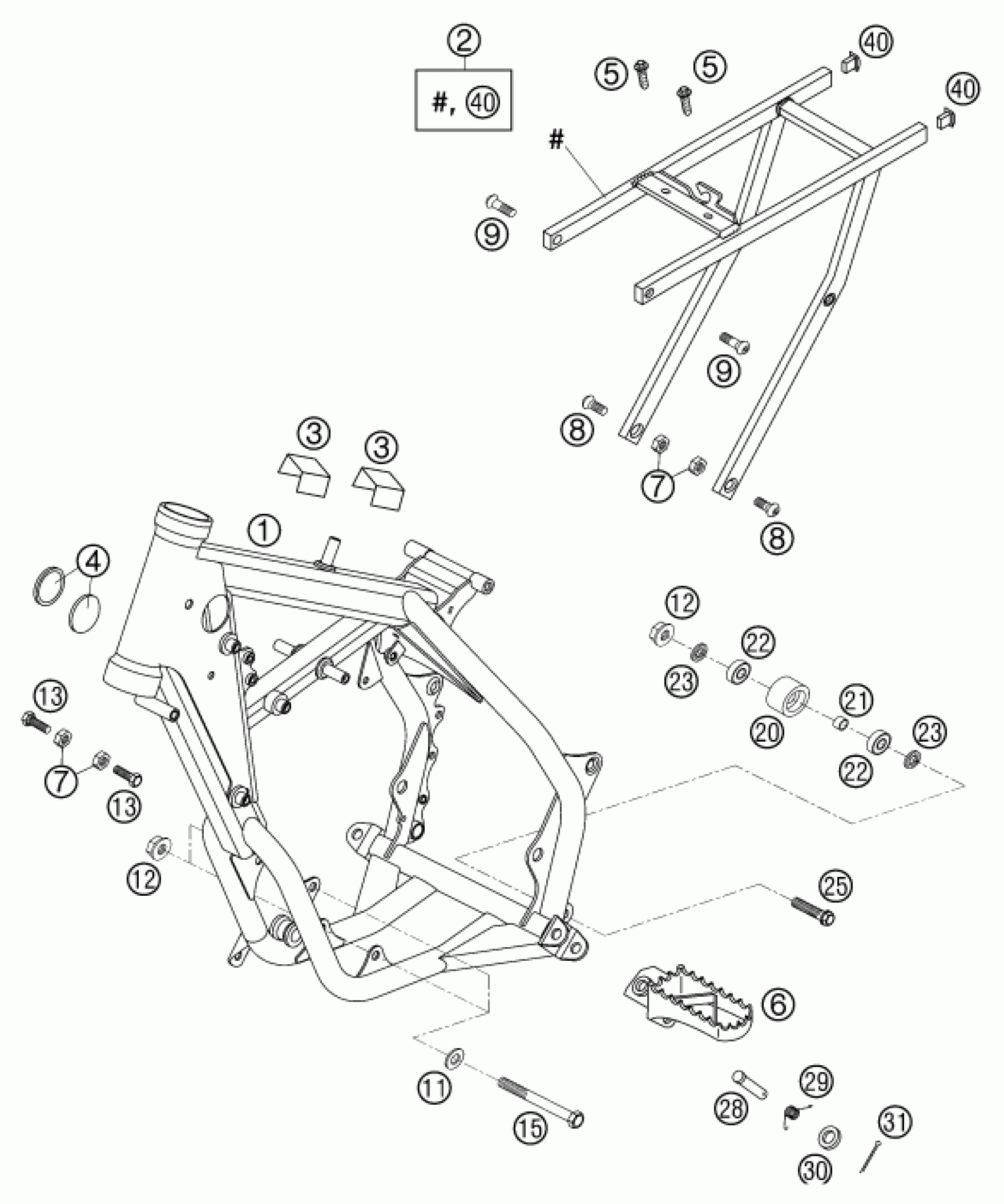

KTM 65 SX 2002 FRAME Diagram
#
Description
Price
7
Hexagon nut DIN934 M8
0934080003
Unavailable
8
SPROCKET SCREW-AH M8X20 WS=6
54610052000
Unavailable
9
SPROCKET SCREW-AH M8X26 WS=6
54510052100
Unavailable
11
washer DIN 125 A -8.4
0125080003
Unavailable
12
Self locking nut M8 10.9
54310086200
Unavailable
13
SPECIAL SCREW M8X26 WS=10
59001037000
Unavailable
15
HH SCREW DIN0931-M 8X80
0931080803
Unavailable
20
CHAIN ROLL D=30MM
50203053000
Unavailable
21
BUSHING 8.2 X 12 X 6
74003021000
Unavailable
22
Grooved ball bearing 608 2RS C
0625006087
Unavailable
23
LOCK WASHER 8MM
36003014000
Unavailable
25
HH COLLAR SCREW M 8X35 WS=10
0015080353
Unavailable
28
BOLT FOR FOOTREST 9,8 X 50
54603044000
Unavailable
29
FOOTREST SPRING L/S & R/S
54603041000
Unavailable
30
washer DIN 125 A 10.5
0125100003
Unavailable
31
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
40
PLUG-IN CAP SW14 99
50303002182
Unavailable
1
FRAME 65 SX MD2R 2002
46103001000
Unavailable
2
SUB FRAME 65 SX 2002
46103002044
Unavailable
3
METAMOLL FOR BATTERY BRACKET
58711054050
Unavailable
4
PLUG 37MM
54606004000
Unavailable
5
EJOT PT SCREW K60X20 WS=6
0017060203
Unavailable
6
FOOT PED L/S SILVER '98
5460304010090
Unavailable
0
FOOT PED R/S SILVER '98
5460314010090
Unavailable
