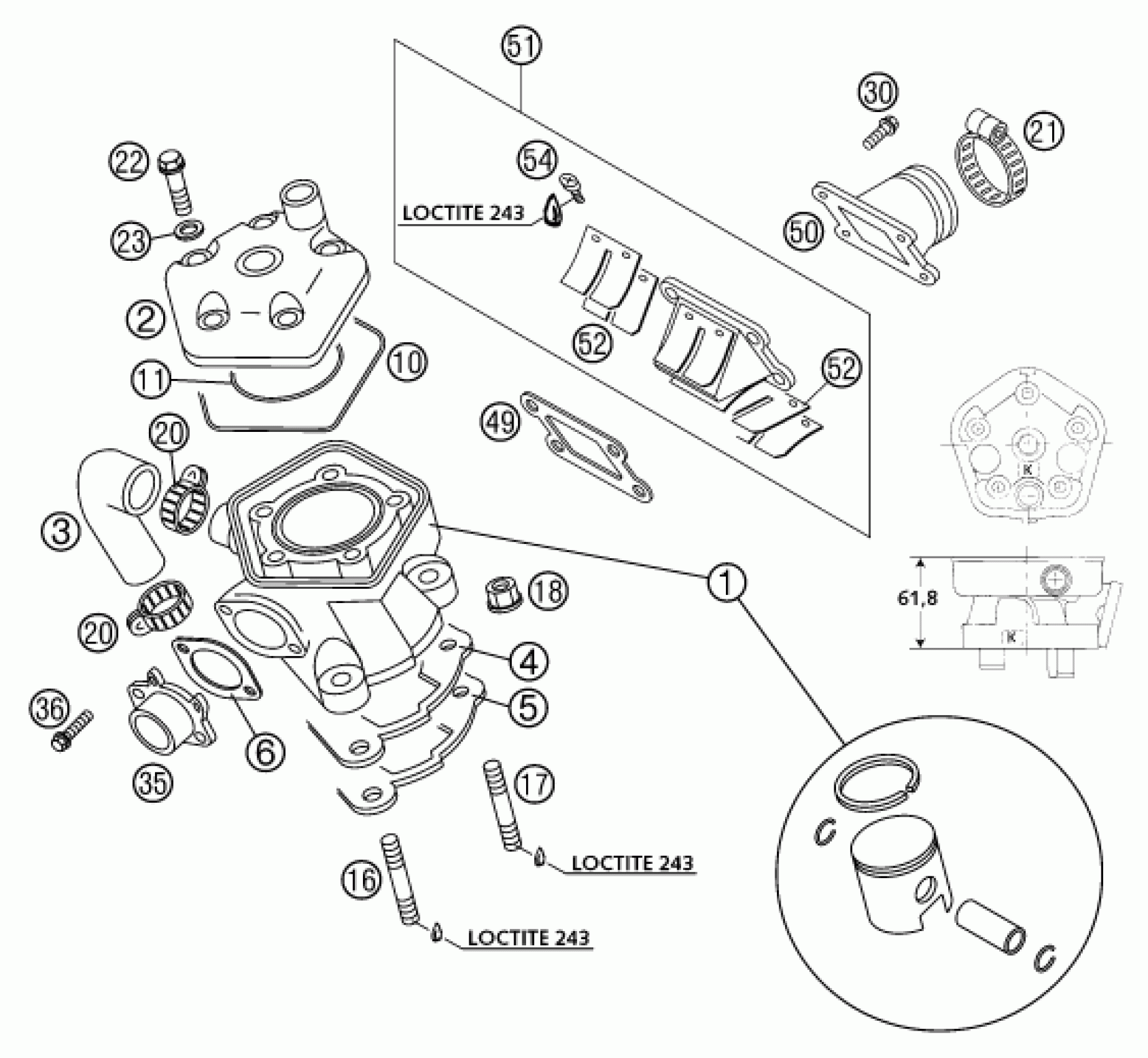

KTM 65 SX 2002 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER W.PISTON 45MM ''K''

46030005500

Unavailable

2

CYLINDERHEAD ''K'' 65CCM '99

46030006600

Unavailable

3

PRE-FORM.HOSE CYL.-CLUTCH COV.

46035027000

Unavailable

4

CYLINDER BASE GASKET 0,5 MM

46030035050

Unavailable

5

CYLINDER BASE GASKET 0,2 MM

46030035020

Unavailable

6

EXHAUST GASKET 60/65 CCM

46030046000

Unavailable

10

O-RING 94,97X1,78

46030037000

Unavailable

11

O-RING 53,7X1,78 VITON

46030036000

Unavailable

16

STUD M8X41

46030043000

Unavailable

17

STUD M8X44

46030043100

Unavailable

18

flanged nut M8 WS10

46030045000

Unavailable

20

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

21

HOSE CLAMP 32-52MM D5

31001027000

Unavailable

22

CYLINDERHEADSCR.HH-M7X33 2001

46030079000

Unavailable

23

CU-SEAL RING 7,3 X 12 X 0,5

50230032010

Unavailable

30

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

35

EXHAUST FLANGE 65 SX 2002

46036040100

Unavailable

36

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

49

INTAKE VALVE GASKET

46030049000

Unavailable

50

INTAKE FLANGE

46030050000

Unavailable

51

MEMBRANE HOUSING CPL.50LC 20

45130051044

Unavailable

52

MEMBRANE LOOSE 60/65 CCM

46030052000

Unavailable

54

FLAT HEAD SCREW DIN7985-M 3X6

0985030063

Unavailable
