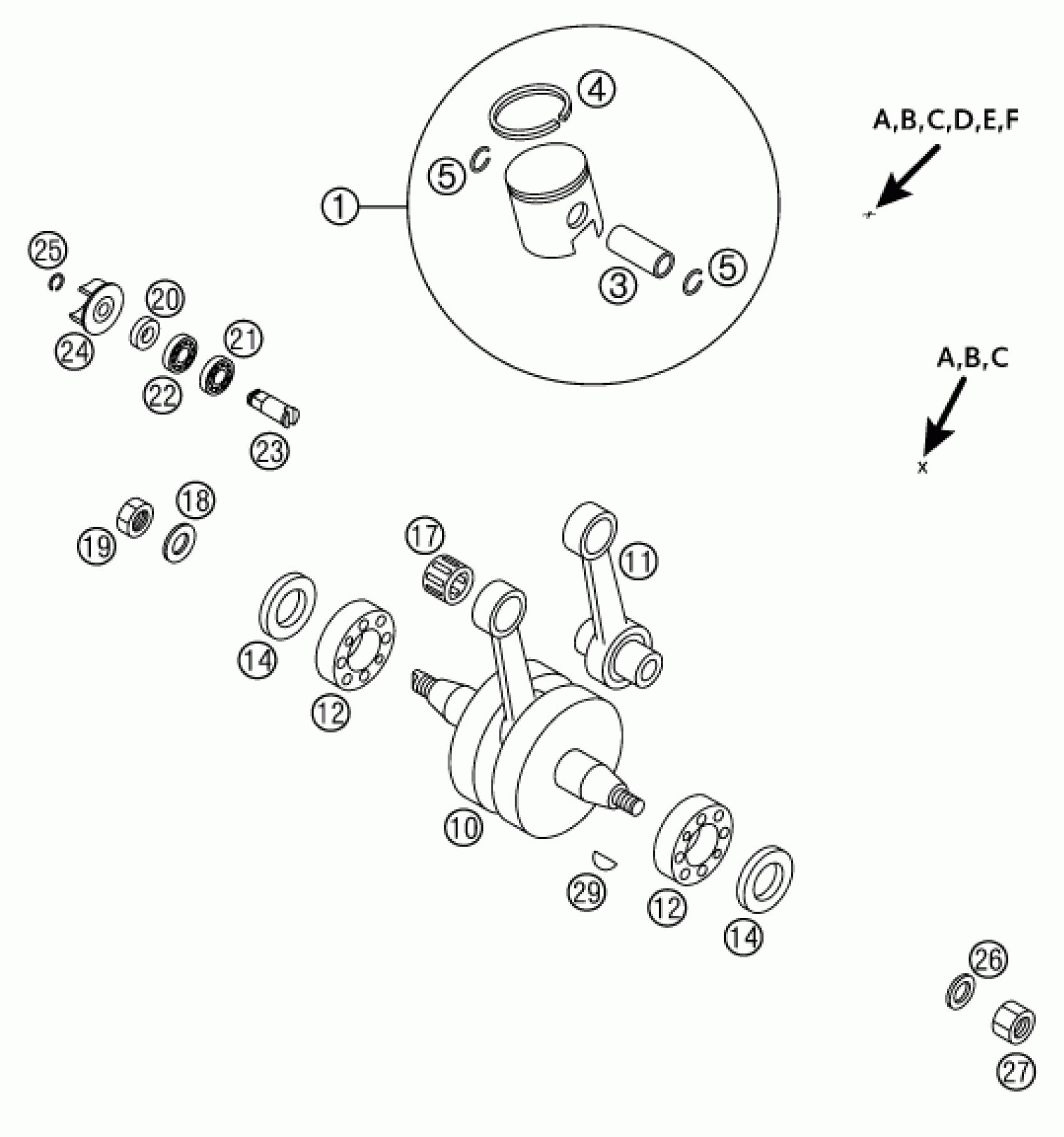

KTM 65 SX 2002 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

PISTON CPL. 45MM ''A/B'' 65'

46030007500 A

Unavailable

1

PISTON CPL. 45MM ''B'' 65'

46030007500 B

Unavailable

1

PISTON CPL. 45MM ''C/D'' 65'

46030007500 C

Unavailable

1

PISTON CPL. 45MM ''D'' 65'

46030007500 D

Unavailable

1

PISTON CPL. 45MM ''E/F'' 65'

46030007500 E

Unavailable

1

PISTON CPL. 45MM ''F'' 65'

46030007500 F

Unavailable

3

PISTON PIN 12X38

46030033000

Unavailable

4

PISTON RING 45MM 65CCM

46030030500

Unavailable

5

CIRCLIP 12X1

46030074000

Unavailable

10

CRANKSHAFT CPL. STROKE40MM'99

46030018100

Unavailable

11

CONN. ROD REPAIR SET 60/65 CCM

46030015000

Unavailable

12

GROOVED BALL BEAR.20X52X15 NTN

46030082200

Unavailable

14

SHAFT SEAL RING 20X35X6

46030077000

Unavailable

17

NEEDLE BEAR.PISTONPIN 12X15X17

46030034000

Unavailable

18

LOCKING WASHER 14X20X1

46030078100

Unavailable

19

HH-NUT M14X1,25X5 '99

46030029100

Unavailable

20

SHAFT SEAL RING 10X18X4

46035056100

Unavailable

21

WATER PUMP BEARING 10X19X5

46035057000

Unavailable

22

WA.PU.BEAR. 10X19X5 DOUBLELIP

46035058000

Unavailable

23

WATER PUMP SHAFT 60/65 '99

46035054000

Unavailable

24

WATER PUMP WHEEL 60/65 '99

46035055100

Unavailable

25

CIRCLIP DIN0471- 9X1

0471090010

Unavailable

26

SPRING RING DIN0127-B10

0127100003

Unavailable

27

HH NUT M10X1,25X17 WS=15

46030028000

Unavailable

29

WOODRUFF KEY 3X3,7X9,7

46030075000

Unavailable
