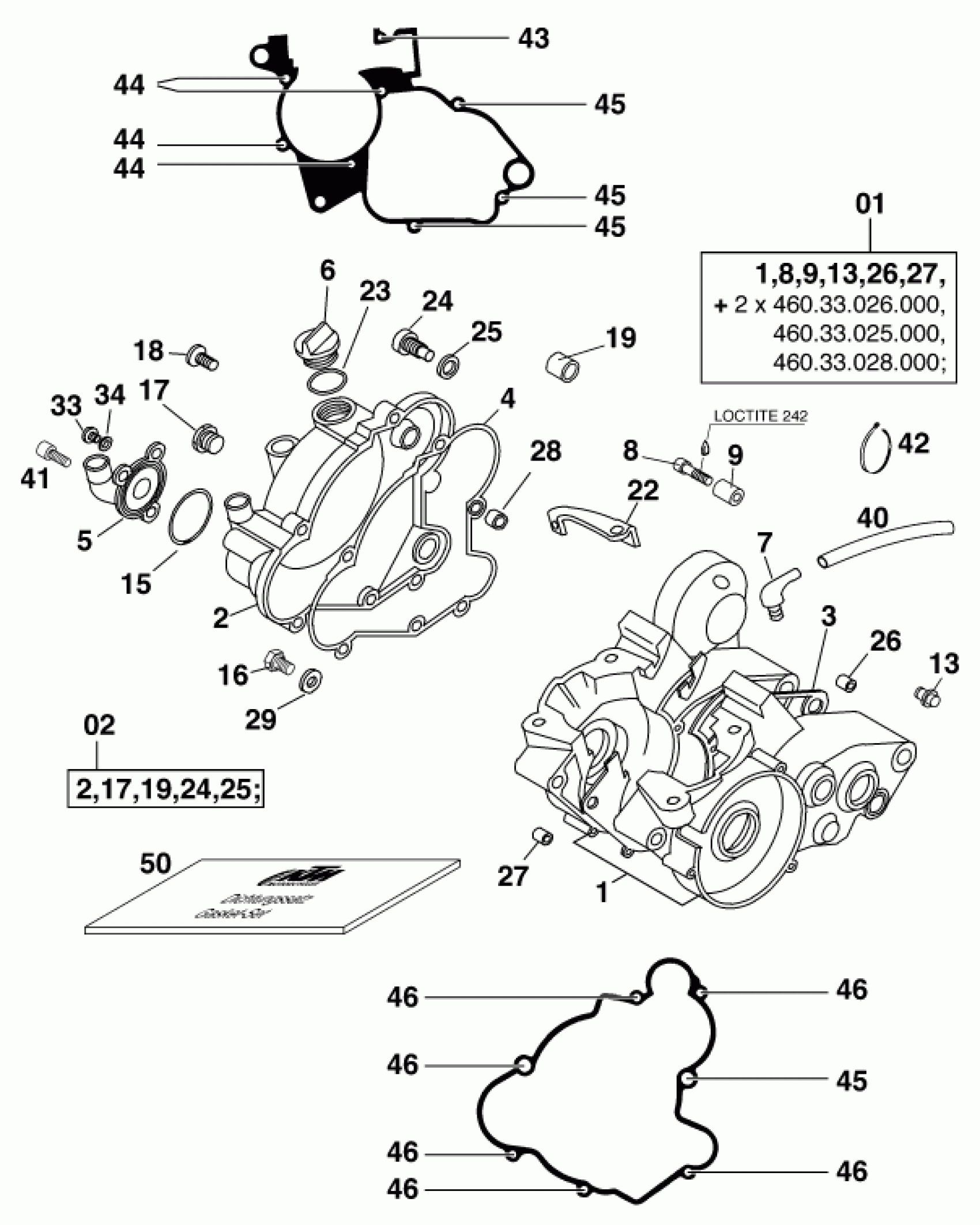

KTM 65 SX 2001 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL.W.TRAN.BEAR'98

46030000044

Unavailable

2

CLUTCH COVER CPL. 60/65 '99

46030001100

Unavailable

3

ENGINE CASE GASKET 60/65

46030039000

Unavailable

4

CLUTCH COVER GASKET INSIDE

46030025000

Unavailable

5

WATER PUMP COVER 60/65 '98

46035052000

Unavailable

6

PLUG M 24X3

58030020000

Unavailable

7

ANGLE PIECE 90 DEGREE M10X1

51030022000

Unavailable

15

O-RING

46035053000

Unavailable

16

OIL DRAIN PLUG M10 WS=14

46030021000

Unavailable

17

LENS TYPE GN 540

49030095000

Unavailable

18

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

22

SUPPORT FOR CLUTCH CABLE

46032059000

Unavailable

23

O-RING 16,00X3,00 NBR 70

0770160030

Unavailable

26

DOWEL 17X15

46030023100

Unavailable

27

DOWEL 12X14,5

46030023000

Unavailable

28

DOWEL 9X15

46030024000

Unavailable

29

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

33

PLUG M6X7

46035061000

Unavailable

34

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

40

PVC-HOSE 5 X 8 MM

31007007001

Unavailable

41

AH SCREW DIN0912-M 6X16

0912060163

Unavailable

42

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

43

AH SCREW DIN0912-M 6X40 A2

0912060404

Unavailable

44

AH SCREW DIN0912-M 6X45

0912060453

Unavailable

45

AH SCREW DIN0912-M 6X30

0912060303

Unavailable

46

AH SCREW DIN0912-M 6X25

0912060253

Unavailable

50

GASKET SET CPL. 60/65 CCM

46030099000

Unavailable
