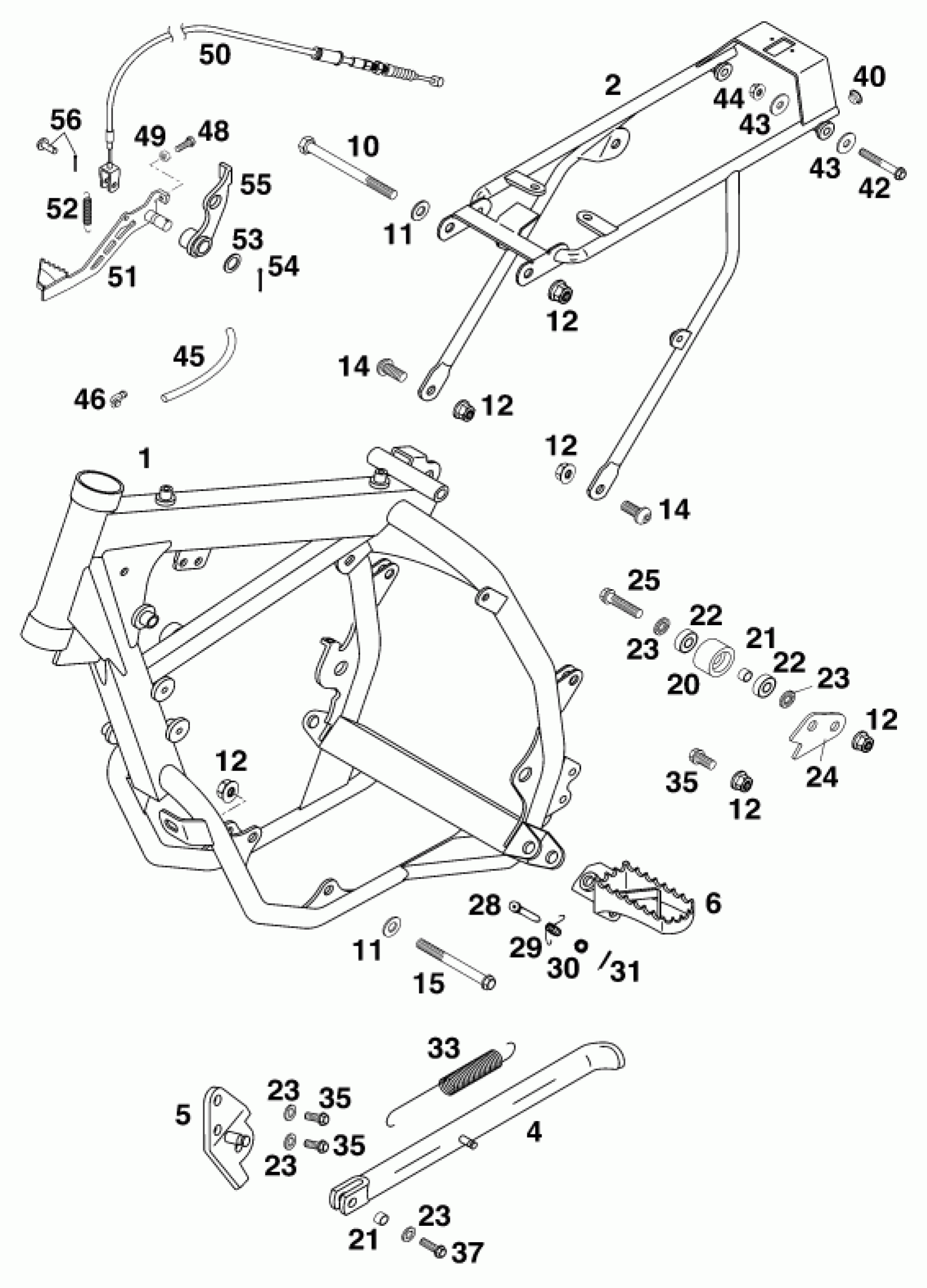

KTM 65 SX <1999> FRAME Diagram
#
0
FOOT REST R/S SILVER '98
5460314000090
Unavailable
1
FRAME 60/65 SX '99
46003001100
Unavailable
2
SUB FRAME 60/65 SX '98
46003002000
Unavailable
4
SIDE STAND L=315MM 60/65 SX
46003023000
Unavailable
5
SIDE STAND BRACKET 60/65 SX'99
46003024100
Unavailable
6
FOOT REST L/S SILVER
5460304000090
Unavailable
10
HH SCREW DIN0931-M 8X100
0931081003
Unavailable
11
washer DIN 125 A -8.4
0125080003
Unavailable
12
54310086000
Unavailable
14
AH OVAL H.SCREW DIN0170-M 8X20
0107080203
Unavailable
15
HH SCREW DIN0931-M 8X80
0931080803
Unavailable
20
CHAIN ROLL D=30MM
50203053000
Unavailable
21
BUSHING 8.2 X 12 X 6
74003021000
Unavailable
22
Grooved ball bearing 608 2RS C
0625006087
Unavailable
23
LOCK WASHER 8MM
36003014000
Unavailable
24
BRACKET FOR CHAIN ROLL 60SX'99
46003062000
Unavailable
25
HH COLLAR SCREW M 8X35 WS=10
0015080353
Unavailable
28
BOLT FOR FOOTREST 9,8 X 50
54603044000
Unavailable
29
FOOTREST SPRING L/S & R/S
54603041000
Unavailable
30
washer DIN 125 A -8.4
0125080003
Unavailable
31
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
33
SIDESTAND SPRING LONG
51003021000
Unavailable
35
HH COLLAR SCREW M 8X16 WS=10
0015080163
Unavailable
37
HH COLLAR SCREW M 8X20 WS=10
0015080203
Unavailable
40
Plug SFL16
50210086000
Unavailable
42
HH COLLAR SCREW M 6X45 WS=8
0015060453
Unavailable
43
Washer DIN9021-A 6.4
0021060003
Unavailable
44
SELF LOCKING NUT M6
56509064000
Unavailable
45
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
46
ANGLE PIECE '97
50303089000
Unavailable
48
HH SCREW DIN0933-M 5X16
0933050163
Unavailable
49
HEXAGON NUT DIN0934-M 5
0934050003
Unavailable
50
BRAKE CABLE REAR 60/65 SX '98
46013070000
Unavailable
51
BRAKE LEVER CPL. 60/65 SX '99
46003060100
Unavailable
52
BRAKE LEVER SPRING 50 SXR '97
45003062000
Unavailable
53
SHIM WASHER DIN0988-12X18X0,50
0988121805
Unavailable
54
* PIN DIN0094-2,0X20 STEEL
0094020200
Unavailable
55
FOOTBRAKE CARRIER METAL SHEET
46003061000
Unavailable
56
BOLT WITH PIN
31011093000
Unavailable
