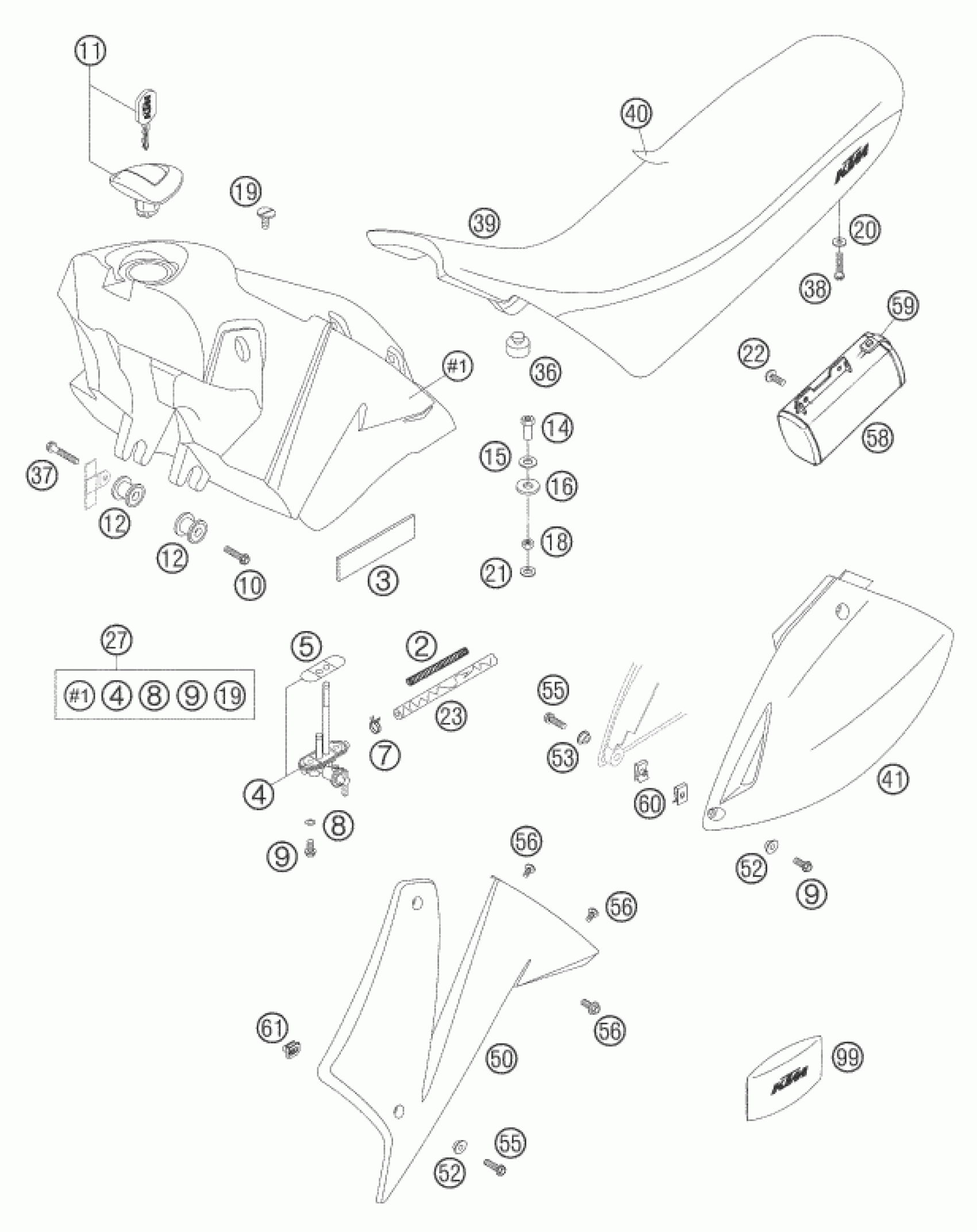

KTM 640 LC4 ENDURO ORANGE 2006 TANK, SEAT Diagram

#

Description
Price

2

PRESSURE SPRING 0,9MM

58036006100

Unavailable

3

RUBBER STRIP 85X25X3 MM

54601097000

Unavailable

4

FUEL COCK CPL.MIKUNI CK-69 '96

51107004000

Unavailable

5

GASKET FUEL COCK MIKUNI

58307106100

Unavailable

7

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

8

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

9

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

10

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

11

TANK PLUG LC4 USA '99

58407008100

Unavailable

12

TANK BUSHING CPL. 12 X 34 X 25

58307113250

Unavailable

14

SPECIAL NUT M8

58307014000

Unavailable

15

WASHER 10,5 X 21 X 3

31004001100

Unavailable

16

INSOLATE WASHER 12X28X3

51005067100

Unavailable

18

Hexagon nut DIN934 M8

0934080003

Unavailable

19

SCREW FOR SEAT M6X11,5/8

58407011100

Unavailable

20

WASHER 6,2X18X2

50232050000

Unavailable

21

washer DIN 125 A -8.4

0125080003

Unavailable

22

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

23

HOSE ID 7,5 PER METER

54435024001

Unavailable

27

FUEL TANK 11LI.CPL.LC4 BLACK

58407013300

Unavailable

36

PLUG FOR SEAT

58407040060

Unavailable

37

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

38

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

39

SEAT STANDARD 2000

58407040800

Unavailable

40

SEAT COVER 2000

58407040850

Unavailable

41

SIDE COVER L/S ORANGE LC4'99

5840804100004

Unavailable

41

SIDE COVER R/S ORANGE LC4'99

5840804210004

Unavailable

50

SPOILER L/S ORANGE LC4 '98

5840805000004

Unavailable

50

SPOILER R/S ORANGE LC4 '98

5840805100004

Unavailable

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

53

BUSH FOR SPOILER 6X11X16X7,5

50308053000

Unavailable

55

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

56

HH COLLAR SCREW M 6X13 WS=8

0014060133

Unavailable

58

TOOL BOX CPL. '92

58012058000

Unavailable

59

RUBBER FOR TOOL BOX '92

58012058050

Unavailable

60

clip nut M6

54603048100

Unavailable

61

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

99

ORIGINAL EQUIPMENT TOOL KIT

58329099000

Unavailable
