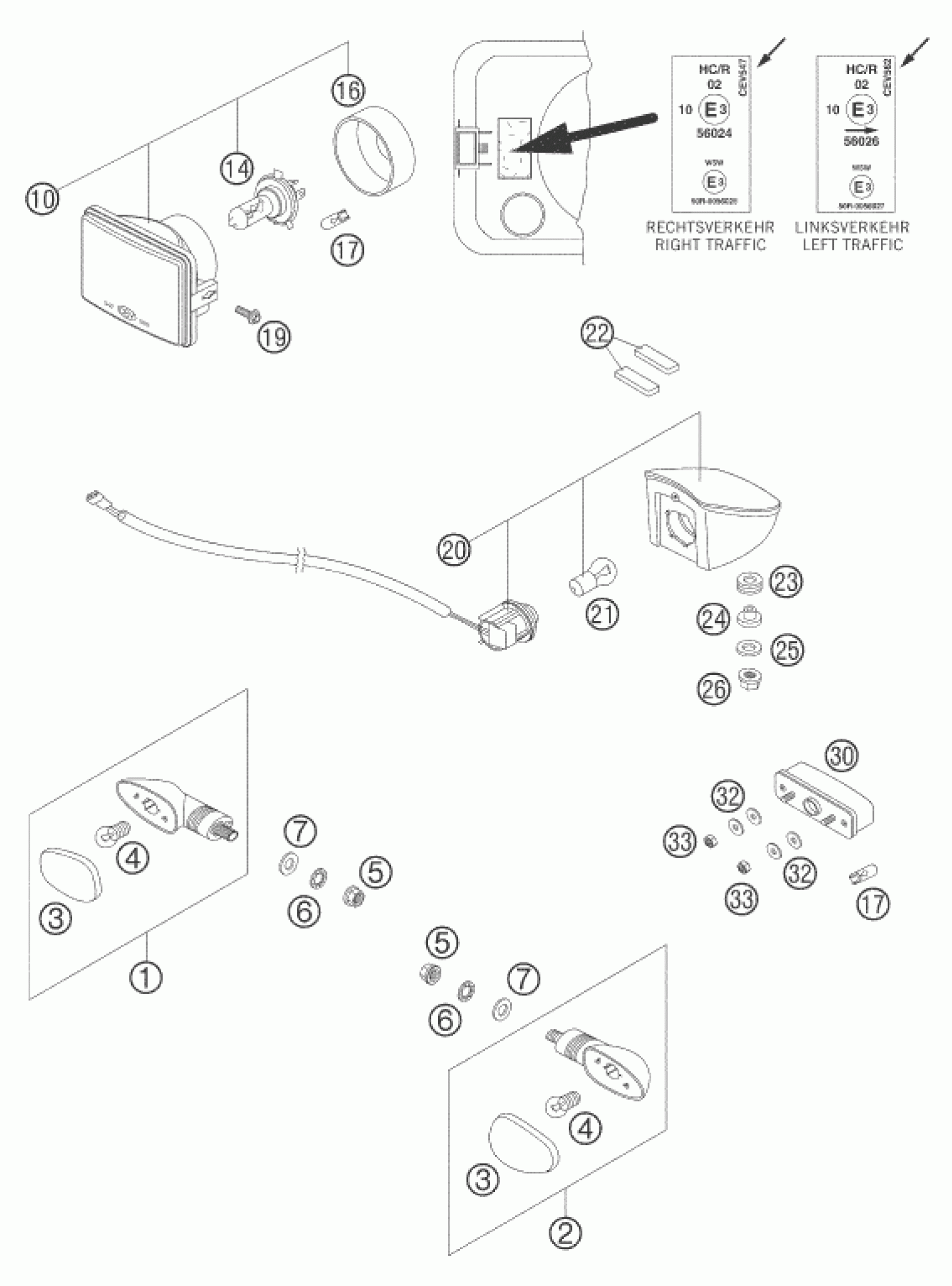

KTM 640 LC4 ENDURO ORANGE 2006 LIGHTING SYSTEM Diagram

#

Description
Price

5

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

2

FLASHER CPL.FRONT L/S REAR R/S

5841402500030

Unavailable

4

BULB 12V 10W (BA15S)

44111015100

Unavailable

7

washer DIN 125 A 10.5

0125100003

Unavailable

10

HEAD LIGHT CEV 547 RIGHT/S. H4

58414001100

Unavailable

14

BULB H4 12V 60/55W (P43T)

57111038000

Unavailable

16

RUBBER CAP

50211537000

Unavailable

17

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

19

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

20

REAR LIGHT CPL. LC4 2001

58414040100

Unavailable

21

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

Unavailable

22

METAMOLL FOR REARLIGHT 99

58414040051

Unavailable

23

RUBBER SLEEVE D=12MM

41001052000

Unavailable

24

REAR LIGHT BUSHING

58714048000

Unavailable

25

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

Unavailable

26

Self locking nut M6 - 10

56509064100

Unavailable

30

LICENSE-PLATE ILLUMINATION '98

58414047000

Unavailable

32

washer DIN 9021 A - 5.3

0021050003

Unavailable

33

Self locking nut DIN 985 M5

0985050003

Unavailable

1

FLASHER CPL.FRONT R/S REAR L/S

5841402600030

Unavailable

3

FLASHER LENS L/S & R/S '98

58414028000

Unavailable

6

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable
