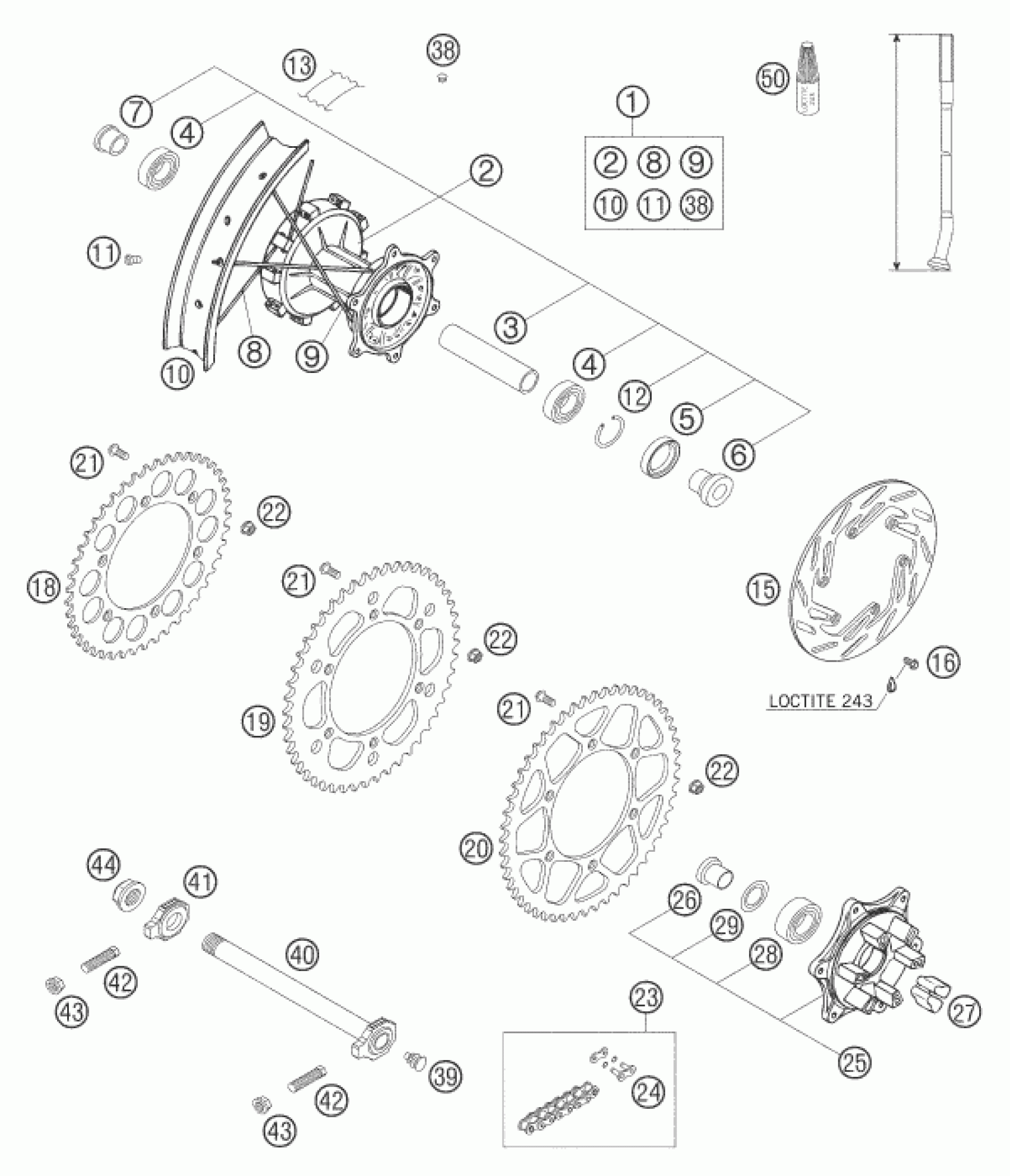

KTM 640 LC4 ENDURO ORANGE 2005 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL. DAMPED 2,5X18'

58410001544

Unavailable

2

REAR WHEEL HUB DAMPED CPL.'01

58410010044

Unavailable

3

BUSHING SPACER TUBE L=98,3MM

58410011000

Unavailable

4

Grooved ball bear. 6205-2RSHC3

0625062052

Unavailable

5

SHAFT SEAL RING 32X52X7 B

0760325272

Unavailable

6

BUSHING FOR HUB

58410016000

Unavailable

7

BUSHING FOR REAR DAMPED HUB

54610416300

Unavailable

8

SPOKE M5X223-10G 18''

54610471000

Unavailable

9

SPOKE M5X197-10G 18'' DDE

50310071197

Unavailable

10

REAR RIM 2,50X18'' DID

58010470100

Unavailable

11

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

Unavailable

12

CIRCLIP DIN0472-52X2

0472052200

Unavailable

13

RIM BAND REAR 2MM 2003

58410073200

Unavailable

15

REAR BRAKE DISK 220MM COUNTERS

58010060600

Unavailable

16

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

18

REAR SPROCKET 38-T

58310051038

Unavailable

18

REAR SPROCKET 42-T

58310051042

Unavailable

18

REAR SPROCKET 40-T

58310151040

Unavailable

18

REAR SPROCKET 45-T

58310151045

Unavailable

19

REAR SPROCKET 48-T

58310151048

Unavailable

20

REAR SPROCKET 50-T

58310151050

Unavailable

20

REAR SPROCKET 52-T

58310151052

Unavailable

21

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

22

Self locking nut M8 10.9

54310086200

Unavailable

23

CHAIN Z-RING 5/8X1/4''

50310800118

Unavailable

24

CONNECTING LINK F. 50310800118

50310366000

Unavailable

25

SPROCKET SUPPORT CPL. 03

58310050144

Unavailable

26

BUSH. F.SPROCKETSUPPORT L=25MM

54610417300

Unavailable

27

Rubber damping block 91

54610459000

Unavailable

28

GR. BALL BEARING 3205B-2RSRTNG

0625032057

Unavailable

29

SEAL WASHER 3205 AV

54610018000

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

Unavailable

40

WH. SPINDLE RE. CPL.265MM 00

50310085044

Unavailable

41

Chain tension adjuster, right

50310084000

Unavailable

42

SPEC. SCREW M10X1,25X40 WS=10

50304040000

Unavailable

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

44

Hexagon nut M20x1.5

50310099000

Unavailable

50

LOCTITE 243 BLUE 5 ML

6899785

Unavailable
