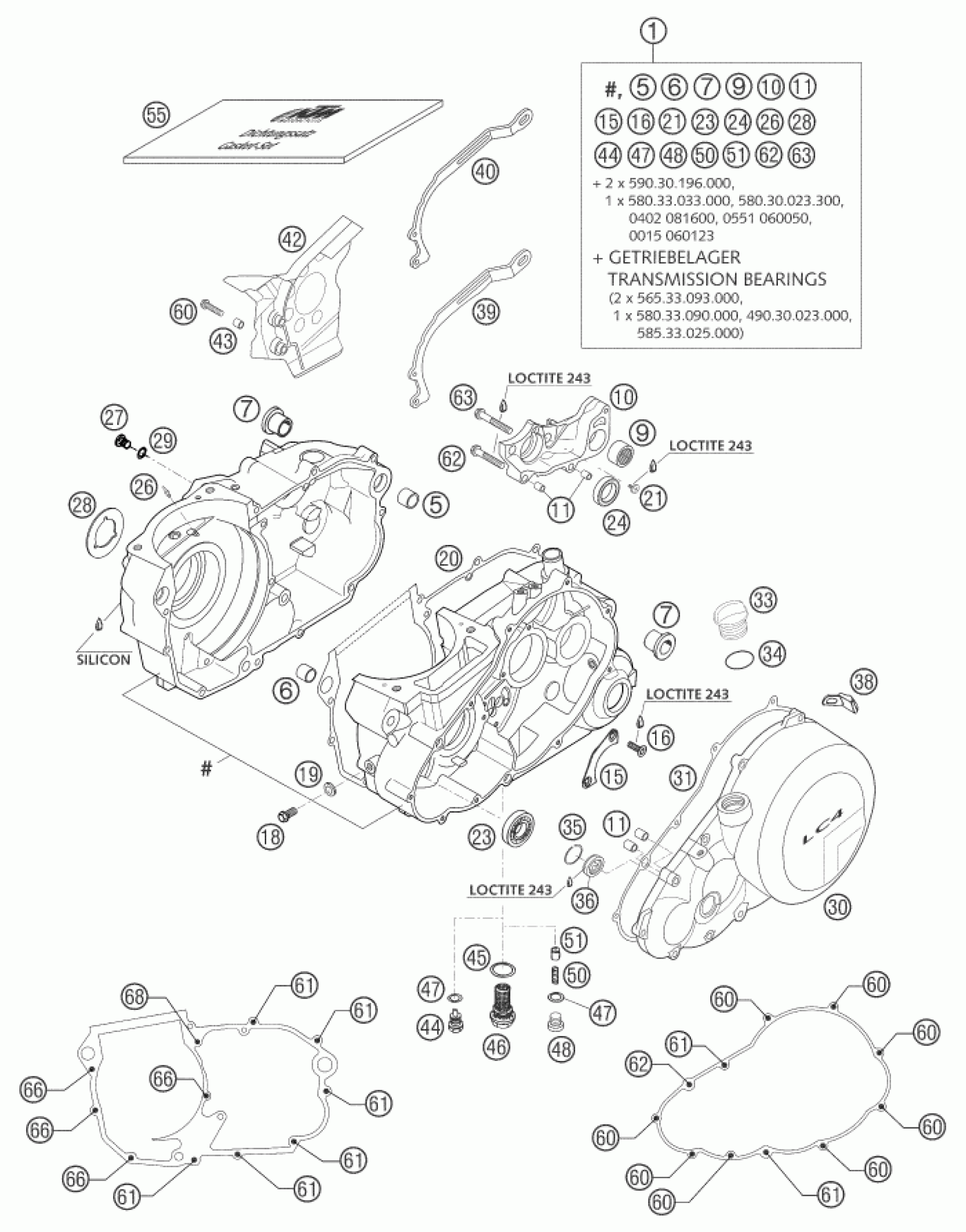

KTM 640 LC4 ENDURO ORANGE 2004 ENGINE CASE Diagram

#

Description
Price

1

ENG CASE CPL.W.BEAR. LC4 03

5843000024423

Unavailable

5

DOWEL 19 X15,1X12

50130027000

Unavailable

6

DOWEL 17 X 13 X 12

51030026100

Unavailable

7

CRANK CASE BUSH

50130010000

Unavailable

9

NEEDLE BEARING HK 2216

58033097000

Unavailable

10

SHIFT MECHANISM SUPPORT LC4'94

58330011000

Unavailable

11

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

15

RETAINING PLATE

56530017000

Unavailable

16

FL.HEAD SCR.DIN7991-M6X16

0991060166

Unavailable

18

HH COLLAR SCREW M 8X16 WS=10

0015080163

Unavailable

19

SEAL RING CU DIN7603- 8X12X1

0603082121

Unavailable

20

ENGI.CASE GASKET POLY. 0,43

58530039300

Unavailable

21

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

Unavailable

23

CYLIND.ROLL.NJ 203 ECP/C3 2001

0412174012

Unavailable

24

BALL BEARING 61805 C3

0625618050

Unavailable

26

OIL JET 80 M6X0,75 SW8 03

60030064080

Unavailable

27

OIL DRAIN PLUG M10X1,5 AH-WS=6

49030029000

Unavailable

28

STOP DISK 33 X 58 X 1,5

58440091000

Unavailable

29

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

30

CLUTCH COVER CPL. GREY 03

5833010124423

Unavailable

31

CLUTCH COVER GASKET 2001

58530025000

Unavailable

33

PLUG M 24X3

58030020000

Unavailable

34

O-RING 19,00X3,00 NBR

0770191015

Unavailable

35

CIRCLIP OIL LEVEL GLASS 03

61030019050

Unavailable

36

OIL LEVEL GLASS G 1777 Y

59030019000

Unavailable

38

BUMP RUBBER

58333041000

Unavailable

39

CHA.DAMPERSHEET 15/16T 92MM 03

58430047200

Unavailable

40

CHAIN DAMPERSHEET 17T 92MM 03

58730047100

Unavailable

42

* SPROCKET COVER BLACK '96

58430060000

Unavailable

43

BUSHING 6,5X8X11

54613038150

Unavailable

44

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

45

CU-SEAL RING DIN7603-22X27X2

58038017100

Unavailable

46

OIL DRAIN PLUG M22X1,5

58038019100

Unavailable

47

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

48

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

50

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

51

VALVE PISTON D=10MM

58038028000

Unavailable

55

GASKET SET LC4 2003

58430099200

Unavailable

60

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

61

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

62

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

63

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

66

HH COLLAR SCREW M 6X55 WS=8

0015060553

Unavailable

68

HH COLLAR SCREW M 6X65 WS=8

0015060653

Unavailable

71

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

71

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable
