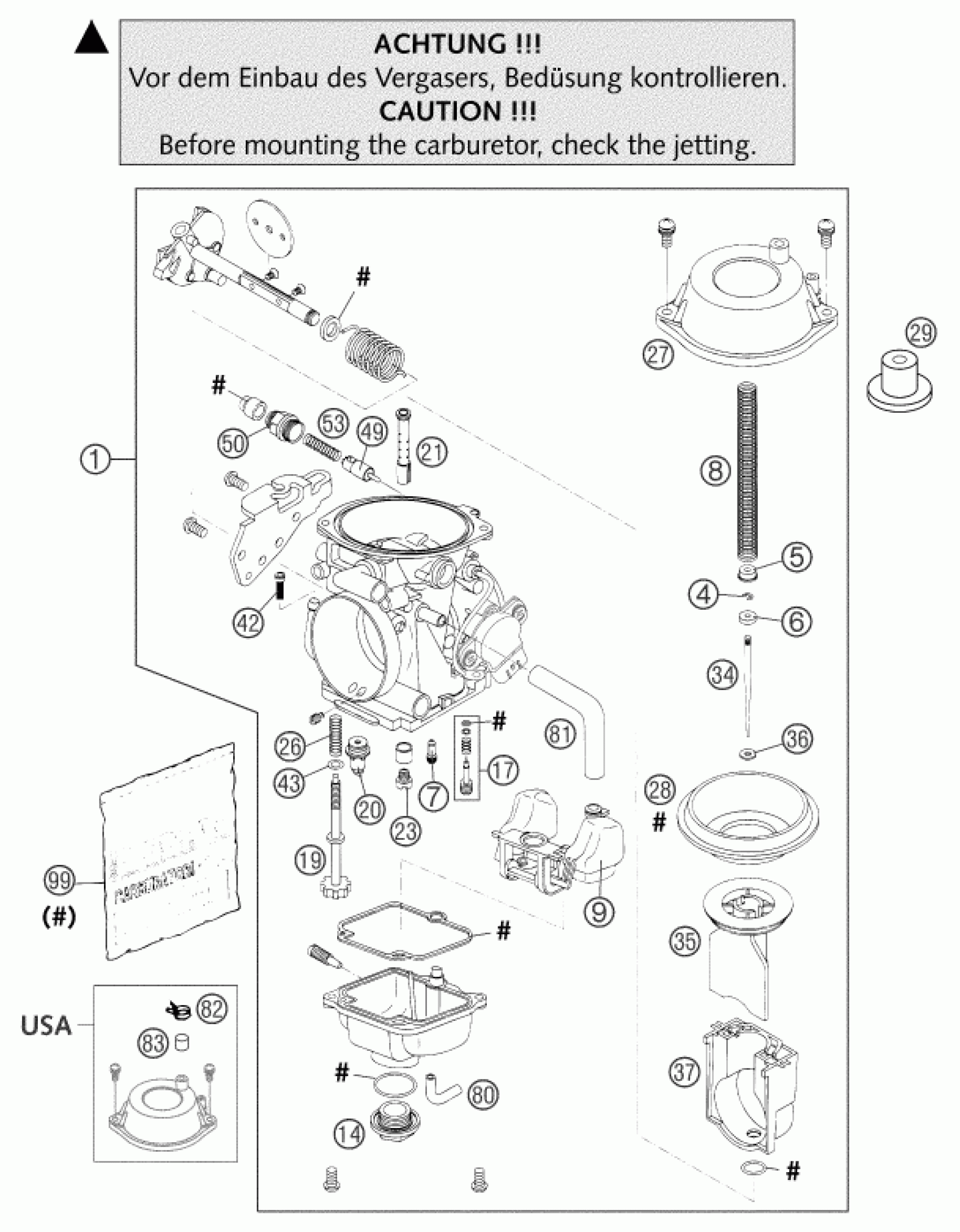

KTM 640 LC4 ENDURO ORANGE 2004 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR MIKUNI BST40-266 03

58431001600

Unavailable

4

CIRCLIP

58431045000

Unavailable

5

SPRING RING

58431031000

Unavailable

6

PLASTIC RING

58431032000

Unavailable

7

IDLING JET 45

58431007045

Unavailable

7

IDLING GET 47,5

58431007047

Unavailable

8

THROTTLE VALVE SPRING

58431030000

Unavailable

9

FLOAT 6,1 GRAMM MIKUNI

58431009000

Unavailable

14

SCREW PLUG FLOAT CHAMBER

58431014000

Unavailable

17

ADJUST SCREW CPL.

58431017000

Unavailable

19

ADJUSTER IDLING SPEED

58431019000

Unavailable

20

NEEDLE VALVE 2,8MM

58431020000

Unavailable

21

NEEDLE JET 689 X-6

58431021689

Unavailable

23

MAIN JET 140

58431023140

Unavailable

23

MAIN JET 142,5

58431023142

Unavailable

23

MAIN JET 145

58431023145

Unavailable

23

MAIN JET 147,5

58431023147

Unavailable

23

MAIN JET 150

58431023150

Unavailable

23

MAIN JET 152,5

58431023152

Unavailable

23

MAIN JET 155

58431023155

Unavailable

23

MAIN JET 157,5

58431023157

Unavailable

23

MAIN JET 160

58431023160

Unavailable

23

MAIN JET 162,5

58431023162

Unavailable

23

MAIN JET 165

58431023165

Unavailable

23

MAIN JET 167,5

58431023167

Unavailable

23

MAIN JET 170

58431023170

Unavailable

23

MAIN JET 172,5

58431023172

Unavailable

23

MAIN JET 175

58431023175

Unavailable

23

MAIN JET 177,5

58431023177

Unavailable

23

MAIN JET 180

58431023180

Unavailable

26

SPRING FOR ADJUSTER

58431026000

Unavailable

27

DIAPHRAGM COVER MIKUNI

58431027000

Unavailable

28

DIAPHRAGM FOR THROTTLE VALVE

58431028000

Unavailable

29

SLIDE STOP L=17MM MIKUNI

58331029017

Unavailable

34

JET NEEDLE 6G5

584310346G5

Unavailable

35

THROTTLE VALVE ''1''

58431035000

Unavailable

36

SHIM JET NEEDLE

58431132000

Unavailable

37

THROTTLE VALVE GUIDE PLASTIC

58431037000

Unavailable

42

FUEL SCREEN MIKUNI

58431042000

Unavailable

43

PACKING RING FOR ADJUSTER

58431043000

Unavailable

49

STARTING PISTON MIKUNI

58431049000

Unavailable

50

SCREW M12 STARTSYSTEMN

58431050000

Unavailable

53

SPRING 22,5MM FOR START.PISTON

58431053000

Unavailable

80

PVC-HOSE 3X5MM

52031137001

Unavailable

81

HOSE ID 7,5 PER METER

54435024001

Unavailable

82

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

83

PLUG CAP FOR EPC CONNECTION

57931001010

Unavailable

99

GASKET SET MIKUNI BST40-225

58431099000

Unavailable
