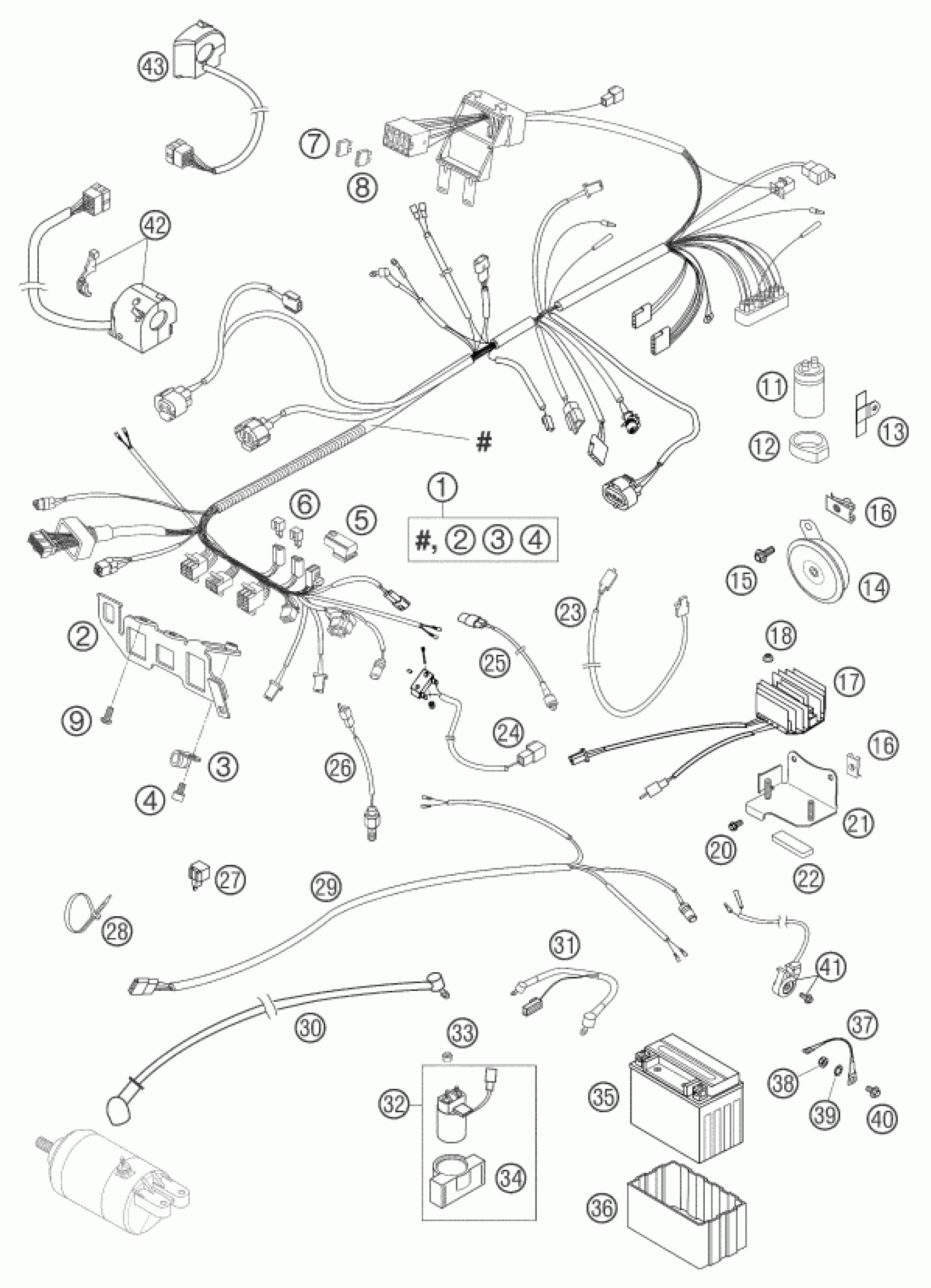

KTM 640 LC4 ENDURO BLACK 12L 03 <2003> WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS LC4 03

58411175400

Unavailable

2

SUPPORT BRACKET LC4 03

58411083200

Unavailable

3

CLAMP RSGU 15/12

49007439000

Unavailable

4

SHCS DIN 912 M5x8

0912050083

Unavailable

5

STARTER RELAY '96

58411057000

Unavailable

6

DIODE S3H-15 97

58411096100

Unavailable

7

Plug-in fuse, big 10A

58011109110

Unavailable

8

Plug-in fuse, big 20A

58011109120

Unavailable

9

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

11

CONDENSATOR 25V, 10.000 MF

49111435100

Unavailable

12

CAPACITOR BRACKET

54511048000

Unavailable

13

BRACKET FOR CAPACITOR

54611448000

Unavailable

14

DC HORN L.E.B. 03

50311060100

Unavailable

15

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

16

clip nut M6

54603048100

Unavailable

17

VOLT.REGULATOR-RECTIFIER 12V

58411034100

Unavailable

18

Self locking nut M6 - 10

56509064100

Unavailable

20

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

21

BATTERY BRACKET 03

58411055200

Unavailable

22

METAMOLL FOR REARLIGHT 99

58414040051

Unavailable

25

CLUTCH SWITCH 03

58411049100

Unavailable

26

BRAKE LIGHT SWITCH REAR '98

50311051100

Unavailable

27

FLASHER UNIT 97

44611207200

Unavailable

23

BRAKE LIGHT SWITCH FRONT 2002

50311050100

Unavailable

24

BRAKE LIGHT SWITCH FRONT SM 03

58411050000

Unavailable

28

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

28

Cable tie 200/4.6mm black

44011076200

Unavailable

28

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

29

WIRING HARNESS REAR 03

58411176300

Unavailable

30

STARTERCABLE 700 MM '97

58411059100

Unavailable

31

BATTERY CABLE L= 200 MM 03

58411059350

Unavailable

32

STARTER RELAY WITH HOLD.RUBBER

58411058000

Unavailable

33

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

34

HOLD. RUBBER FOR STARTRELAY

58411058050

Unavailable

35

BATTERY 12V 8,6AH 03

58411053100

Unavailable

36

BATTERY COVER 96

58411053050

Unavailable

37

GROUND CABLE D=6MM L=140MM '97

58411097100

Unavailable

38

Self locking nut M6 - 10

56509064100

Unavailable

39

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

40

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

41

SIDE STAND SWITCH CPL. '97

58411045000

Unavailable

42

HEAD LIGHT SWITCH AD LC4 02

58411070100

Unavailable

43

START-STOP SWITCH AD 03

58411074200

Unavailable
