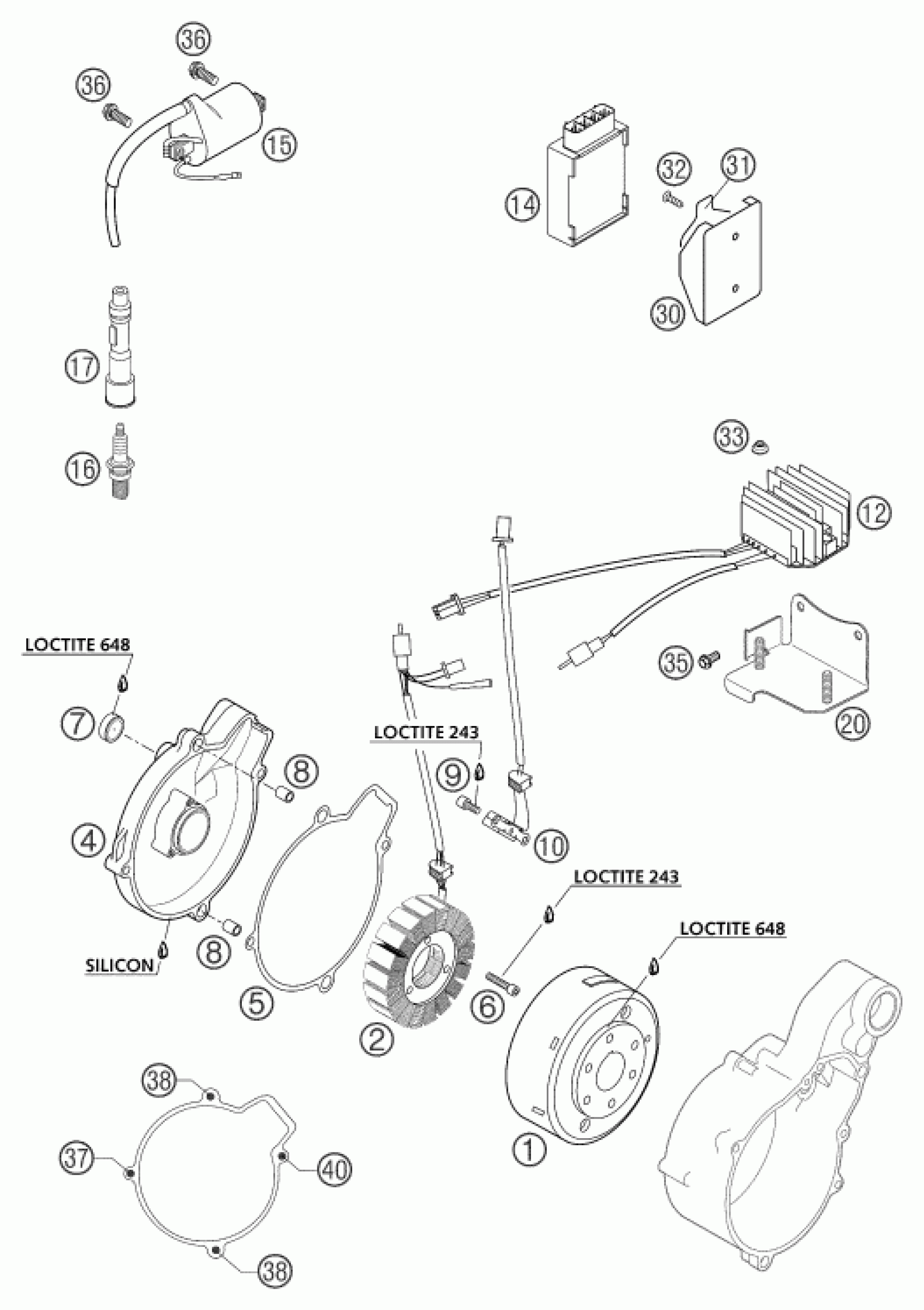

KTM 640 LC4 ENDURO BLACK 12L 03 <2003> IGNITION SYSTEM Diagram

#

Description
Price

1

FLYWHEEL KOKUSAN GP9128 '97

58439005100

Unavailable

2

STATOR KOKUSAN LOOSE '96

58439004000

Unavailable

4

IGNITION COVER CPL. GREY 03

5843000214423

Unavailable

5

IGNITION COVER GASKET '96

58430040000

Unavailable

6

AH SCREW DIN0912-M 5X25

0912050253

Unavailable

7

INSPECTION GLASS GW 20-7

58430095000

Unavailable

8

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

9

SHCS DIN 912 M5x8

0912050083

Unavailable

10

PULSER COIL

58439034000

Unavailable

12

VOLT.REGULATOR-RECTIFIER 12V

58411034100

Unavailable

14

DIGITALBOX CDI LC4 03

58439031500

Unavailable

15

Ignition coil

58439006000

Unavailable

16

SPARK PLUG NGK DCPR8E 03

59039093100

Unavailable

17

SPARK PLUG CONNECT. 03

58439090000

Unavailable

20

BATTERY BRACKET 03

58411055200

Unavailable

30

RUBBER BRACKET FOR DIGI-BOX 03

58439030200

Unavailable

31

SUPPORT FOR RUBBER BRACKET 03

58439030250

Unavailable

32

SCREW FOR PLASTIC D=5X18

0017050181

Unavailable

33

Self locking nut M6 - 10

56509064100

Unavailable

35

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

36

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

37

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

38

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

40

HH COLLAR SCREW M 6X80 WS=8

0015060803

Unavailable
