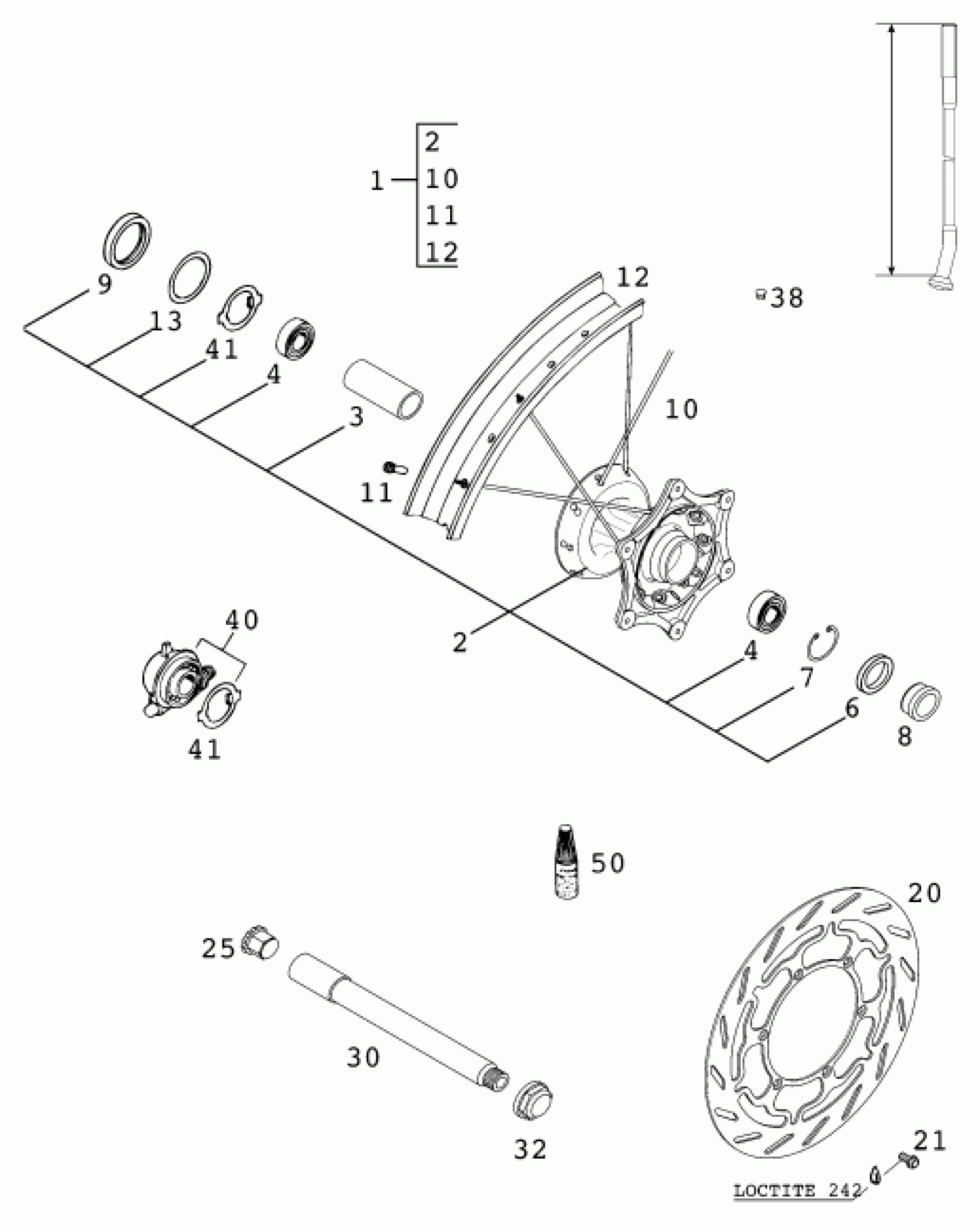

KTM 640 LC4-E SILBER 2000 FRONT WHEEL Diagram

#

Description
Price

1

FRONTWHEEL 1,6X21''DID EXC 200

50309001244

Unavailable

2

FRONT HUB CPL. EXC 2000

50309010144

Unavailable

3

BEAR. SPACERTUBE 20,5X25X63,3

50309011100

Unavailable

4

GR.BALL BEAR.6904 DDU2CG23S6NM

0625069047

Unavailable

6

SHAFT SEAL RING 26X37X7 ASL

0760263770

Unavailable

7

LOCK RING DIN0472-37X1,5

0472037154

Unavailable

8

SPACER BUSHING 20X26X27,8 2000

50309012000

Unavailable

9

SHAFT SEAL RING 40X52X7 B

0760405270

Unavailable

10

SPOKE M4,5X230-15G 21'' DDE

50309071230

Unavailable

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072000

Unavailable

12

FRONT RIM 1,6X21'' DID

54609070200

Unavailable

13

WASHER 40 X 52 X 0,15 '92

58111054000

Unavailable

20

BRAKE DISK FRONT D=300MM '96

58309060100

Unavailable

21

HH COLLAR SCREW M 6X12 W.LOC

0015060120

Unavailable

25

HANDLE FOR FRONT AXLE WS=21

50309081150

Unavailable

30

AXLE FRONT USD43 188,5MM

50309081100

Unavailable

32

COLLAR NUT FRONT M16X1,5 WS=27

50309082000

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

40

SPEEDOMETER DRIVE 748220 (3.0)

50314050000

Unavailable

41

DRIV.DOG F.SPEEDOM.DRIVE 2000

50314053000

Unavailable

50

LOCTITE 243 BLUE 5 ML

6899785

Unavailable
