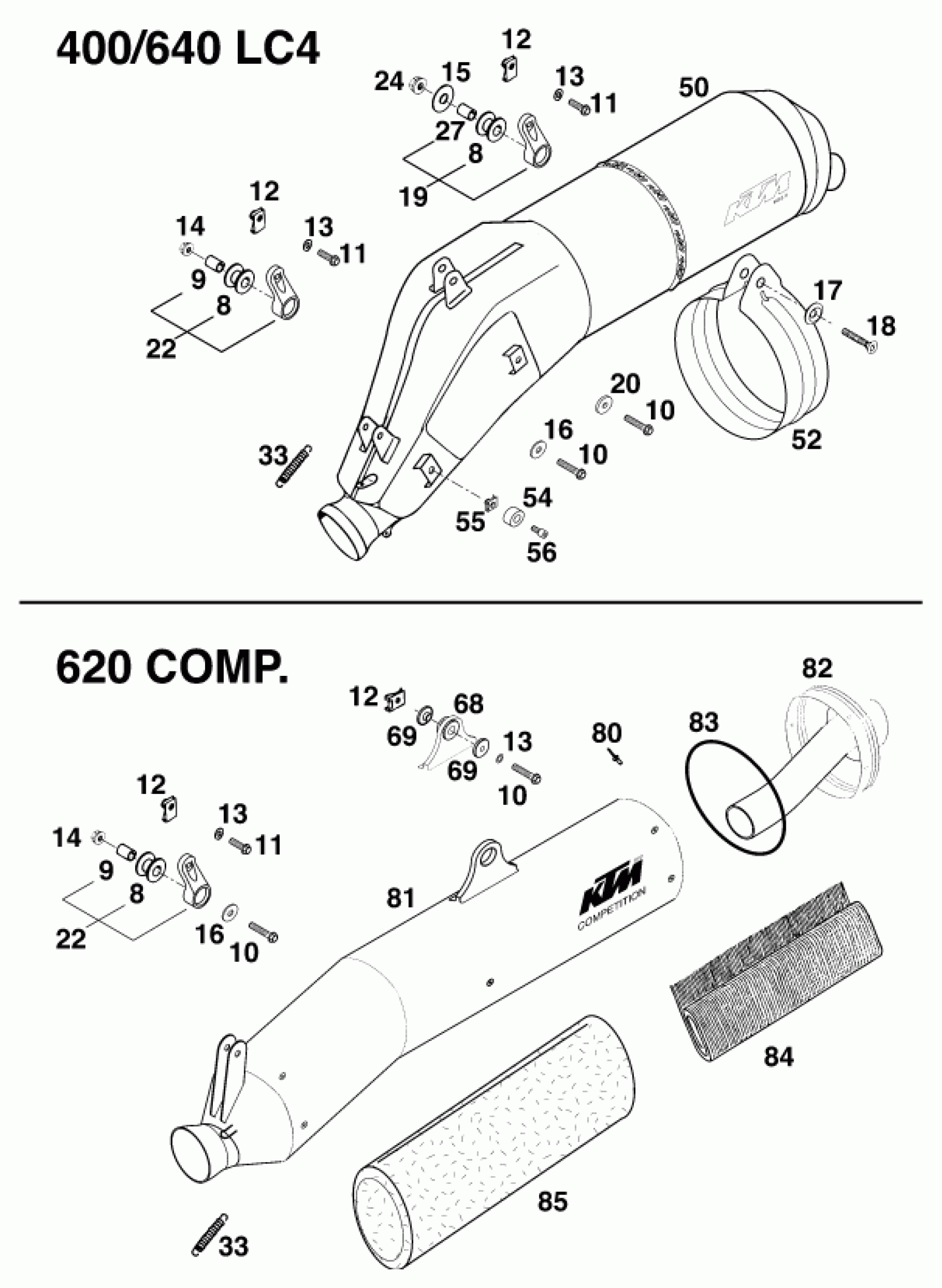

KTM 640 LC4 '98 <1998> MAIN SILENCER Diagram

#

Description
Price

8

damp. component silicone grey

54305068100

Unavailable

9

BUSHING 7X12X15,4

54305069000

Unavailable

10

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

11

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

12

clip nut M6

54603048100

Unavailable

13

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

14

SELF LOCKING NUT M6

56509064000

Unavailable

15

WASHER DIN9021-A 8,4

0021080003

Unavailable

16

Washer DIN9021-A 6.4

0021060003

Unavailable

17

SPECIAL WASHER ALU 8 X 24 MM

58303061000

Unavailable

18

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

Unavailable

19

SILENCER BRACKET CPL. SHORT

58305165144

Unavailable

20

STEEL WASHER 6,4X17X3

50232050001

Unavailable

22

SILENCER BRACKET CPL. SHORT'96

58305165244

Unavailable

24

54310086000

Unavailable

27

Spacer bushing 8.4X12X16

56505069000

Unavailable

33

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

50

SILENCER ''KTM HGS KAT'' '97

58305083000

Unavailable

50

SILENCER ''KTM HGS3'' '

58305083100

Unavailable

52

RETAINING CLAMP F. SILENCER'96

58305161100

Unavailable

54

RUBBERBUFFER 8X17X10 SILENC'97

58405098000

Unavailable

55

RANGE CHANGE MET. NUT M5 15460

54603048400

Unavailable

56

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

68

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

69

BUSHING 7,5X12X28X7,8 '96

54605069000

Unavailable

80

DUMMY RIVET 4,8X 7,5 NIRO

0011480752

Unavailable

81

% SILENCER THROTTLED SXC'

58305081000

Unavailable

82

END CAP CPL. SXC THROTTLED '

58305081003

Unavailable

83

O-RING 82,14X3,53 SILICONE

0770223601

Unavailable

84

STUFFING YARN REAR 90 GRAMM'98

58305078002

Unavailable

85

STUFFINGYARN FRT 400GRAMM'98

58305078000

Unavailable
