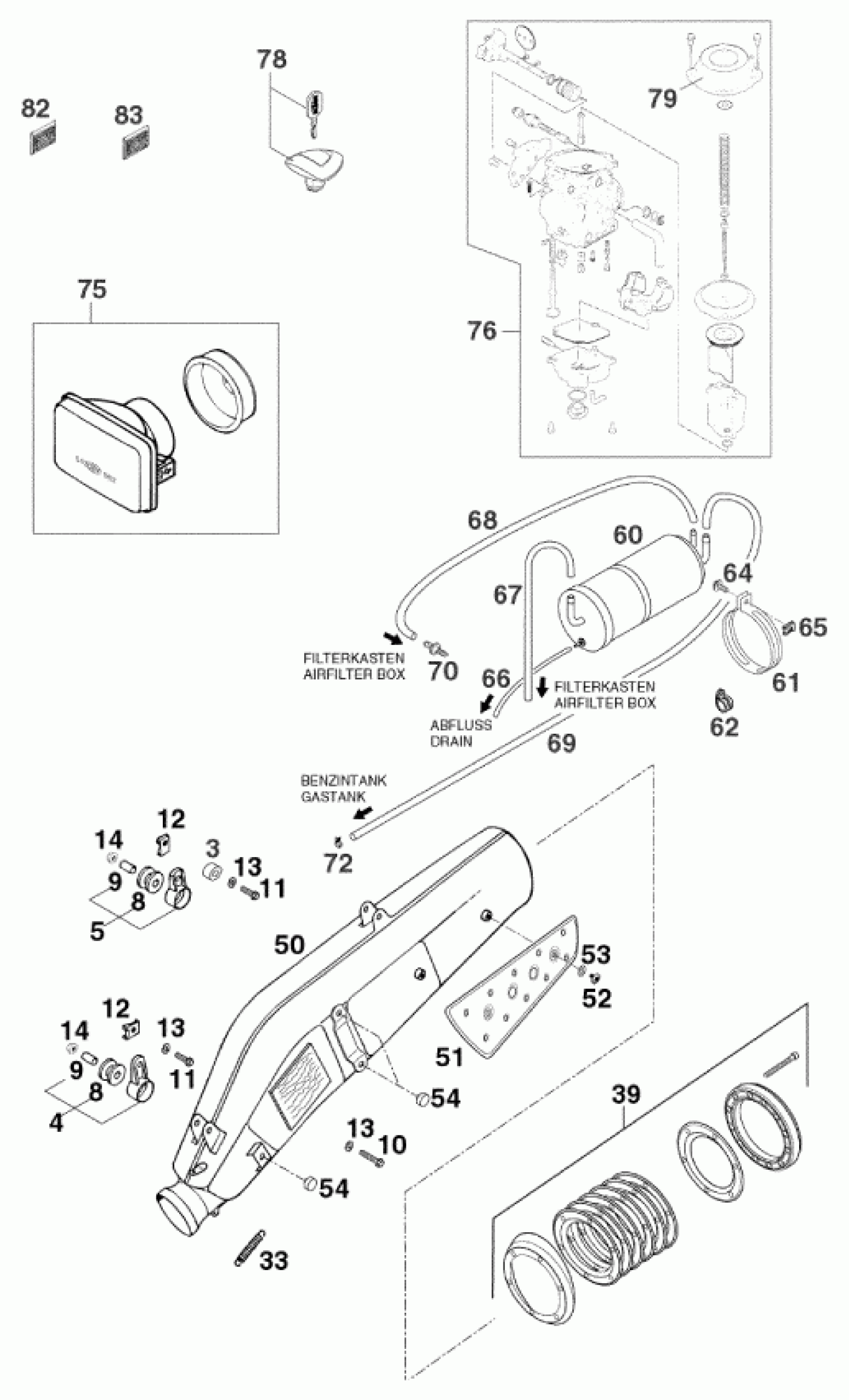

KTM 640 LC 4 - SILBER '99 <1999> NEW PARTS Diagram
#
3
BUSHING 6,5X15X10 ALU
50206017050
Unavailable
4
SIL. BRACKET CPL. LONG SILICON
54305065244
Unavailable
5
SIL. BRACKET CPL.SHORT SILICON
54305065344
Unavailable
8
damp. component silicone grey
54305068100
Unavailable
9
BUSHING 7X12X15,4
54305069000
Unavailable
10
HH COLLAR SCREW M 6X30 SW=8
0015060303
Unavailable
11
HH COLLAR SCREW M 6X20 WS=8
0015060203
Unavailable
12
clip nut M6
54603048100
Unavailable
13
SPRING WASHER DIN0137-B 6
0137060000
Unavailable
14
SELF LOCKING NUT M6
56509064000
Unavailable
33
TEN.SPRING L=62MM EY.MOVEABLE
50305016000
Unavailable
39
* SPARK-ARREST CPL."SUPERTRAP"
58005079650
Unavailable
50
* SILENCER "UGS" 640 RXC '99
58305080500
Unavailable
51
HEAT PROTECTOR SILENCER LC4'95
58305104000
Unavailable
52
AH BOLT ISO7380-M 6X8
0902060080
Unavailable
53
WASHER 6,4X14X0,8
53002046100
Unavailable
54
RUBBER BUFFER
54308042000
Unavailable
60
58307080044
Unavailable
61
CLAMP FOR FILTER KNECHT
58307083000
Unavailable
62
CLAMP RSGU 12/12
49007439200
Unavailable
64
HH COLLAR SCREW M 6X20 WS=8
0014060203
Unavailable
65
clip nut M6
54603048100
Unavailable
66
PVC-HOSE 4X6MM
31007007101
Unavailable
67
FUEL HOSE VITON 7X2MM
58007016001
Unavailable
68
PVC-HOSE 5 X 8 MM
31007007001
Unavailable
69
FUEL HOSE VITON 7X2MM
58007016001
Unavailable
70
HOSE CONNECTION FOR OILTANK
52338061050
Unavailable
72
CLAMP 008.7-505R
58407017000
Unavailable
75
HEAD LIGHT SAE 547 USA H4
58414001300
Unavailable
76
CARBURETOR MIKUNI BST40 MIL'98
57931001000
Unavailable
78
TANK PLUG LC4 USA '99
58407008100
Unavailable
79
DIAPHRAGM MIKUNI 640 MIL.
57931027000
Unavailable
82
* SIDE REFLECTOR ORANGE FRONT
16512180000
Unavailable
83
SIDE REFLECTOR RED REAR
16512180100
Unavailable
