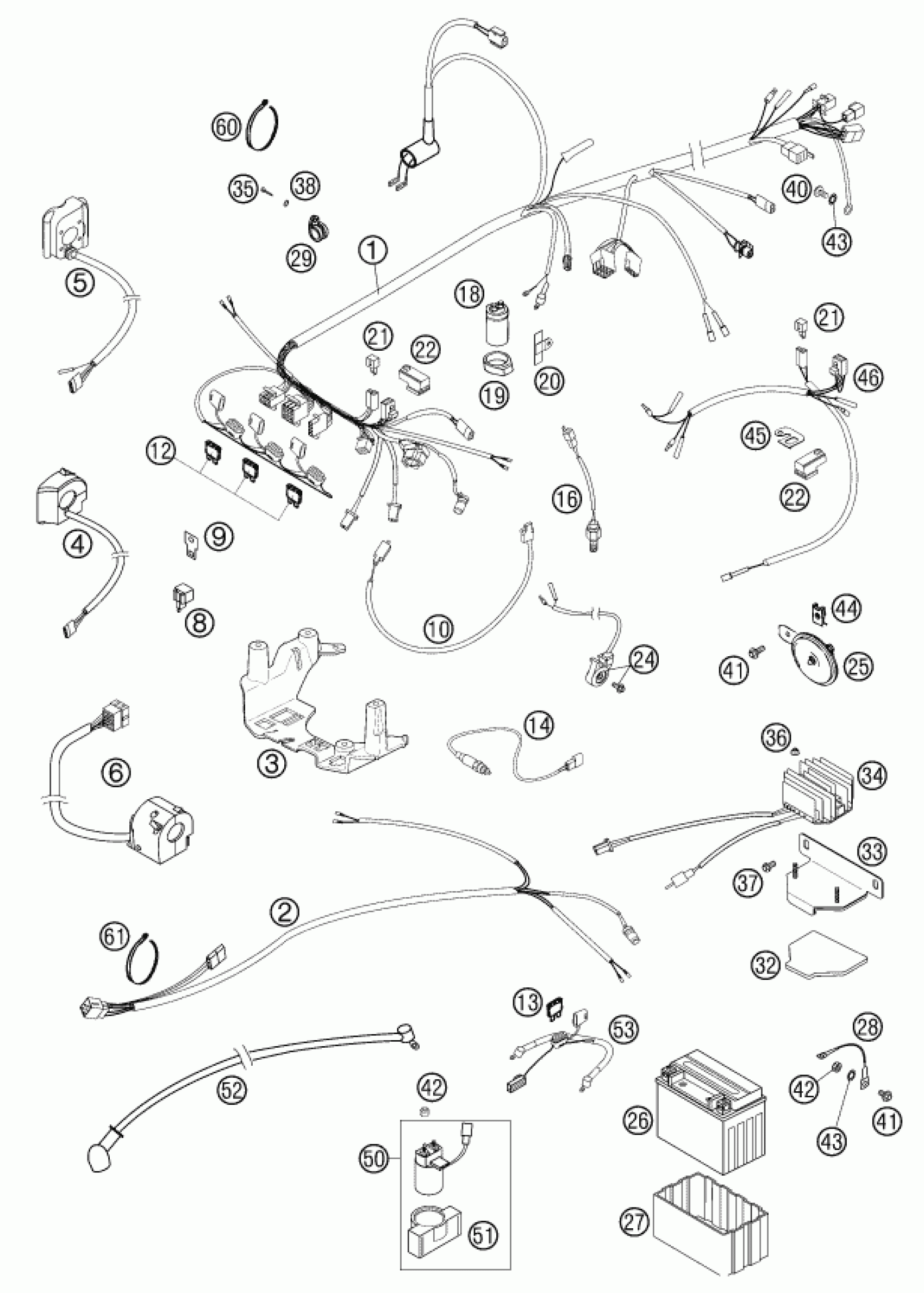

KTM 640 LC 4-E ORANGE 18L 2002 WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS LC4 02

58411175300

Unavailable

2

WIRING HARNESS REAR LC4 2001

58411176200

Unavailable

3

BRACKET FOR PLUGS LC4 '98

58411083100

Unavailable

4

START-STOP SWITCH AD LC4 02

58411074100

Unavailable

5

START-STOP SWITCH 2000

59011074100

Unavailable

6

HEAD LIGHT SWITCH AD LC4 02

58411070100

Unavailable

8

FLASHER UNIT 97

44611207200

Unavailable

9

BRACKET FOR FLASHER RELAY

58211031100

Unavailable

10

BRAKE LIGHT SWITCH FRONT 2002

50311050100

Unavailable

12

Plug-in fuse, big 10A

58011109110

Unavailable

13

Plug-in fuse, big 20A

58011109120

Unavailable

14

CLUTCH SWITCH '96

58411049000

Unavailable

16

BRAKE LIGHT SWITCH REAR '98

50311051100

Unavailable

18

CONDENSATOR 25V, 10.000 MF

49111435100

Unavailable

19

CAPACITOR BRACKET

54511048000

Unavailable

20

BRACKET FOR CAPACITOR

54611448000

Unavailable

21

DIODE S3H-15 97

58411096100

Unavailable

22

STARTER RELAY '96

58411057000

Unavailable

24

SIDE STAND SWITCH CPL. '97

58411045000

Unavailable

25

DC HORN 12V K80/L LEB

50311060000

Unavailable

26

BATTERY 12V 8AH '96

58411053000

Unavailable

27

BATTERY COVER 96

58411053050

Unavailable

28

GROUND CABLE D=6MM L=140MM '97

58411097100

Unavailable

29

CLAMP RSGU 15/12

49007439000

Unavailable

32

METAMOLL FOR BATTERY BRACKET

58411055150

Unavailable

33

BATTERY BRACKET LC4-E/DUKE'97

58411055100

Unavailable

34

VOLT.REGULATOR-RECTIFIER 12V

58411034100

Unavailable

35

SHEET MET.SCR.DIN7981- 4,8X13

0981480133

Unavailable

36

Self locking nut M6 - 10

56509064100

Unavailable

37

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

38

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

Unavailable

40

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

41

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

42

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

43

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

44

clip nut M6

54603048100

Unavailable

45

RETAINING PLATE

58311031000

Unavailable

46

* SIDE STAND CABLE 400/640 '99

58411046000

Unavailable

50

STARTER RELAY WITH HOLD.RUBBER

58411058000

Unavailable

51

HOLD. RUBBER FOR STARTRELAY

58411058050

Unavailable

52

STARTERCABLE 700 MM '97

58411059100

Unavailable

53

BATTERY CABLE 190MM 20A '98

58411059250

Unavailable

60

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

0

Cable tie 200/4.6mm black

44011076200

Unavailable

61

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable
