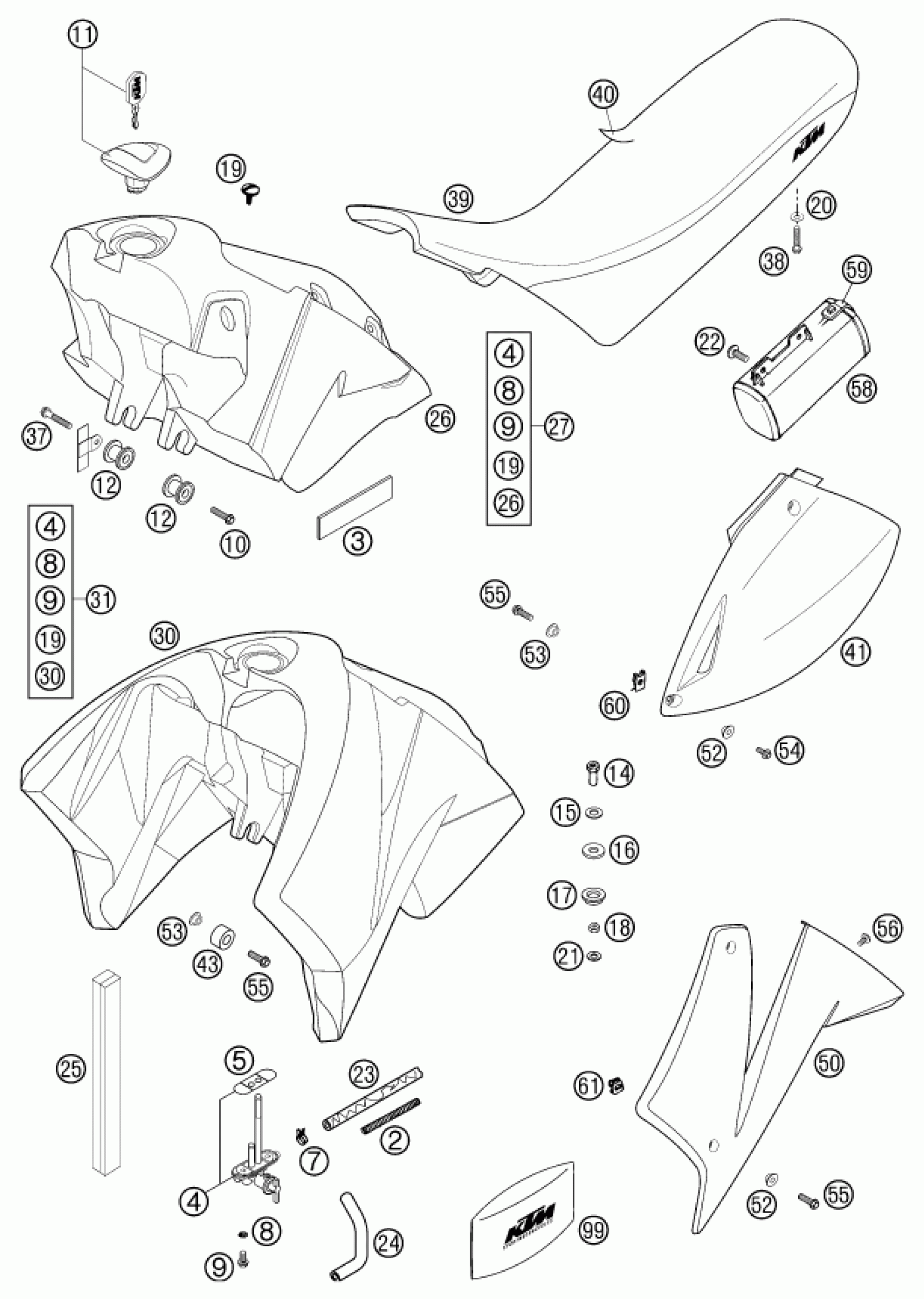

KTM 640 LC 4-E ORANGE 18L 2002 TANK, SEAT Diagram

#

Description
Price

2

PRESSURE SPRING 0,9MM

58036006100

Unavailable

3

RUBBER STRIP 85X25X3 MM

54601097000

Unavailable

4

FUEL COCK CPL.MIKUNI CK-69 '96

51107004000

Unavailable

5

GASKET FUEL COCK MIKUNI

58307106100

Unavailable

7

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

7

CLAMP YDNAC 13,7MM 2000

58431082200

Unavailable

8

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

9

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

10

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

11

TANK PLUG LC4 USA '99

58407008100

Unavailable

12

TANK BUSHING CPL. 12 X 34 X 25

58307113250

Unavailable

14

SPECIAL NUT M8

58307014000

Unavailable

15

WASHER 10,5 X 25 X 1,5

58307019000

Unavailable

16

INSOLATE WASHER 12X28X3

51005067100

Unavailable

17

BUSHING FOR 18 LIT. TANK

58407013250

Unavailable

18

Hexagon nut DIN934 M8

0934080003

Unavailable

19

SCREW FOR SEAT M 6X13/8

58407011000

Unavailable

20

WASHER 6,2X18X2

50232050000

Unavailable

21

washer DIN 125 A -8.4

0125080003

Unavailable

22

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

23

HOSE ID 7,5 PER METER

54435024001

Unavailable

24

FUEL HOSE FOR 18L. TANK 2000

58407016000

Unavailable

25

FOAM RUBBER STRIP

58107011000

Unavailable

27

FUEL TANK 11LI.CPL.LC4 BLACK

58407013300

Unavailable

31

FUEL TANK 18LI.CPL. LC4 BLACK

58407013400

Unavailable

37

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

38

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

39

SEAT STANDARD 2000

58407040800

Unavailable

39

SEAT ORANGE/BLACK 18LITER 2000

58407140500

Unavailable

39

% SEAT HIGH RED/BLACK 2002

58407140600

Unavailable

39

SEAT LOW RED/BLACK 2002

58407140700

Unavailable

39

SEAT 18L RED/BLACK 2002

58407140800

Unavailable

40

SEAT COVER 2000

58407040850

Unavailable

40

* SEAT COVER BLACK 18L. 2000

58407140550

Unavailable

41

SIDE COVER L/S BLACK 1998

5840804100030

Unavailable

41

SIDE COVER L/S STEEL BLUE 02

5840804100076

Unavailable

0

% SIDE COVER R/S BLACK 1998

5840804210030

Unavailable

40

SEAT COVER LC4 RED 2002

58407140650

Unavailable

40

SEAT COVER LC4 RED 2002

58407140750

Unavailable

40

SEAT COVER LC4 RED 2002

58407140850

Unavailable

0

SIDE COVER R/S STEEL BLUE 02

5840804210076

Unavailable

43

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

50

SPOILER L/S LC4 RED 2002

5840805010045

Unavailable

50

SPOILER L/S STEEL BLUE LC4 02

5840805010076

Unavailable

0

SPOILER R/S LC4 RED 2002

5840805110045

Unavailable

0

SPOILER R/S STEEL BLUE LC4 02

5840805110076

Unavailable

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

53

BUSH FOR SPOILER 6X11X16X7,5

50308053000

Unavailable

54

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

55

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

56

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

58

TOOL BOX CPL. '92

58012058000

Unavailable

59

RUBBER FOR TOOL BOX '92

58012058050

Unavailable

60

clip nut M6

54603048100

Unavailable

61

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

99

ORIGINAL EQUIPMENT TOOL KIT

58329099000

Unavailable
