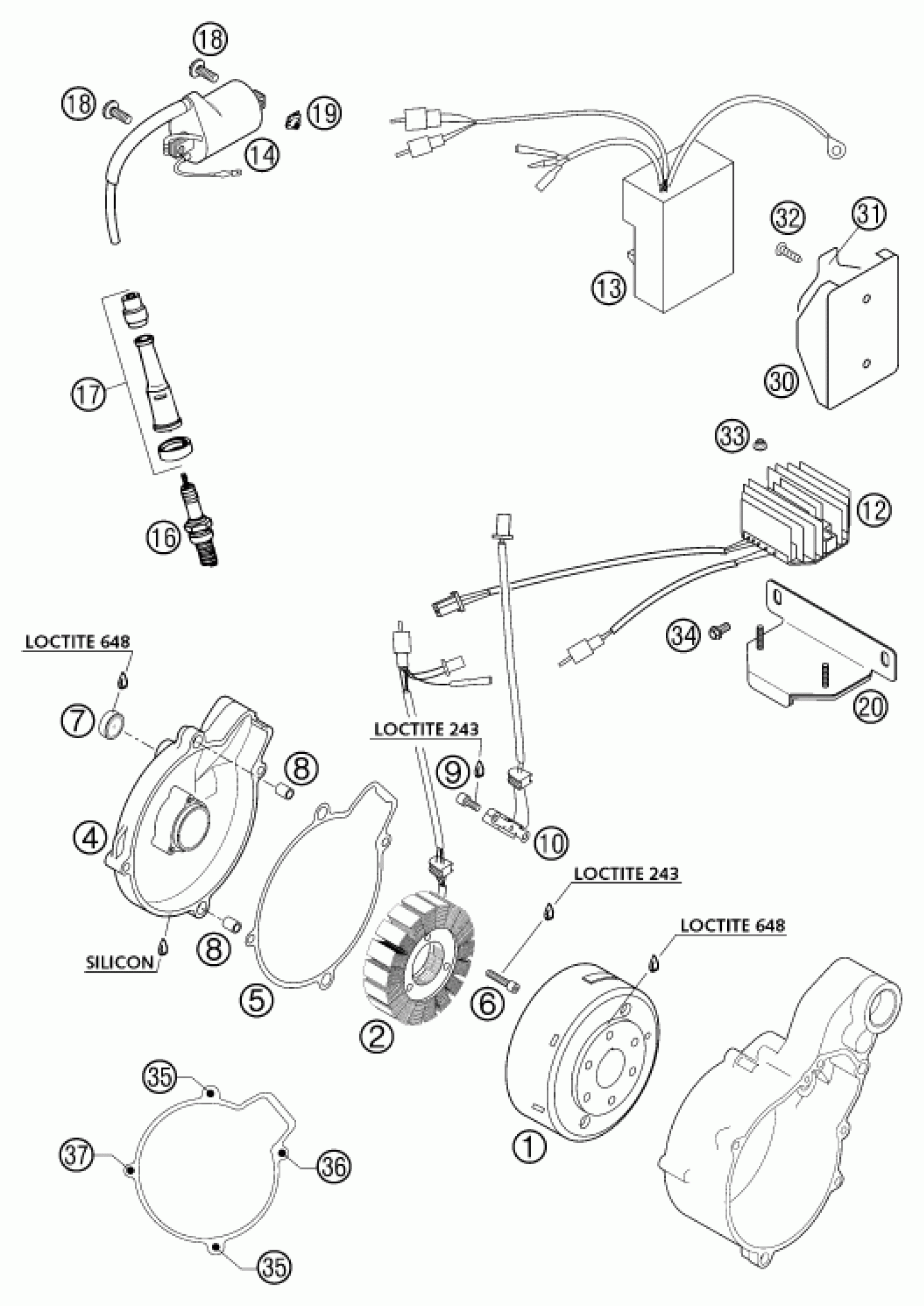

KTM 640 LC 4-E ORANGE 18L 2002 IGNITION SYSTEM Diagram

#

Description
Price

1

FLYWHEEL KOKUSAN GP9128 '97

58439005100

Unavailable

2

STATOR KOKUSAN LOOSE '96

58439004000

Unavailable

4

IGNITION COVER CPL. LC4-E '

58430002144

Unavailable

5

IGNITION COVER GASKET '96

58430040000

Unavailable

6

AH SCREW DIN0912-M 5X25

0912050253

Unavailable

7

INSPECTION GLASS GW 20-7

58430095000

Unavailable

8

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

9

SHCS DIN 912 M5x8

0912050083

Unavailable

10

PULSER COIL

58439034000

Unavailable

12

VOLT.REGULATOR-RECTIFIER 12V

58411034100

Unavailable

13

DIGITALBX CDI CB7459 95ROZ'99

58439031200

Unavailable

13

DIGITALB.CDI CB7477 80ROZ 20

58439031300

Unavailable

14

Ignition coil

58439006000

Unavailable

16

SPARK PLUG NGK DPR8EA-9

58439093009

Unavailable

17

Spark plug connector

58031010000

Unavailable

18

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

19

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

20

BATTERY BRACKET LC4-E/DUKE'97

58411055100

Unavailable

30

RUBBER BRACKET FOR CDI '97

58439030100

Unavailable

31

SUPPORT FOR RUBBER BRACKET '97

58439030150

Unavailable

32

SCREW FOR PLASTIC D=5X18

0017050181

Unavailable

33

Self locking nut M6 - 10

56509064100

Unavailable

34

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

35

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

36

HH COLLAR SCREW M 6X80 WS=8

0015060803

Unavailable

37

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable
