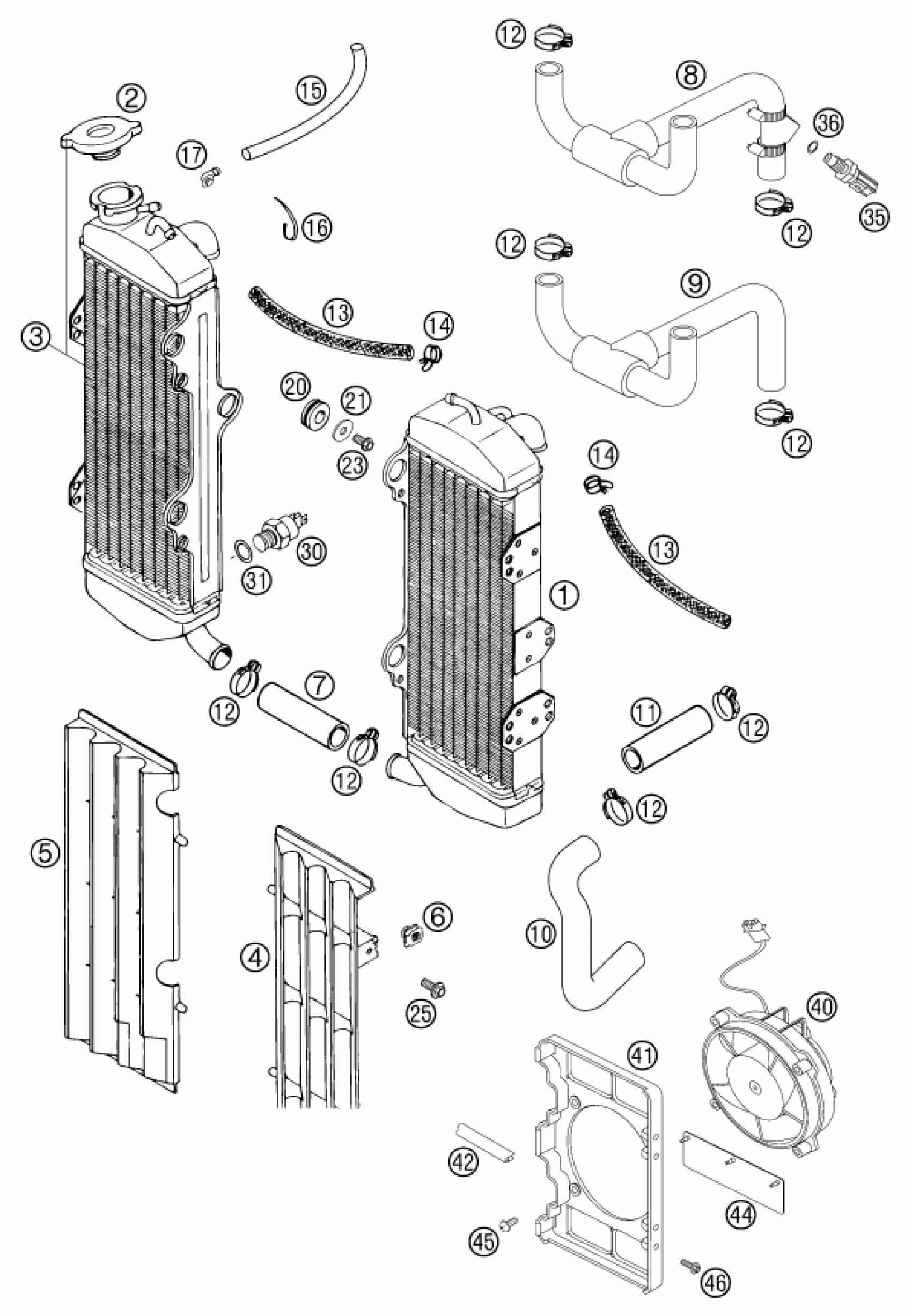

KTM 640 LC 4-E ORANGE 18L 2002 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR L/S (45246) LC4'94

58335008000

Unavailable

2

RADIATOR CAP SMALL 20,3 PSI

58035016000

Unavailable

3

RADIATOR R/S (45335) LC4 '99

57935008000

Unavailable

4

RADIATOR PROTECTOR L/S BLACK

58035034000

Unavailable

4

RADIATOR PROTECT. L/S WHITE'96

58035034100

Unavailable

5

RADIATOR PROTECTOR R/S BLACK

58035134000

Unavailable

5

RADIATOR PROTECT. R/S WHITE'96

58035134100

Unavailable

6

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

7

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

10

PREFORMED HOSE 18X25 PUMP-CY

58435025700

Unavailable

11

RADIATOR HOSE 20X26

58335024001

Unavailable

8

PREFORMED HOSE SENSOR 02

58335026100

Unavailable

9

PREFORMED HOSE LC4'94

58335026000

Unavailable

12

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

13

HOSE ID 7,5 PER METER

54435024001

Unavailable

14

HOSE CLAMP YDNAC 10119 11MM

50231005000

Unavailable

15

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

16

Cable tie 200/4.6mm black

44011076200

Unavailable

17

ANGLE PIECE '97

50303089000

Unavailable

20

RUBBER SLEEVE D=12MM

41001052000

Unavailable

21

Washer DIN9021-A 6.4

0021060003

Unavailable

23

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

25

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

30

THERMOSWITCH 80-85 DG

58035045000

Unavailable

31

ALU SEALRING DIN7603-14X20X1,5

0603142015

Unavailable

35

TEMPERAT.-SENSOR WATER LC8 02

60011252000

Unavailable

36

o-ring 10.00x2.00 silicone

0770100020

Unavailable

40

FAN CPL. 12V LC4 2000

58435041000

Unavailable

41

FAN CAP LC4 2000

58435044000

Unavailable

42

EDGE PROTECTOR PER METER

58312085100

Unavailable

44

FAN FLAP RUBBER LC4 2000

58435044050

Unavailable

45

SCREW FOR PLASTIC D=5X18

0081500181

Unavailable

46

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable
