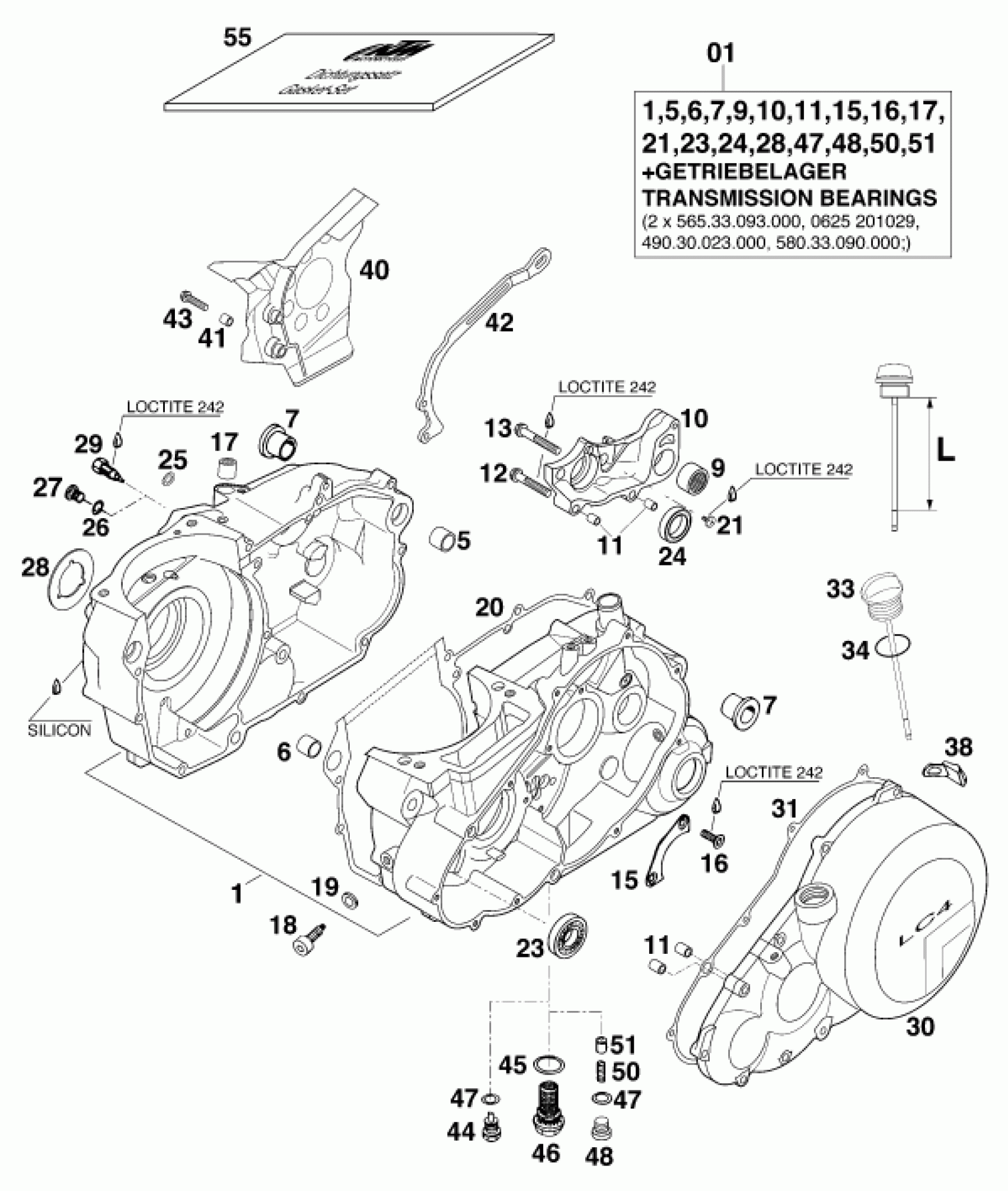

KTM 640 LC 4 2000 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL.W.TRAN.BEAR'98

5843000014429

Unavailable

5

DOWEL 19 X15,1X12

50130027000

Unavailable

6

DOWEL 17 X 13 X 12

51030026100

Unavailable

7

CRANK CASE BUSH

50130010000

Unavailable

9

NEEDLE BEARING HK 2216

58033097000

Unavailable

10

SHIFT MECHANISM SUPPORT LC4'94

58330011000

Unavailable

11

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

12

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

13

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

15

RETAINING PLATE

56530017000

Unavailable

16

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

Unavailable

17

NEEDLE BEARING HK 1212

50332095000

Unavailable

18

LOCATING SCREW M8 L=23

58030080000

Unavailable

19

CU-SEAL RING 8 X 14 X 3

58030081000

Unavailable

20

ENGINE CASE GASKET LC4-E '96

58430039000

Unavailable

21

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

Unavailable

23

GROOVED BALL BEARING 16003 C3

0625160030

Unavailable

24

BALL BEARING 61805 C3

0625618050

Unavailable

25

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

26

CU-SEAL RING DIN7603-10X14X1

58038032010

Unavailable

27

OIL DRAIN PLUG M10X1,5 AH-WS=6

49030029000

Unavailable

28

STOP DISK 33 X 58 X 1,5

58440091000

Unavailable

29

CONTACT SCREW M10 STEEL '98

58011081100

Unavailable

30

5833010100029

Unavailable

30

CLUTCH COVER CPL.GREY''LC4 '99

5833010110029

Unavailable

31

CLUTCH COVER GASKET '94

58330025000

Unavailable

33

OIL DIPSTICK CPL. L=93MM '96

58330020144

Unavailable

34

O-RING 16,00X3,00 NBR 70

0770160030

Unavailable

38

BUMP RUBBER

58333041000

Unavailable

40

* SPROCKET COVER BLACK '96

58430060000

Unavailable

41

BUSHING 6,5X8X11

54613038150

Unavailable

42

CHAIN DAMPERSHEET 17T LC4-E

58430047000

Unavailable

42

CHAIN DAMPERSHEET 15/16T LC4-E

58430047100

Unavailable

43

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

44

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

45

CU-SEAL RING DIN7603-22X27X2

58038017100

Unavailable

46

OIL DRAIN PLUG M22X1,5

58038019100

Unavailable

47

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

48

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

50

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

51

VALVE PISTON D=10MM

58038028000

Unavailable

55

GASKET SET LC4-E '

58430099000

Unavailable
