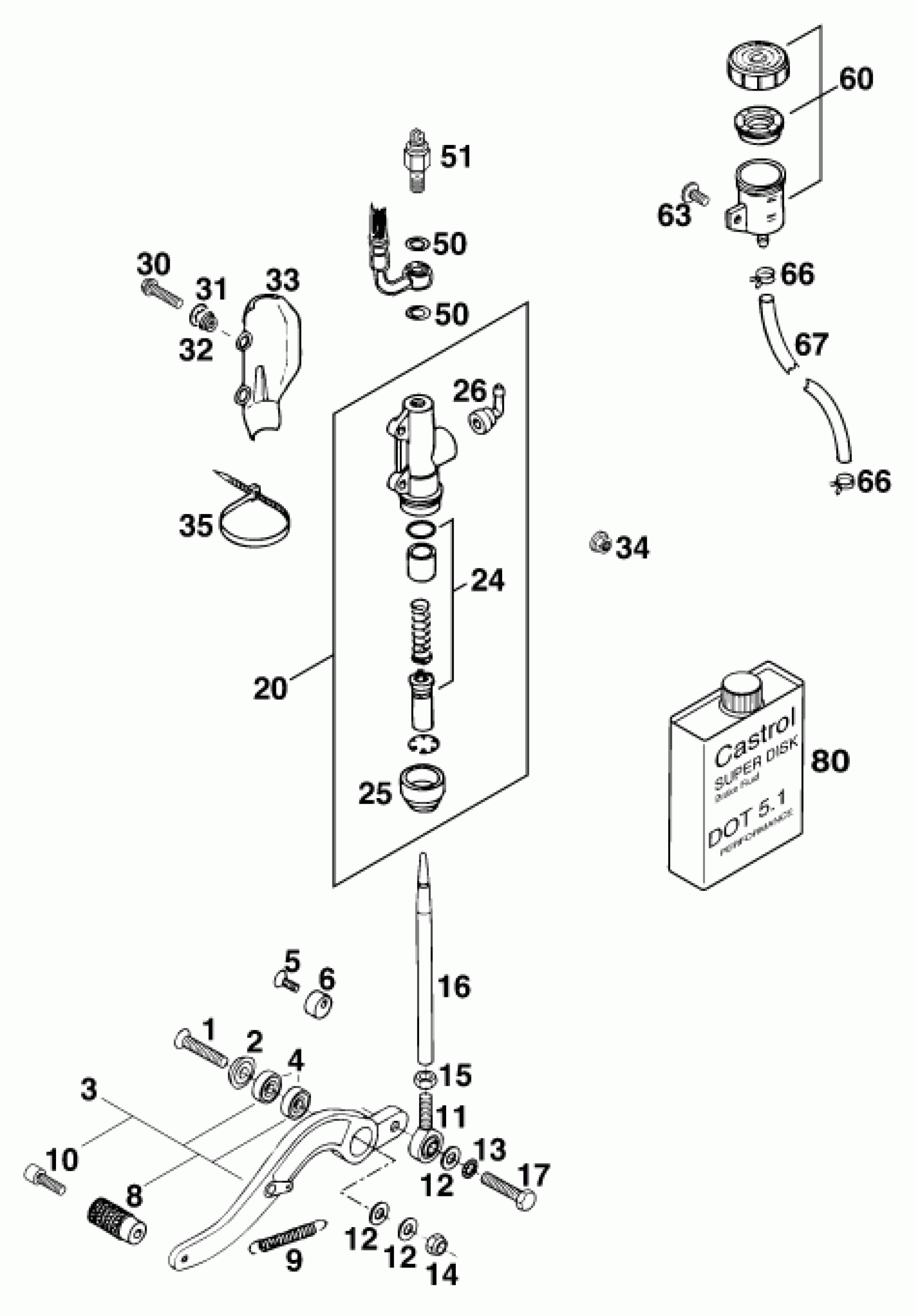

KTM 640 DUKE-E <1998> REAR BRAKE CONTROL Diagram

#

Description

Price

1

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

Unavailable

2

SPECIAL WASHER ALU 8 X 24 MM

58303061000

Unavailable

3

FOOT BRAKE LEVER CPL. DUKE'94

58303060144

Unavailable

4

Grooved ball bearing 608 2RS C

0625006087

Unavailable

5

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

6

BRAKE LEVER STOP '93

58303063000

Unavailable

8

Brake lover pedal Duke 94

58303060051

Unavailable

9

RETURN SPRING

13003062000

Unavailable

10

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

11

HEIM JOINT M8 W=12MM '93

58303062000

Unavailable

12

washer DIN 125 A -8.4

0125080003

Unavailable

13

TOOTHLOCK WASHER DIN6797-J 8,4

0797080003

Unavailable

14

SELF LOCKING NUT DIN0985-M 8

0985080003

Unavailable

15

Hexagon nut DIN934 M8

0934080003

Unavailable

16

PUSH ROD ALU L=178MM '

58303168000

Unavailable

17

HH SCREW DIN0933-M 8X25

0933080253

Unavailable

20

MAIN BRAKE CYLINDER '89

54513101044

Unavailable

24

REPAIR KIT PISTON 13MM

54513150000

Unavailable

25

RUBBER SLEEVE

54513151000

Unavailable

26

ANGLE PIECE

54513155000

Unavailable

30

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

31

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

Unavailable

32

COLLAR BUSHING

50213161000

Unavailable

33

BRAKE CYL. PROTECTOR ''BREMBO'

54513038000

Unavailable

34

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

35

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

50

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

51

REAR BRAKE LIGHT SWITCH '

50311051000

Unavailable

60

BRAKE FLUID RESERVOIR '89

54513030044

Unavailable

63

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

66

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

67

HOSE FOR RESERVOIR 6X1,5

58007016101

Unavailable

80

BRAKE FLUID DOT 4.0

306054

Unavailable
