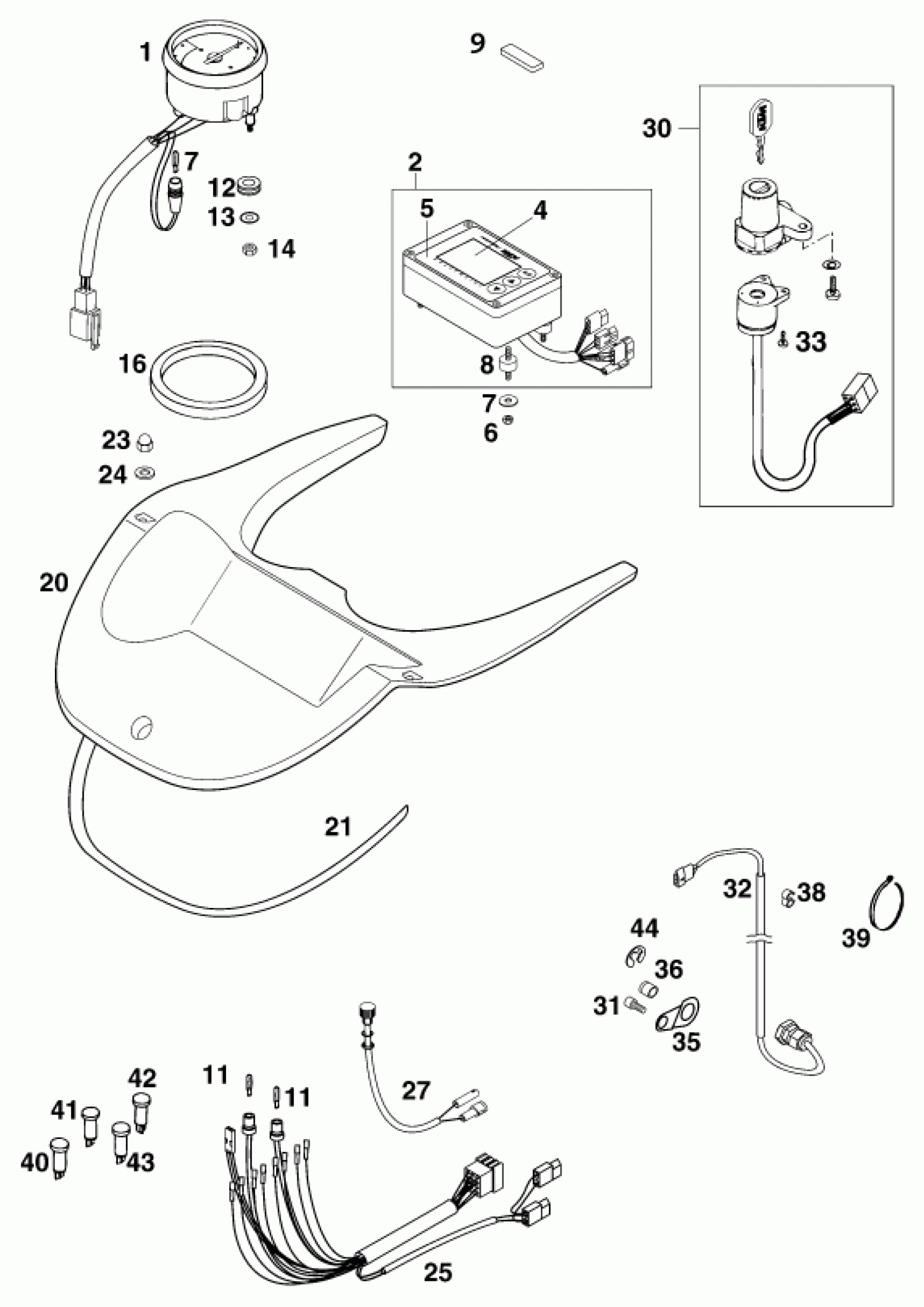

KTM 640 ADVENTURE-R 2001 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

0

Cable tie 200/4.6mm black

44011076200

Unavailable

1

TACHOMETER DUKE '99

58714075000

Unavailable

2

TRIPMASTER IMO-100R CPL. '97

58212085000

Unavailable

4

DISPLAY LENS FOR TRIPM.ADV.'97

58212085050

Unavailable

5

KEYBOARD FOIL F.TRIPM. ADV.'97

58212085051

Unavailable

6

SELF LOCKING NUT DIN0985-M 4

0985040003

Unavailable

7

WASHER DIN9021-A 4,3

0021040003

Unavailable

8

RUBBER GROMMET 15X8-M4X10 (2)

58212085052

Unavailable

9

FOAM 4X9MM PER METER

58211001063

Unavailable

11

BULB 12V 1,2W (W2X4,6D)

49111425000

Unavailable

12

RUBBER GROMMIT BLACK

31008008000

Unavailable

13

WASHER DIN0134- 7,4

0134070003

Unavailable

14

HEXAGON NUT DIN0934-M 5

0934050003

Unavailable

16

FOAM RUBBER RING 81x97x10

58311054000

Unavailable

20

COCKPIT COVER ADVENTURE '01

58214070100

Unavailable

21

BORDER PROTEC. ADVENTURE 2002

58214070150

Unavailable

23

HH CAP NUT DIN1587-M 6 BLACK

0587060001

Unavailable

24

WASHER 6X17X1,5 BLACK

56032005100

Unavailable

25

WIRING HAR. F. CONTROLS ADV.01

58211078100

Unavailable

27

CONTRAST POTENTIOMETER ADV.'97

58212083000

Unavailable

30

IGNITION LOCK W.LIGHTSWITCH 98

58411066000

Unavailable

31

AH SCREW DIN912 M8X10

0912080103

Unavailable

32

SENSOR CABLE CPL. ADVENTURE'97

58212084000

Unavailable

33

FLAT HEAD SCREW DIN7985-M 4X12

0985040123

Unavailable

35

BRACKET F.SENSOR ADVENTURE 01

58214050151

Unavailable

36

SENSOR MAGNET ADVENTURE 01

58214069050

Unavailable

38

CLAMP D=6/8MM, BLACK

55011022000

Unavailable

39

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

40

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

Unavailable

41

NEUTRAL INDIC. LIGHT GREEN '98

58011023300

Unavailable

42

TEMPERATURE WARN. LIGHT RED'98

58011022400

Unavailable

43

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

44

TAB WASHER DIN6799-RS 7,0

0799070000

Unavailable
