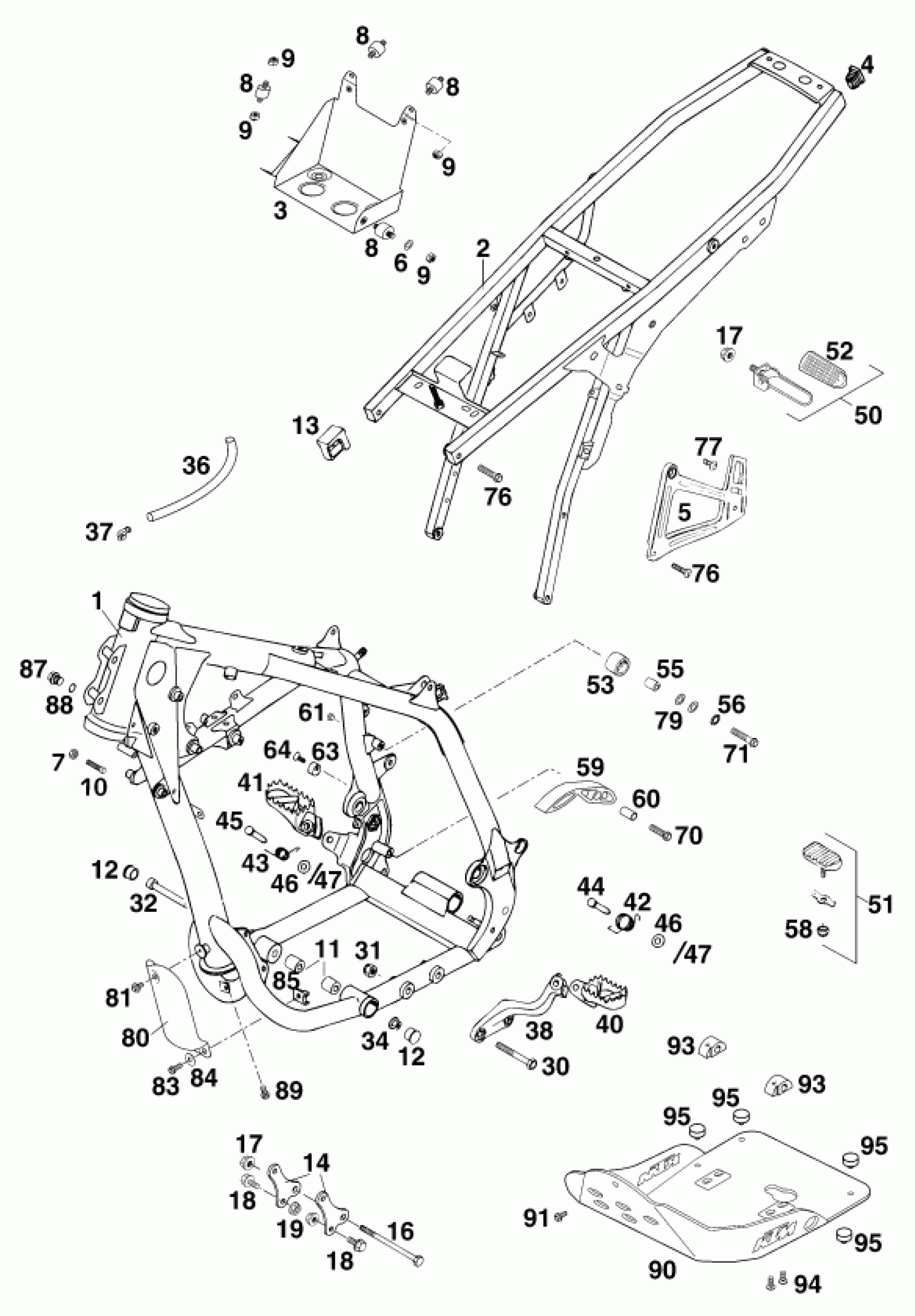

KTM 640 ADVENTURE-R 2001 FRAME Diagram

#

Description
Price

0

FOOTRESTBRACK. REAR R/S SILVER

5810300420090

Unavailable

0

FOOT REST REAR R/S CPL.'95

58303150044

Unavailable

1

% FRAME W.OILRES.ADV.SILVER 20

58203001300

Unavailable

2

SUBFRAME CPL.STEEL SILVER 20

5840300230090

Unavailable

3

BRACKET F. BATTERY LC4 '99

58403002270

Unavailable

4

PLUG 12 X 17 MM

58303002090

Unavailable

5

FOOTRESTBRACK. RR L/S SILVER

5810300320090

Unavailable

6

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

7

Hexagon nut DIN934 M8

0934080003

Unavailable

8

RUBBER GROMMET 20X15-M6X8-(2)

58403002010

Unavailable

9

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

10

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

11

SPACER ROLLER 10,3X20X22

58003012000

Unavailable

12

PVC CAP D=22MM

71001012100

Unavailable

13

TANK SUPPORT '93

58307015000

Unavailable

14

ENGINE SUPPORT AGW '94

58303055000

Unavailable

16

HH SCREW DIN0931-M10X110

0931101103

Unavailable

17

flanged hex nut DIN 6927 M10 W

49009082000

Unavailable

18

HH COLLAR SCREW M 8X16 WS=13

49109481052

Unavailable

19

Self locking nut M8 10.9

54310086200

Unavailable

30

HH SCREW DIN0931-M10X60

0931100603

Unavailable

31

SELF LOCKING NUT DIN0985-M10

0985100003

Unavailable

32

AH SCREW DIN0912-M10X160

0912101603

Unavailable

34

COLLAR NUT M10 WS=13

54630044000

Unavailable

36

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

37

ANGLE PIECE '97

50303089000

Unavailable

38

FOOTREST BRACKET L/S '93

58303038000

Unavailable

40

FOOTREST L/S SILVER '99

5830304000090

Unavailable

41

FOOT REST R/S SILVER '98

5460314000090

Unavailable

42

FOOTREST SPRING L/S '93

58303041000

Unavailable

43

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

44

BOLT FOR FOOTREST

58303044000

Unavailable

45

BOLT FOR FOOTREST 9,8 X 50

54603044000

Unavailable

46

washer DIN 125 A 10.5

0125100003

Unavailable

47

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

50

FOOTREST REAR L/S CPL. '95

58303050044

Unavailable

51

FOOTREST RUBBER CPL. '94

58303045044

Unavailable

52

FOOTREST RUBBER L/S&R/S DUKE95

58303051000

Unavailable

53

CHAIN ROLL 12X29X22,5 '98

58403060000

Unavailable

55

BUSH CHAIN ROLL 8X12X23 '98

58403060065

Unavailable

56

LOCK WASHER 8MM

36003014000

Unavailable

58

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

59

CHAIN SLIDING PIECE BELOW '97

51103053000

Unavailable

60

BUSHING 8,2X10X20

51103053051

Unavailable

61

PLASTIC CAP SFL10

54403135000

Unavailable

63

BRAKE LEVER STOP '93

58303063000

Unavailable

64

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

70

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

71

HH COLLAR SCREW M 8X45 WS=10

0015080453

Unavailable

76

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

77

SPROCKET SCREW-AH M8X20 WS=6

54610052000

Unavailable

79

washer DIN 125 A -8.4

0125080003

Unavailable

80

COVER OIL FILTER '94

58303010000

Unavailable

81

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

83

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

84

Washer DIN9021-A 6.4

0021060003

Unavailable

85

clip nut M6

54603048100

Unavailable

87

PLUG DIN0910-M 10X1

0910100003

Unavailable

88

CU-SEAL RING 10 X 14 X 1,5

58038022900

Unavailable

89

AH SCREW DIN0912-M 6X10 10.9

0912060106

Unavailable

90

AP-ANLAGE KPL. HUSABERG

58412099000

Unavailable

91

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

93

ENGINE PROTECTOR BRACKET '97

58003012200

Unavailable

94

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

95

RUBBER BUFFER

54308042000

Unavailable
