Partiron

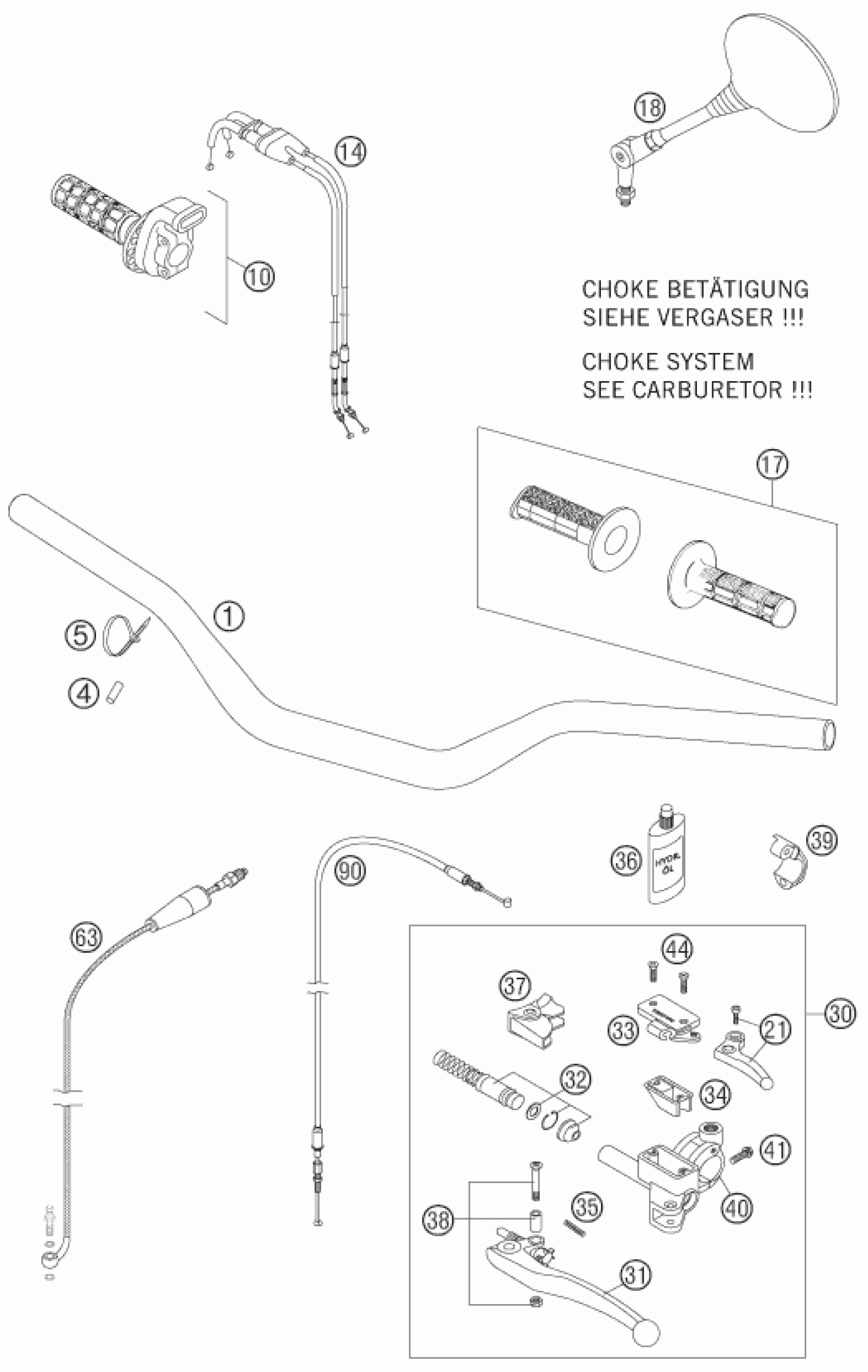

KTM 625 SXC 2007 HANDLEBAR, CONTROLS Diagram

#

Description
Price

21

LEVER CPL. RACING 2000

59002047000

Unavailable

30

MASTER CYLINDER CPL. SXC/SM 03

58602030000

Unavailable

31

CLUTCH LEVER LONG CPL. 2003

59002031000

Unavailable

31

CLUTCH LEVER SHORT CPL. 2003

54602031000

Unavailable

32

REP.SET PISTON MAGURA D=10.5

50302032000

Unavailable

33

COVER HYD.CLUTCH RACING 2000

59002033000

Unavailable

34

RUBBER FOR RESERVOIR '98

50302034000

Unavailable

35

SPRING FOR CLUTCH LEVER 03

59002035000

Unavailable

36

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

Unavailable

38

LEVER SCREW CPL. 125-200 '98

50302038000

Unavailable

39

CLAMP WITH PIN 2000

50302030150

Unavailable

40

CLAMP MIRROR WITH PIN

59002044000

Unavailable

41

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

Unavailable

63

CLUTCH PIPE LC4/SXC/SM 03

58432063000

Unavailable

90

DECOMPR. CABLE LC4 03

58402094000

Unavailable

14

THR.CABLE''OPEN-CLOSE''KEIHIN

59002091300

Unavailable

17

GRIPP SET HALF WAFFLE

50202021000

Unavailable

18

REAR MIRROR L/S FOLDABLE SC 02

58312040200

Unavailable

1

HANDLEBAR 28MM HIGH 2000

59002001000

Unavailable

4

HOSE 7x11x30MM

58007016300

Unavailable

5

Cable tie 200/4.6mm black

44011076200

Unavailable

10

THROTTLE GRIP CPL.RACING2000

59002010200

Unavailable
