MASK, FENDERS

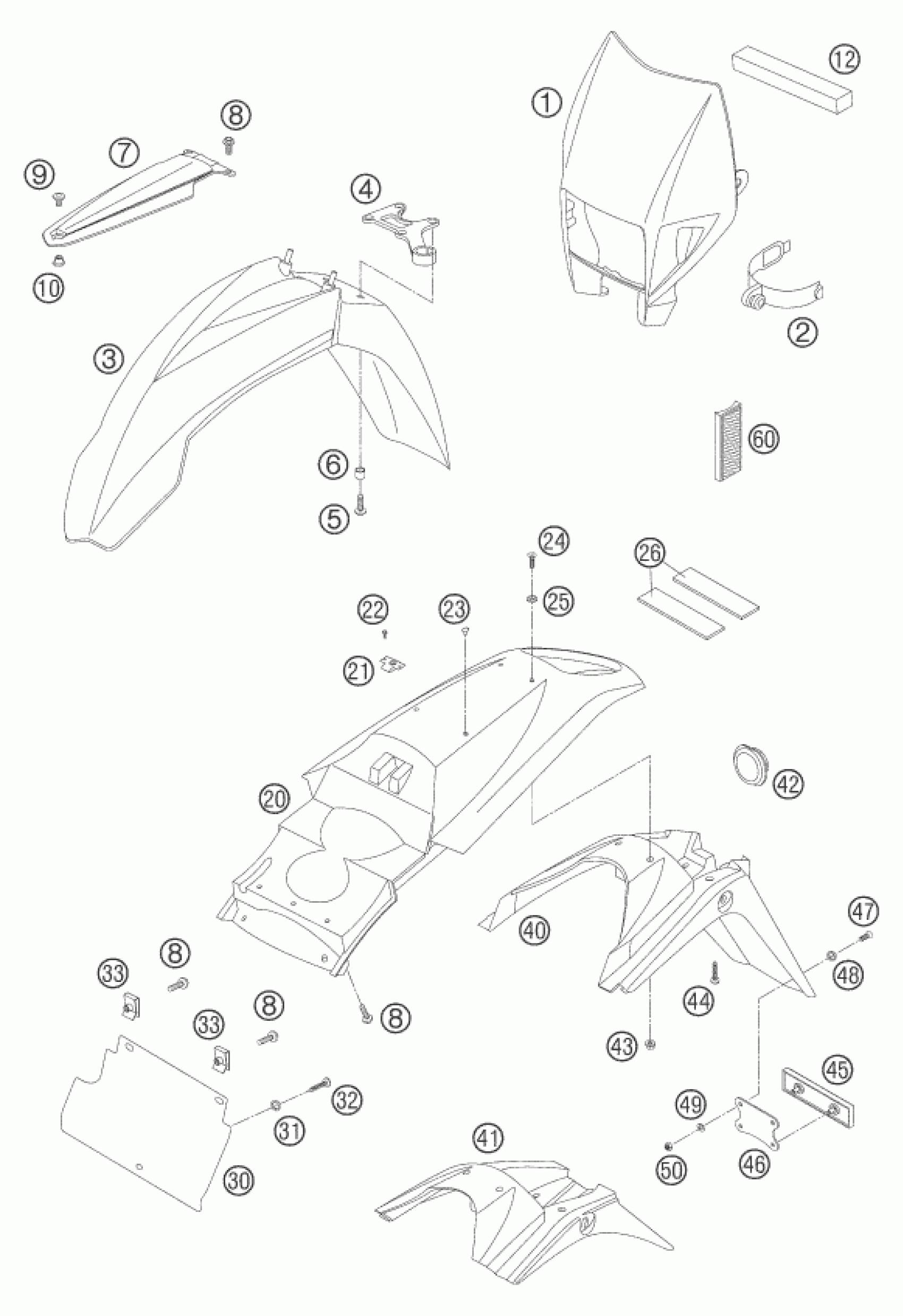

KTM 625 SXC 2006 MASK, FENDERS Diagram
#
1
HEADLIGHT MASK EXC/EGS'99
5030800100004
Unavailable
2
MASK RUBBER UFO WP '95
50211086000
Unavailable
4
BRAKE HOSE GUIDE 2000
59008019000
Unavailable
5
HH COLLAR SCREW M 6X20 WS=8
0014060203
Unavailable
6
SPACER BUSHING 7X10X7,5
50208020000
Unavailable
3
FENDER FRONT WIDE ORANGE 03
5030801030004
Unavailable
7
FENDER BRACE BLACK '99
50308009100
Unavailable
8
HH COLLAR SCREW M 6X15 WS=8
0014060153
Unavailable
9
SCREW FEND.BRACE M8X9 WS=17
50308009050
Unavailable
10
NUT FENDER BRACE M8 WS=17
50308009051
Unavailable
12
FLASHBACKPROTECTION 05
58608004000
Unavailable
20
FENDER REAR ORANGE LC4 01
5840801410004
Unavailable
21
THRUST BEARING QUICK RELEASE
58307042151
Unavailable
22
SCREW FOR PLASTIC D=4X18
0016040183
Unavailable
23
PLUG REAR FENDER ORANGE 01
5840801200004
Unavailable
24
FLAT H.SCREW DIN7991-M6X20
0991060203
Unavailable
25
SPECIAL WASHER 7X12,5X20 BLACK
58308045000
Unavailable
26
RUBBER STRIP 85X25X3 MM
54601097000
Unavailable
30
FENDER EXTENSION LC4-E '97
58308013250
Unavailable
31
WASHER 6MM
40006006000
Unavailable
32
SCREW FOR PLASTIC D=5X18
0017050181
Unavailable
33
clip nut M6
54603048100
Unavailable
40
NUMB.PLATE CARRIER BLACK LC4
58408015000
Unavailable
41
NUMB.PLATE CARRIER BLACK SC'99
58308015100
Unavailable
42
RUBBER FOR FENDER REAR
58414040050
Unavailable
43
Self locking nut M6 - 10
56509064100
Unavailable
44
EJOT PT SCREW K60X20 WS=6
0017060203
Unavailable
45
REFLECTOR RED
58412080000
Unavailable
46
BRACKET FOR REFLECTOR
58412080050
Unavailable
47
OVAL HEAD SCREW DIN0966-M 5X16
0966050163
Unavailable
48
WASHER 6MM
40006006000
Unavailable
49
WASHER DIN0125-A 5,3
0125050003
Unavailable
50
Self locking nut DIN 985 M5
0985050003
Unavailable
60
REFLECTOR YELLOW '99
58412080100
Unavailable
