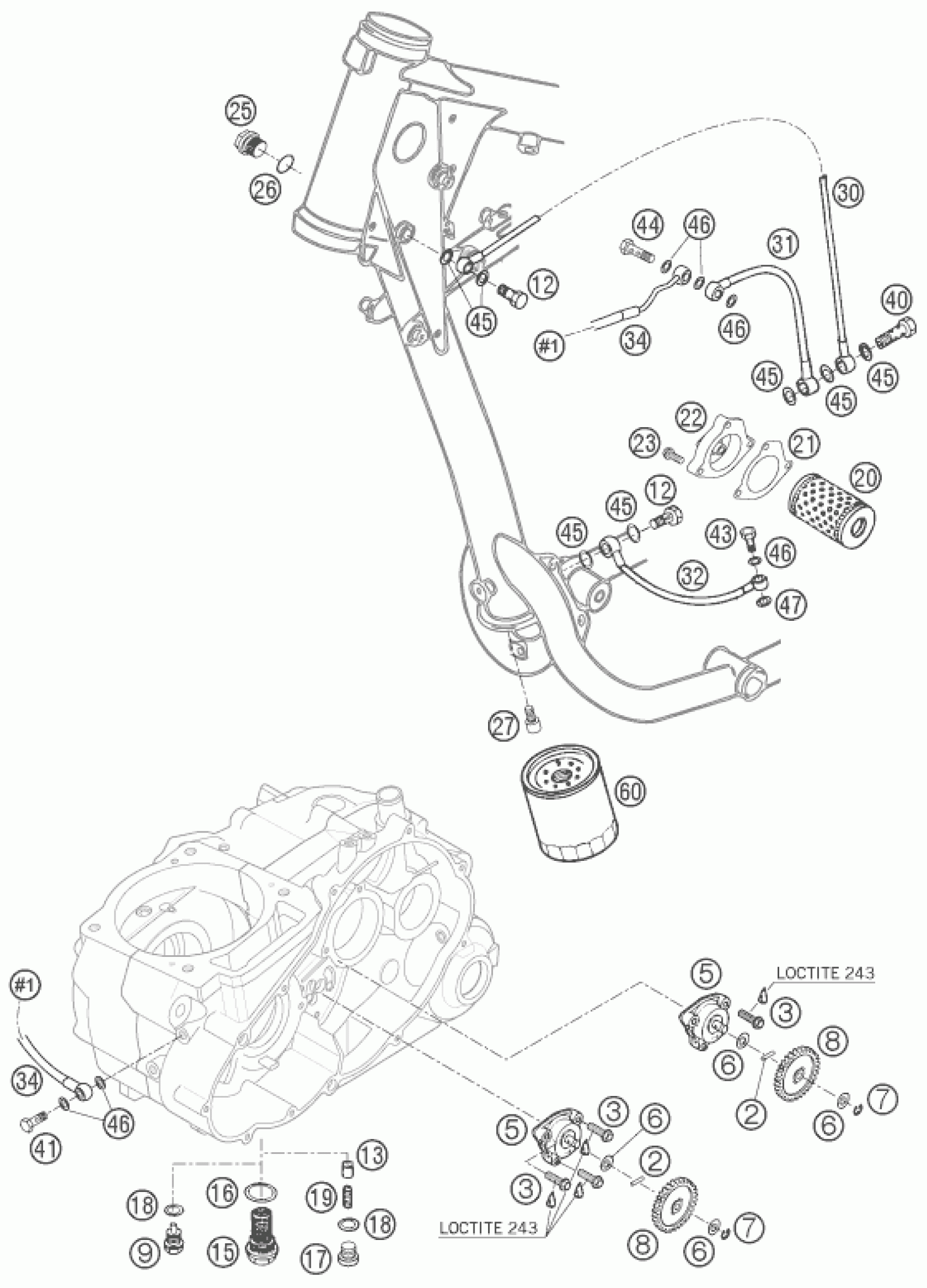

KTM 625 SXC 2006 LUBRICATING SYSTEM Diagram

#

Description
Price

2

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

Unavailable

3

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

5

OIL PUMP MIKUNI G-73-10

58038007700

Unavailable

6

STOP DISK 8,1 X 15 X 0,5

58038007755

Unavailable

7

TAB WASHER DIN6799-RS 6,0

0799060000

Unavailable

8

OIL PUMP GEAR 26-T

58438001000

Unavailable

9

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

12

HOLLOW SCREW M10 X 1

54313025000

Unavailable

13

VALVE PISTON D=10MM

58038028000

Unavailable

15

OIL DRAIN PLUG M22X1,5

58038019100

Unavailable

16

CU-SEAL RING DIN7603-22X27X2

58038017100

Unavailable

17

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

18

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

19

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

20

OIL FILTER LONG

58038005100

Unavailable

21

OIL FILTER COVER GASKET 2001

58530041000

Unavailable

22

OIL FILTER COVER 2001

58030008700

Unavailable

23

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

25

PLUG DIN0910-M16X1,5

0910160153

Unavailable

26

CU-SEAL RING 16X22X2

0603162220

Unavailable

27

AH SCREW DIN7984-M 6X10

0984060103

Unavailable

40

DUAL BANJO BOLT M10X1

58038033200

Unavailable

43

JET SCREW M 8 X 1 ''150''

58038130000

Unavailable

44

DUAL BANJO BOLT M8x1

58038033000

Unavailable

30

OIL LINE FILTER-FRAME TUBE

58038234700

Unavailable

31

OIL LINE CLUTCH COVER-FRAME

58338034000

Unavailable

32

OIL LINE CLUTCH COVER-FRAME

58338034100

Unavailable

34

OIL LINE 8/8 BENT 05

58438034000

Unavailable

45

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

46

SEAL RING CU DIN7603- 8X12X1

0603082121

Unavailable

47

CU-SEAL RING 8 X 12 X 1,5

58038032300

Unavailable

60

SCREW TYPE FILTER

58338045100

Unavailable

41

BANJO BOLT M8X1

58038029000

Unavailable
