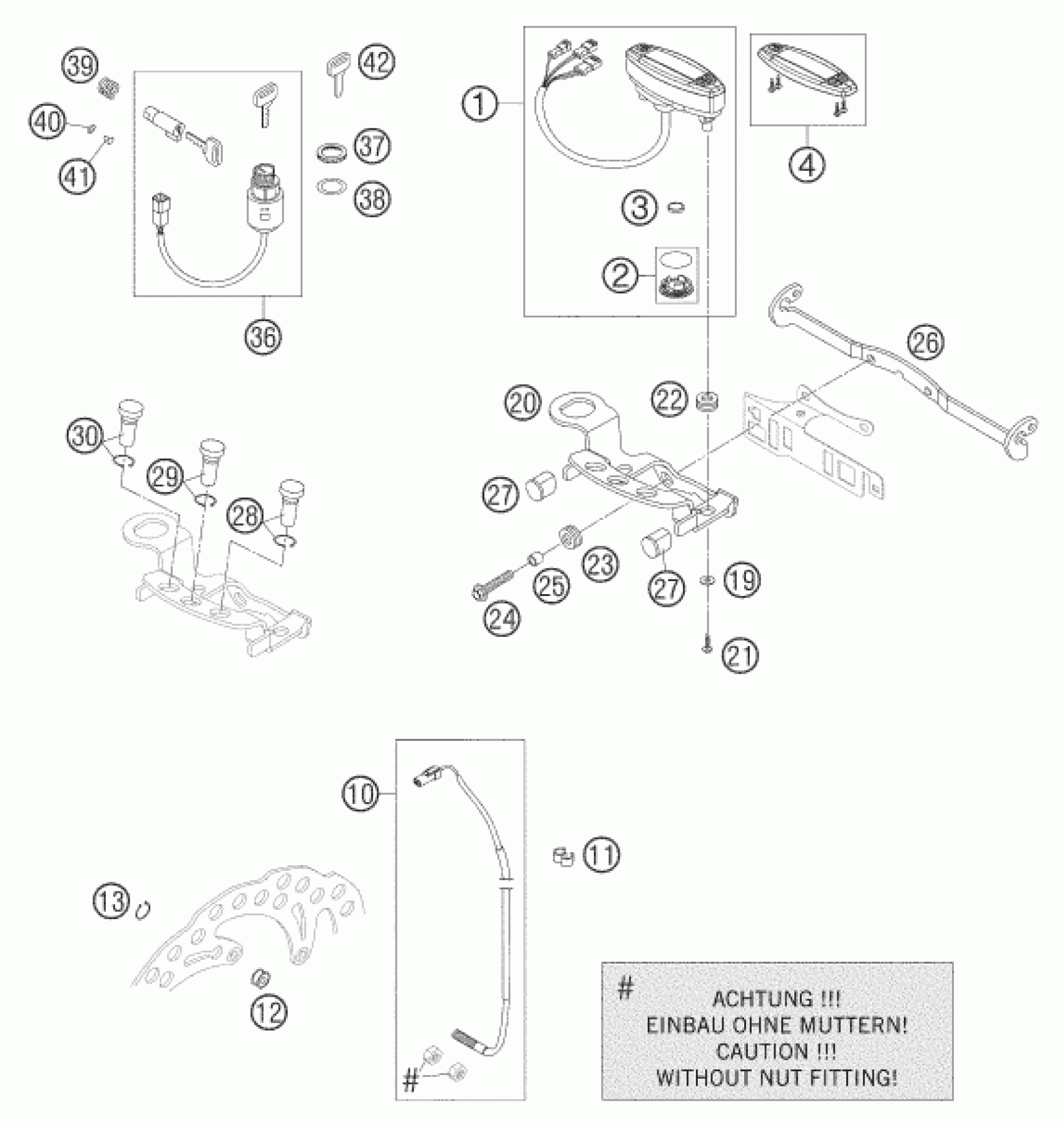

KTM 625 SXC 2006 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER KM/H F. 21'' 200

54814069000

Unavailable

1

SPEEDOMETER KM/H F. 17'' 200

54814069200

Unavailable

2

BATTERY COVER F. SPEEDOM. 2005

54814069010

Unavailable

3

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

Unavailable

4

SPEEDOMETER TOP PART 05

54814069020

Unavailable

10

CABLE FOR DIGITAL SPEEDOM. 05

54814068000

Unavailable

11

CLAMP D=6/8MM, BLACK

55011022100

Unavailable

12

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

Unavailable

13

CIRCLIP DIN0471- 9X1 INOX

0471009104

Unavailable

19

washer DIN 9021 A - 5.3

0021050003

Unavailable

21

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

20

SPEEDOM.BRACKET 625 SXC+SMC 05

58614060100

Unavailable

22

rubber grommet 16x10.8x3

58214069051

Unavailable

23

rubber grommet D=8mm open

31008060000

Unavailable

24

HH COLLAR SCREW M 6X25 WS=8

0014060253

Unavailable

25

SPACER BUSHING 6,5 X 8 X 7

58011039000

Unavailable

26

FLASHER BRACKET 2002

58314033100

Unavailable

27

PLUG CAP KV8 05

58608003000

Unavailable

28

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

29

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

Unavailable

30

NEUTRAL INDIC. LIGHT GREEN '98

58011023300

Unavailable

36

LOCK SYSTEM 625 SXC 03

58411066400

Unavailable

37

IGNITION LOCK NUT M24X1

50311066050

Unavailable

38

WASHER F. IGNITION LOCK 03

58411066450

Unavailable

39

SPRING L=16MM

12003007052

Unavailable

40

SPRING WASHER DIN137 B3

0137030003

Unavailable

41

GROOVED NAIL RIVETO AF10

45002040091

Unavailable

42

KEY BLANK BLACK ''T'' GR

40011166200

Unavailable
