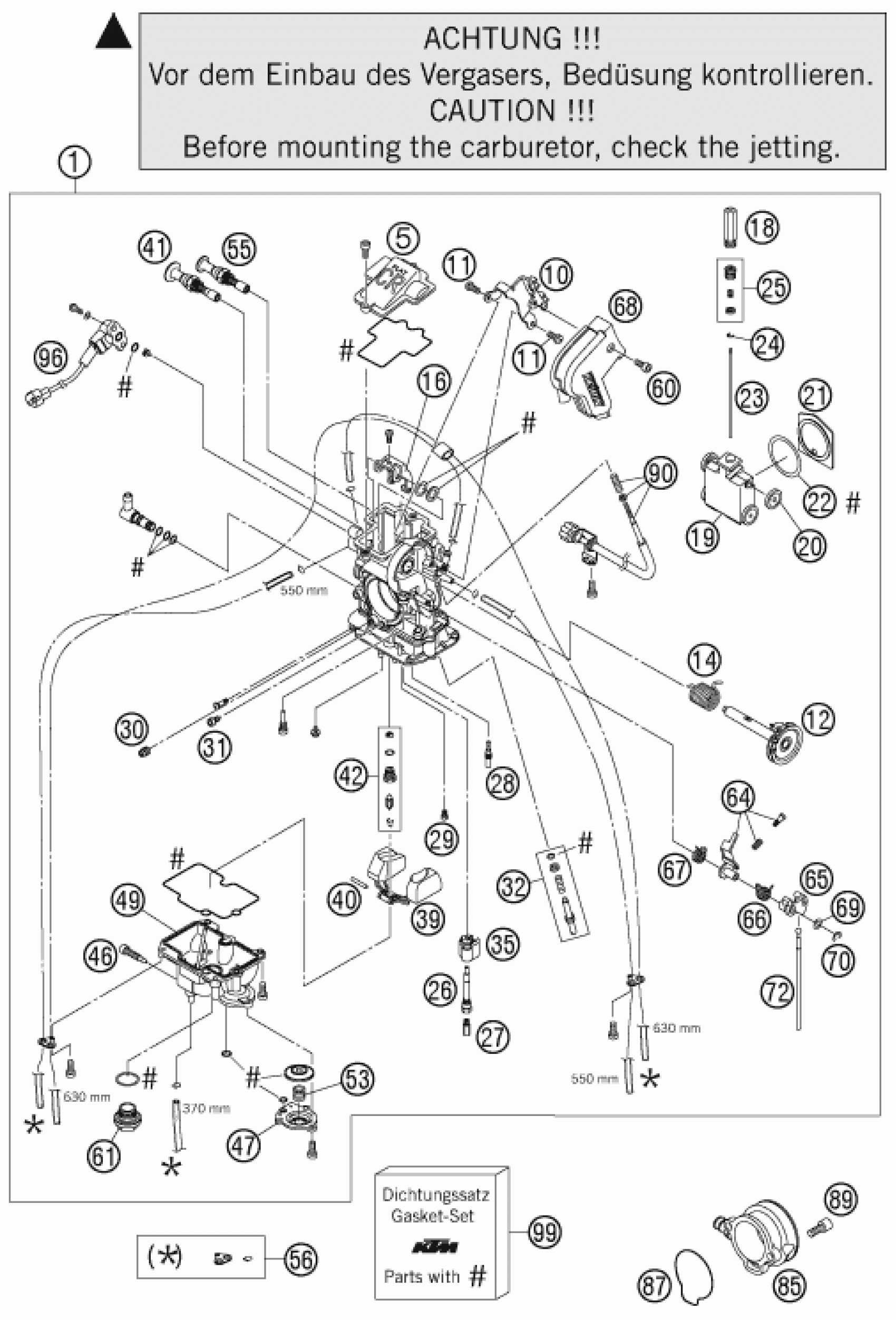

KTM 625 SXC 2004 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR KEIHIN FCR-41 MX 03

58331001100

Unavailable

5

CARBURETOR COVER 2002

57331027000

Unavailable

10

BRACKET PLATE FOR THR. CABLE

57331080000

Unavailable

11

SCREW M 5 X 8

57331055000

Unavailable

12

THROTTLE SHAFT CPL.

57331046000

Unavailable

14

COIL SPRING THROTTLE SHAFT

57331046050

Unavailable

16

LINK ARM THROTTLE VALVE CPL.

57331035051

Unavailable

18

SLIDE STOP L=34,5MM 03

58331029014

Unavailable

19

THROTTLE VALVE CPL.

57331035000

Unavailable

20

BUSHING THROTTLE VALVE

59031035050

Unavailable

21

GASKET PLATE THROTTLE VALVE 04

57331035153

Unavailable

22

GASKET WASHER THROTTLE VALVE

59031035052

Unavailable

23

JET NEEDLE KEIHIN OBDVT

59031023200

Unavailable

23

JET NEEDLE KEIHIN OBEKP

57331034100

Unavailable

23

JET NEEDLE KEIHIN OBEKQ

57331034200

Unavailable

23

JET NEEDLE KEIHIN OBEKR

57331034300

Unavailable

23

JET NEEDLE KEIHIN OBEKS

57331034400

Unavailable

23

JET NEEDLE KEIHIN OBEKT

57331034500

Unavailable

24

BAR CLIP

59031029000

Unavailable

25

NEEDLE SET SCREW CPL.

57331032000

Unavailable

26

NEEDLE JET FCR-MX

59031121000

Unavailable

27

MAIN JET 160 KEIHIN

54531623160

Unavailable

27

MAIN JET 162 KEIHIN

54531623162

Unavailable

27

MAIN JET 165 KEIHIN

54531623165

Unavailable

27

MAIN JET 168 KEIHIN

54531623168

Unavailable

27

MAIN JET 170 KEIHIN

54531623170

Unavailable

27

MAIN JET 172 KEIHIN

54531623172

Unavailable

27

MAIN JET 175 KEIHIN

54531623175

Unavailable

27

MAIN JET 178 KEIHIN

54531623178

Unavailable

27

MAIN JET 180 KEIHIN

54531623180

Unavailable

27

MAIN JET 182 KEIHIN

54531623182

Unavailable

27

MAIN JET 185 KEIHIN

54531623185

Unavailable

27

MAIN JET 188 KEIHIN

54531623188

Unavailable

27

MAIN JET 190 KEIHIN

54531623190

Unavailable

28

IDLE JET 40 KEIHIN

54531607040

Unavailable

28

IDLE JET 42 KEIHIN

54531607042

Unavailable

28

IDLE JET 45 KEIHIN

54531607045

Unavailable

29

STARTER JET 85

59031051085

Unavailable

30

IDLE AIR JET 100 KEIHIN

57331007100

Unavailable

31

MAIN AIR JET 200 KEIHIN

57331037200

Unavailable

32

ADJUST SCREW CPL. FCR-MX

59031017100

Unavailable

35

BUFFER PLATE

57331085000

Unavailable

39

FLOAT CPL.

57331009000

Unavailable

40

ARM PIN FLOAT

57331008000

Unavailable

41

HOT-STARTER VALVE CPL.

57331075000

Unavailable

42

NEEDLE VALVE CPL.

57331020000

Unavailable

46

DRAIN SCREW FLOAT CHAMBER

57331155000

Unavailable

47

COVER ACCELERATOR PUMP

57331060000

Unavailable

49

FLOAT CHAMBER CPL. SET

57331011000

Unavailable

53

COIL SPRING

59031059000

Unavailable

55

STARTER VALVE CPL.

57331048000

Unavailable

56

BREATH.HOSE FCR-MX KEIHIN CPL.

57331098000

Unavailable

60

SCREW F. COVER KEIHIN

57331038100

Unavailable

61

HOLDING BOLT

57331014000

Unavailable

64

INTERMEDIATE LEVER CPL.

57331062000

Unavailable

65

LINK LEVER

57331056000

Unavailable

66

SPRING LINK LEVER

57331059000

Unavailable

67

SPRING INTERMEDIATE LEVER

57331159000

Unavailable

68

CARBURETOR COVER

57331038000

Unavailable

69

WASHER LINK LEVER

57331087000

Unavailable

70

E-CLIP

57331084000

Unavailable

72

ROD ACCELERATOR PUMP

57331061000

Unavailable

85

INTAKE FUNNEL FCR/FCR-MX 02

59031040200

Unavailable

87

O-RING FOR INTAKE FUNNEL

59031040010

Unavailable

89

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

90

STOP SCREW CPL. FCR-MX

57331025000

Unavailable

96

TPS-SENSOR FCRMX 220MM 03-05

58331077000

Unavailable

99

GASKET SET FCR-MX KEIHIN

57331099000

Unavailable
