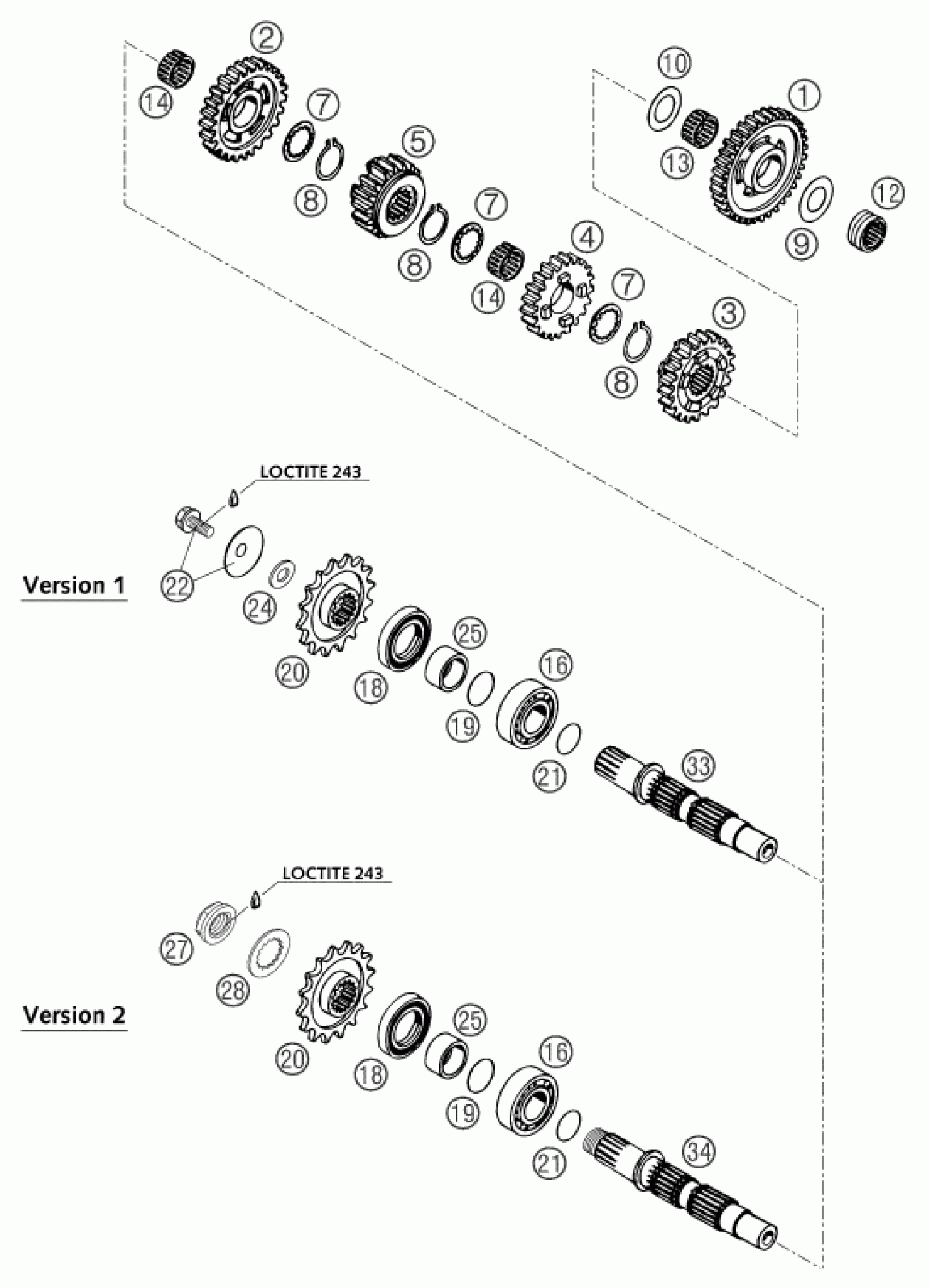

KTM 625 SXC 2003 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

IDLER GEAR 1.G 35-T (1M3)

56533005300

Unavailable

2

IDLER GEAR 2.G 24-T ''10''

58333113010

Unavailable

3

SLIDING GEAR 3.G 21-T ''03''

58333007003

Unavailable

4

IDLER GEAR 4.G 19-T ''05''

58333009005

Unavailable

5

SLIDING GEAR 5.G 18-T ''09''

58333011009

Unavailable

7

STOP DISK 22,7 X 32 X 1,5

56533016300

Unavailable

8

LOCK RING DIN0471-25X1,64SD

52033096000

Unavailable

9

STOP DISK 20,2 X 35 X 1

56533015000

Unavailable

10

STOP DISK 22,2 X 35 X 1,5

56533018300

Unavailable

12

NEEDLE BEARING RNA 4902 KSE

56533093000

Unavailable

13

NEEDLE BEARING K22X26X13H

56533098000

Unavailable

14

NEEDLE BEAR. K22X26X13 DIVID

56533099000

Unavailable

16

cylindrical roller bearing NJ2

49030023000

Unavailable

18

Radial shaft seal 32X47X7 BSL

0760324771

Unavailable

19

O-RING 25,00X2,00 SILICONE

0770250021

Unavailable

20

ENGINE SPROCKET 14 T

58033029014

Unavailable

20

ENGINE SPROCKET 15 T

58033029015

Unavailable

20

ENGINE SPROCKET 16 T

58033029016

Unavailable

20

ENGINE SPROCKET 17 T

58033029017

Unavailable

21

O-RING 22,00X1,00 NBR 70

0770220010

Unavailable

22

SCREW 10.9+SPRING WASHER

59033034044

Unavailable

24

washer DIN 125 A 10.5

0125100003

Unavailable

25

SPACER BUSHING 12MM

54633014100

Unavailable

27

sprocket nut M20x1.5

58033032200

Unavailable

28

locking plate

51033031000

Unavailable

33

COUNTERSHAFT

58333003000

Unavailable

34

COUNTERSHAFT 03

58333003100

Unavailable
