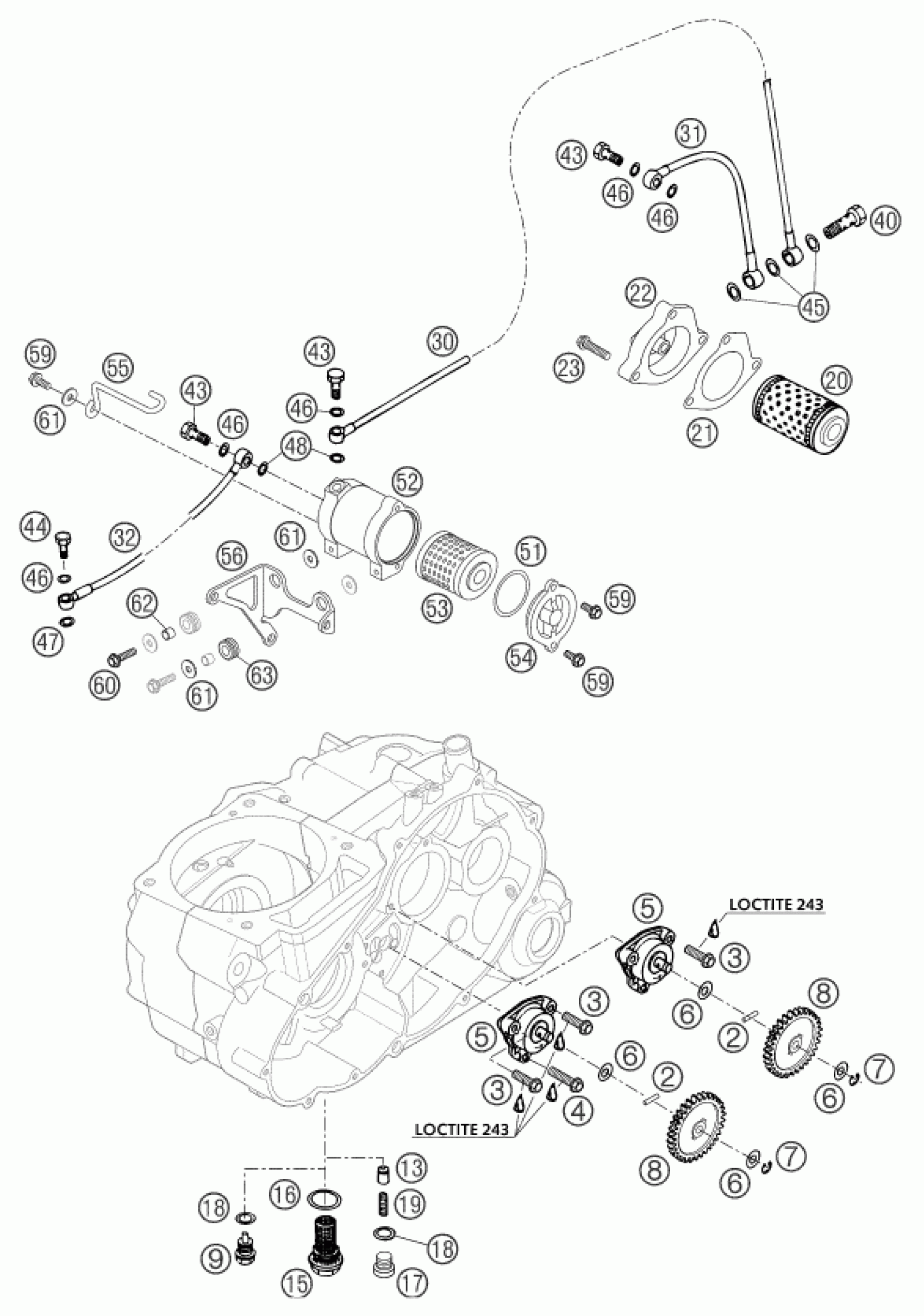

KTM 625 SXC 2003 LUBRICATING SYSTEM Diagram

#

Description
Price

2

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

Unavailable

3

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

4

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

5

OIL PUMP MIKUNI G-73-10

58038007700

Unavailable

6

STOP DISK 8,1 X 15 X 0,5

58038007755

Unavailable

7

TAB WASHER DIN6799-RS 6,0

0799060000

Unavailable

8

OIL PUMP GEAR 26-T

58438001000

Unavailable

9

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

13

VALVE PISTON D=10MM

58038028000

Unavailable

15

OIL DRAIN PLUG M22X1,5

58038019100

Unavailable

16

CU-SEAL RING DIN7603-22X27X2

58038017100

Unavailable

17

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

18

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

19

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

20

OIL FILTER LONG

58038005000

Unavailable

21

OIL FILTER COVER GASKET 2001

58530041000

Unavailable

22

OIL FILTER COVER 2001

58030008700

Unavailable

23

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

30

OIL LINE O.FILTER/M.FIL. 315MM

58338334000

Unavailable

31

OIL LINE CLUTCH COVER-FRAME

58338034000

Unavailable

32

OIL LINE JUNC.B-CRANK.300MM 01

58538046000

Unavailable

40

DUAL BANJO BOLT M10 X 1

58038033100

Unavailable

43

BANJO BOLT M8 X 1 DIN7643

58038030000

Unavailable

44

JET SCREW M 8 X 1 ''150''

58038130000

Unavailable

45

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

46

SEAL RING CU DIN7603- 8X12X1

0603082121

Unavailable

47

CU-SEAL RING 8 X 12 X 1,5

58038032300

Unavailable

48

COPPER GASKET 8,2X12X2 MM 2001

0603821220

Unavailable

51

O-RING 40,00X2,50 NBR 70

0770400025

Unavailable

52

MICRO FILTER HOUSING 02

58338043000

Unavailable

53

OIL FILTER SHORT

59038046000

Unavailable

54

OIL FILTER COVER RACING

59038041000

Unavailable

55

HANGER FOR BRAKE HOSE REAR 03

58613073000

Unavailable

56

BRACKET FOR MICRO FILTER 03

58338040100

Unavailable

59

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

60

HH COLLAR SCREW M 5X20 WS=8

0015050203

Unavailable

61

washer DIN 9021 A - 5.3

0021050003

Unavailable

62

SPACER BUSHING 6,5 X 8 X 7

58011039000

Unavailable

63

rubber grommet D=8mm open

31008060000

Unavailable
