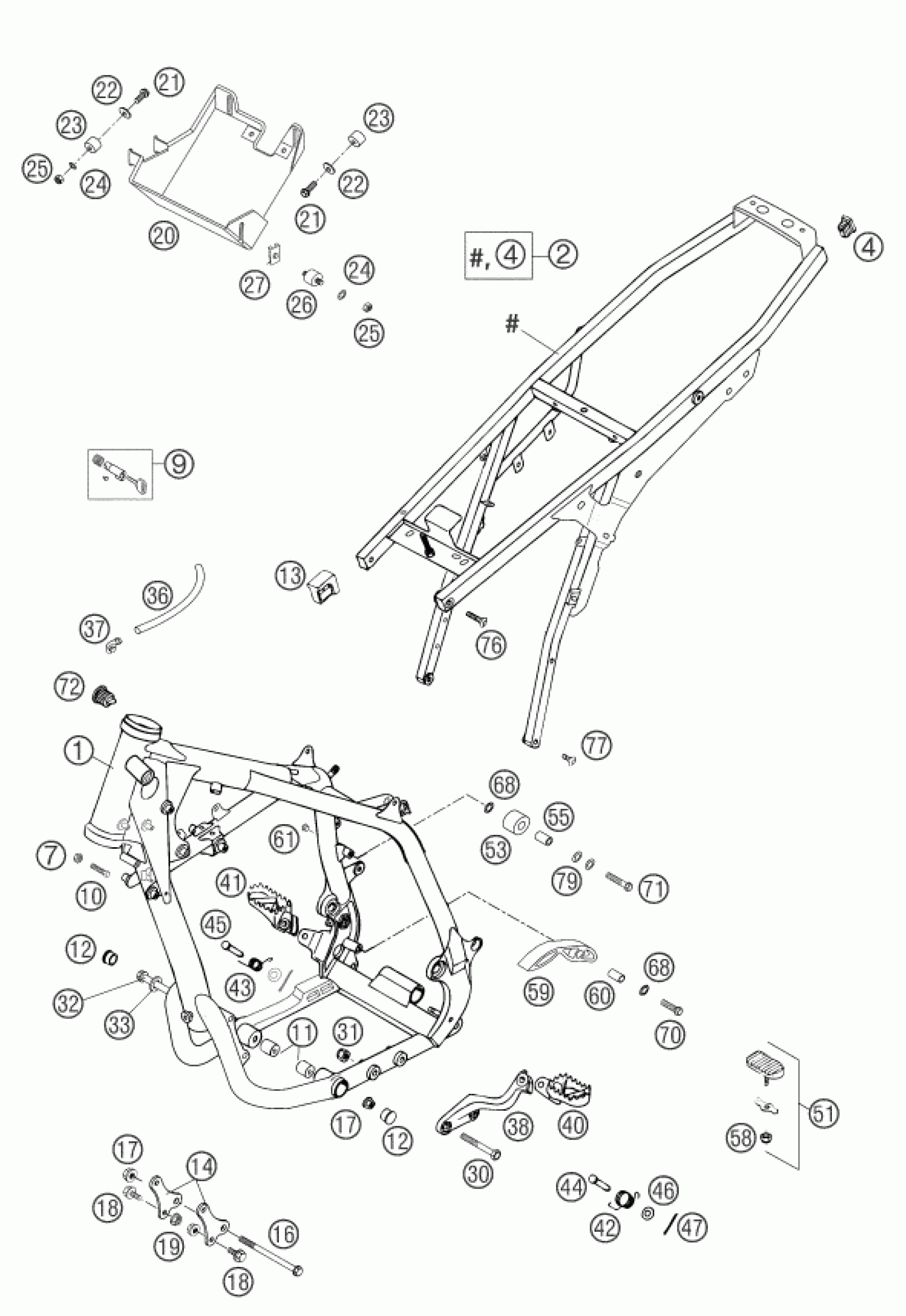

KTM 625 SXC 2003 FRAME Diagram

#

Description
Price

1

FRAME CPL. 625SXC/660SM 03

5830310154490

Unavailable

2

SUBFRAME CPL. STEEL SILVER 00

5840300234490

Unavailable

4

PLUG 12 X 17 MM

58303002090

Unavailable

7

Hexagon nut DIN934 M8

0934080003

Unavailable

9

STEERING HEAD LOCK CPL. ZADI

71003007000

Unavailable

10

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

11

SPACER ROLLER 10,3X20X22

58003012000

Unavailable

12

PVC CAP D=22MM

71001012100

Unavailable

13

TANK SUPPORT '93

58307015000

Unavailable

14

ENGINE SUPPORT AGW '94

58303055000

Unavailable

16

ENGINE BRAC.SCREW M10X110 WS13

58403013000

Unavailable

17

COLLAR NUT M10 WS=13

54630044000

Unavailable

18

HH COLLAR SCREW M 8X16 WS=13

49109481052

Unavailable

19

Self locking nut M8 10.9

54310086200

Unavailable

20

BATTERY BOX 03

58403002370

Unavailable

21

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

22

Washer DIN9021-A 6.4

0021060003

Unavailable

23

silentbloc 20x15-M6x10-(1)

43205062100

Unavailable

24

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

Unavailable

25

Hex. nut DIN 934 M6

0934060003

Unavailable

26

RUBBER GROMMET 20X15-M6X8-(2)

58403002010

Unavailable

27

clip nut M6

54603048100

Unavailable

30

HH SCREW DIN0931-M10X60

0931100603

Unavailable

31

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

Unavailable

32

ENGINE BRAC.SCREW M10X160 WS13

58403014000

Unavailable

33

WASHER 10,5 X 21 X 3

31004001100

Unavailable

36

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

37

ANGLE PIECE '97

50303089000

Unavailable

38

*FOOTREST BRACKET L/S SILVER99

5830303800090

Unavailable

40

FOOTREST L/S SILVER '99

5830304000090

Unavailable

41

FOOT REST R/S SILVER '98

5460314000090

Unavailable

42

FOOTREST SPRING L/S '93

58303041000

Unavailable

43

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

44

BOLT FOR FOOTREST

58303044000

Unavailable

45

BOLT FOR FOOTREST 9,8 X 50

54603044000

Unavailable

46

washer DIN 125 A 10.5

0125100003

Unavailable

47

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

51

FOOTREST RUBBER CPL. '94

58303045044

Unavailable

53

CHAIN ROLL 12X29X22,5 '98

58403060000

Unavailable

55

BUSH CHAIN ROLL 8X12X23 '98

58403060065

Unavailable

58

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

59

CHAIN SLIDING PIECE BELOW '97

51103053000

Unavailable

60

BUSHING 8,2X10X20

51103053051

Unavailable

61

PLASTIC CAP SFL10

54403135000

Unavailable

68

LOCK WASHER 8MM

36003014000

Unavailable

70

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

71

HH COLLAR SCREW M 8X45 WS=10

0015080453

Unavailable

72

PLASTIC CAP

42007049000

Unavailable

76

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

77

SPROCKET SCREW-AH M8X20 WS=6

54610052000

Unavailable

79

washer DIN 125 A -8.4

0125080003

Unavailable
