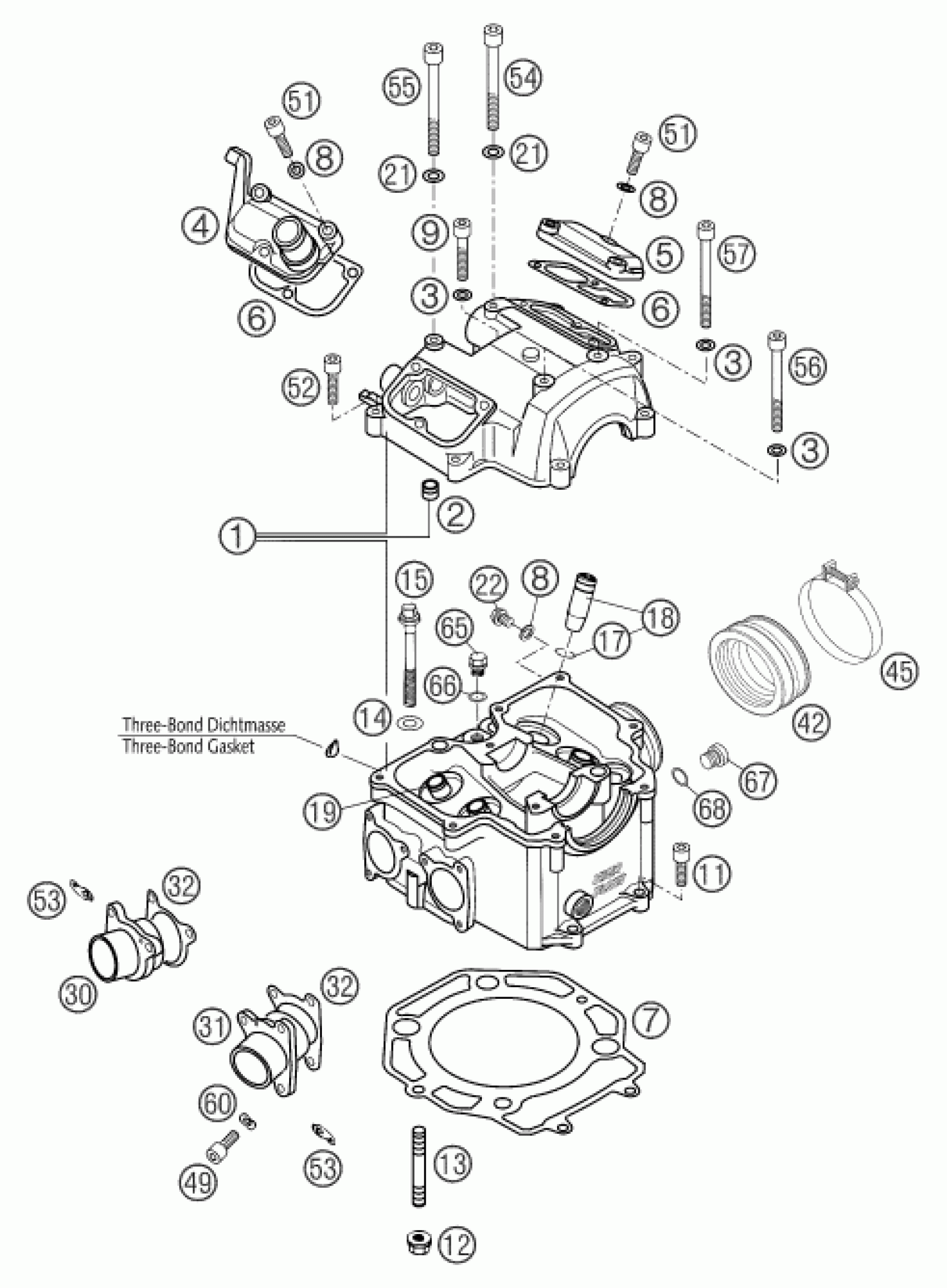

KTM 625 SXC 2003 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD CPL. LC4/SXC

5843602010023

Unavailable

2

DOWEL BUSHING 9,8X7,2X10

58530090000

Unavailable

3

CU-SEAL RING 6 X 10 X 2

58036065100

Unavailable

4

VALVE COVER FRONT '99

58036152600

Unavailable

5

VALVE COVER REAR

58036052000

Unavailable

6

VALVE COVER GASKET

58036053000

Unavailable

7

CYLINDER HEAD GASKET 101,3 MM

58330036000

Unavailable

8

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

9

AH SCREW DIN0912-M 6X35

0912060353

Unavailable

11

AH SCREW DIN0912-M 6X25

0912060253

Unavailable

12

COLLAR NUT M8

49030028000

Unavailable

13

STUD DIN0835-M 8X40

54330043000

Unavailable

14

CU-SEAL RING 10 X 20 X 1

58036098000

Unavailable

15

COLLAR SCREW M10X80 WS=13 10.9

58036099100

Unavailable

17

CIRCLIP DIN7993-RW12

0993012000

Unavailable

18

VALVE GUIDE INTAKE CPL.

58036026644

Unavailable

19

VALVE GUIDE EXHAUST CPL.

58036126644

Unavailable

21

CU-SEAL RING DIN7603- 7X12X2

0603070122

Unavailable

22

HH COLLAR SCREW M 6X8 WS=8

0015060083

Unavailable

30

EXHAUST FLANGE R/S

58036040000

Unavailable

31

EXHAUST FLANGE L/S

58036140000

Unavailable

32

EXHAUST FLANGE GASKET

58036041000

Unavailable

42

INTAKE BOOT RALLYE 2001

58536044000

Unavailable

42

INTAKE BOOT FOR MIKUNI CARBU.

58436044000

Unavailable

45

CLAMP D=56MM B=9MM M4X25

59030061000

Unavailable

45

CLAMP SM12/A60

56530061000

Unavailable

49

AH SCREW DIN0912-M 6X16

0912060163

Unavailable

51

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

52

AH SCREW DIN0912-M 6X25

0912060253

Unavailable

53

RETAINING PLATE

51005074000

Unavailable

54

AH SCREW DIN0912-M 7X55 12.9

0912070553

Unavailable

55

AH SCREW DIN0912-M 7X60 12.9

0912070603

Unavailable

56

SHCS DIN 912 M6x65

0912060653

Unavailable

57

AH SCREW DIN0912-M 6X70

0912060703

Unavailable

60

spring washer DIN 137 B - 6

0137060003

Unavailable

65

PLUG DIN0910-M 10X1

0910100003

Unavailable

66

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

67

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

68

o-ring 10.00x2.00 silicone

0770100020

Unavailable
