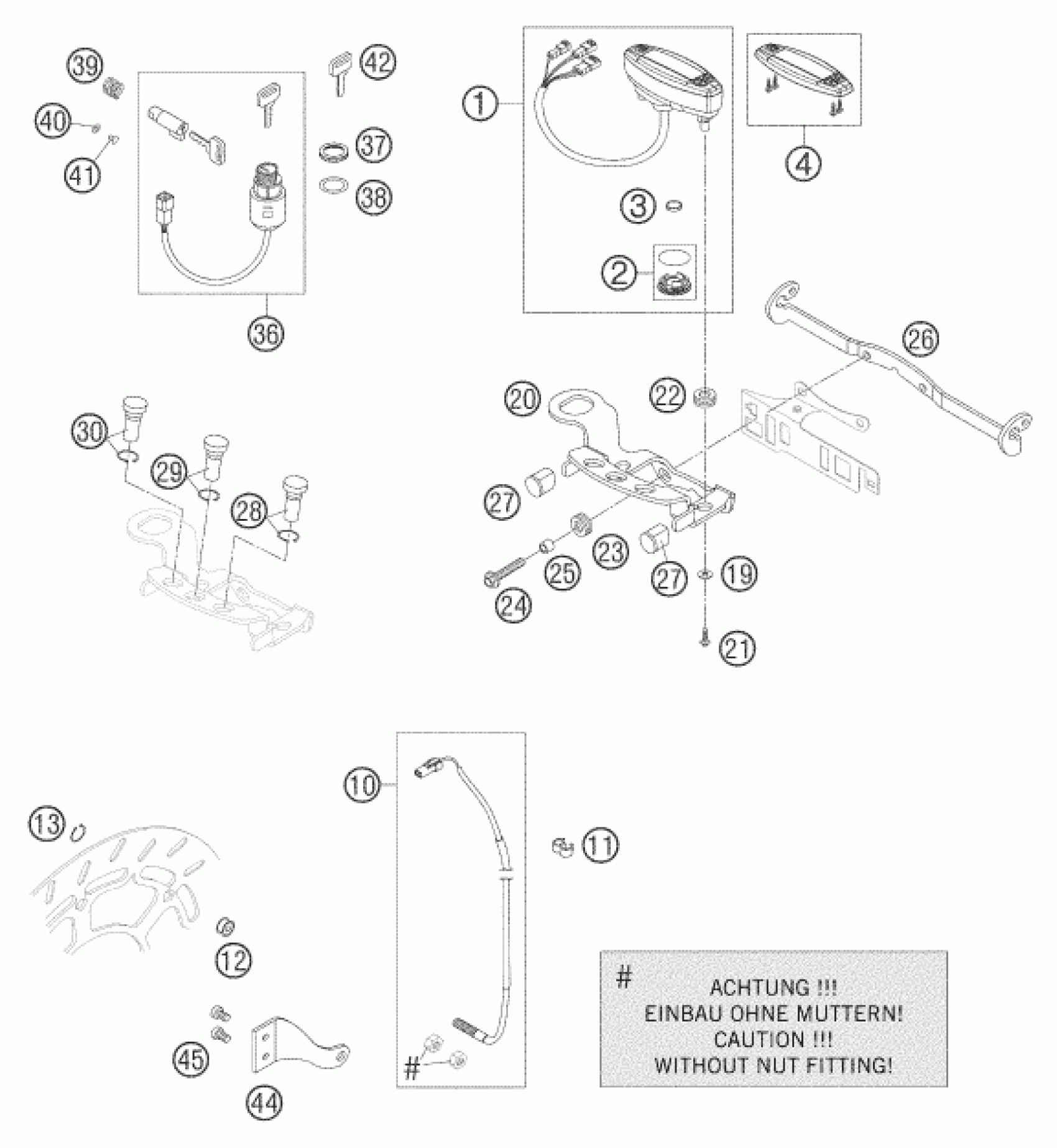

KTM 625 SMC 2005 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER KM/H F. 17'' 200

54814069200

Unavailable

2

BATTERY COVER F. SPEEDOM. 2005

54814069010

$12.33

3

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

$9.81

4

SPEEDOMETER TOP PART 05

54814069020

$35.80

10

CABLE FOR DIGITAL SPEEDOM. 05

54814068000

$69.28

11

CLAMP D=6/8MM, BLACK

55011022100

$2.54

12

SENSOR MAGNET ADVENTURE 01

58214069050

$17.20

13

CIRCLIP DIN0471- 9X1 INOX

0471009104

$2.54

19

washer DIN 9021 A - 5.3

0021050003

$1.69

20

SPEEDOM.BRACKET 625 SXC+SMC 05

58614060100

Unavailable

21

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

22

rubber grommet 16x10.8x3

58214069051

$5.23

23

rubber grommet D=8mm open

31008060000

$2.54

24

HH COLLAR SCREW M 6X25 WS=8

0014060253

Unavailable

25

SPACER BUSHING 6,5 X 8 X 7

58011039000

$2.54

26

FLASHER BRACKET 2002

58314033100

Unavailable

27

PLUG CAP KV8 05

58608003000

Unavailable

28

FLASHER INDICAT.LIGHT GREEN'98

58011024300

$6.72

29

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

$6.63

30

NEUTRAL INDIC. LIGHT GREEN '98

58011023300

$6.72

36

LOCK SYSTEM 625 SXC 03

58411066400

$80.78

37

IGNITION LOCK NUT M24X1

50311066050

$6.26

38

WASHER F. IGNITION LOCK 03

58411066450

$5.41

39

SPRING L=16MM

12003007052

Unavailable

40

SPRING WASHER DIN137 B3

0137030003

Unavailable

41

GROOVED NAIL RIVETO AF10

45002040091

Unavailable

42

KEY BLANK BLACK ''T'' GR

40011166200

Unavailable

44

BRACKET F. SENSOR SM 03

58314052000

Unavailable

45

CYL.HEAD SCREW DIN0084-M 4X 6A

0084040063

Unavailable
