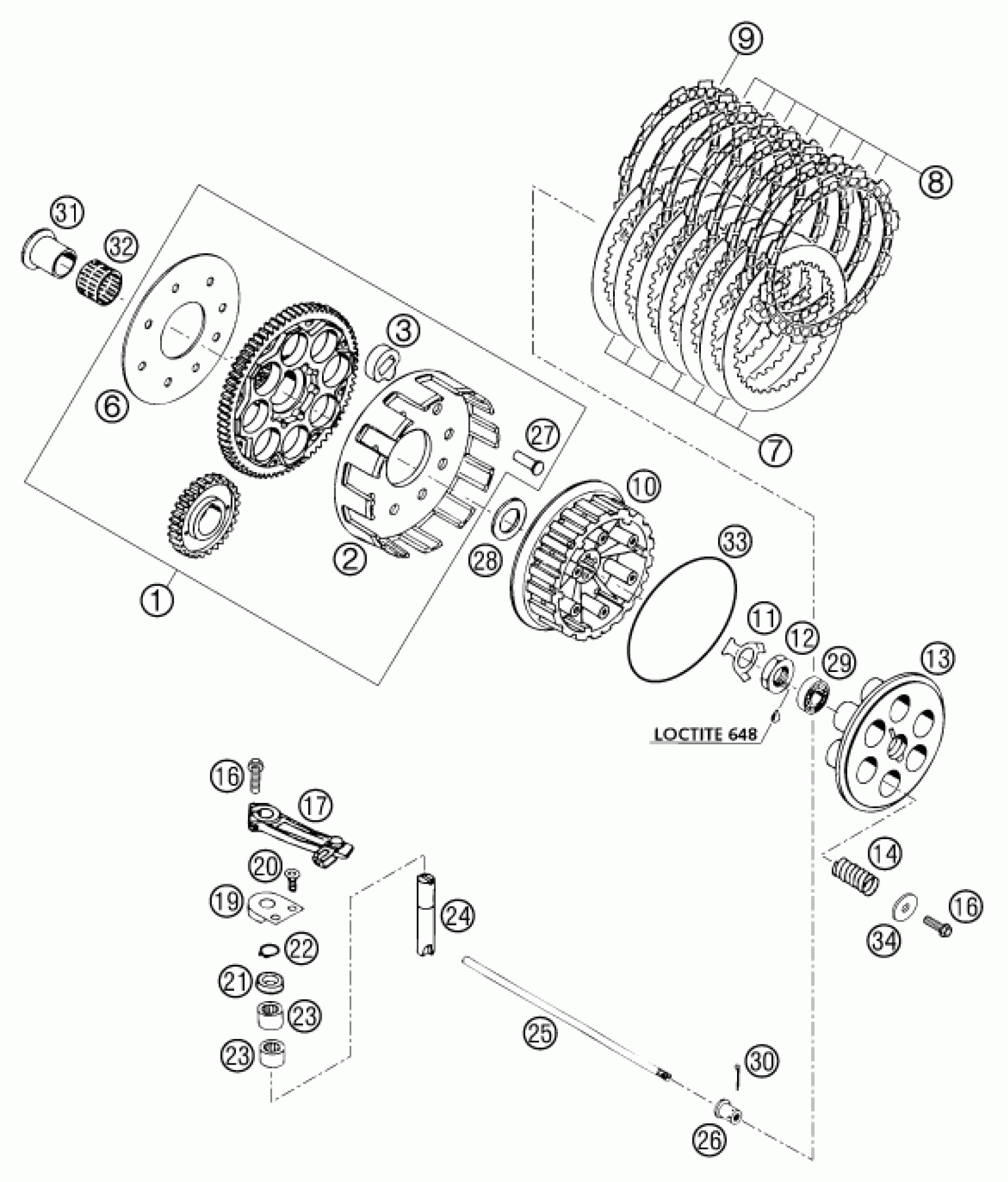

KTM 625 SC 2002 CLUTCH Diagram

#

Description
Price

1

OUTER CL.HUB 81-T W.PRIM.30

58332001081

Unavailable

2

OUTER CL.HUB LOOSE D=160MM '

58332001000

Unavailable

3

DAMPING ELEMENT '94

58332026000

Unavailable

6

BRACKET 57 x 132 x 1,5 '94

58332028000

Unavailable

7

STEEL DISK 1,5 MM LC4'94

58332112000

Unavailable

8

LINING DISK 2,7MM FCC 02

58332011300

Unavailable

9

LINING DISK TURN OUT FCC 02

58332111300

Unavailable

10

INNER CL HUB LC4/LC4-E '98

58332002200

Unavailable

11

LOCK WASHER '94

58332018000

Unavailable

12

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

Unavailable

13

PRESSURE CAP LC4/LC4-E '98

58332003200

Unavailable

14

CLUTCH SPRING 2,8 X 37

58332080000

Unavailable

16

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

17

CL.RELEASE LEVER L=51,5MM '94

58332014044

Unavailable

19

RETAINING PLATE FOR RELEASING

54532013000

Unavailable

20

FLAT HEAD SCREW DIN7991 M6x12

0991060123

Unavailable

21

NUT RING NIS 12X20X5,5

54532093000

Unavailable

22

retaining ring DIN 471 12x1

0471120010

Unavailable

23

NEEDLE BEARING HK 1212

50332095000

Unavailable

24

DISENGAGING SHAFT 12 X 66 '93

57532015000

Unavailable

25

PUSH ROD 224 MM LC4'94

58332017000

Unavailable

26

PRESSURE BOLT LC4'94

58332032000

Unavailable

27

RIVET 6 X 23 X 11,2

58332007000

Unavailable

28

SUPPORTWASHER 22,2X35X3 HARDE.

57532013000

Unavailable

29

deep groove ball bearing 6001.

0625060016

Unavailable

30

PIN DIN0094-2,0X16

0094020163

Unavailable

31

INNER RING WITH COLLAR

50332070000

Unavailable

32

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

Unavailable

33

O-RING 116,00X3,00 HNBR 70

0770116030

Unavailable

34

WASHER 6,5 X 20 X 2

58432081000

Unavailable
