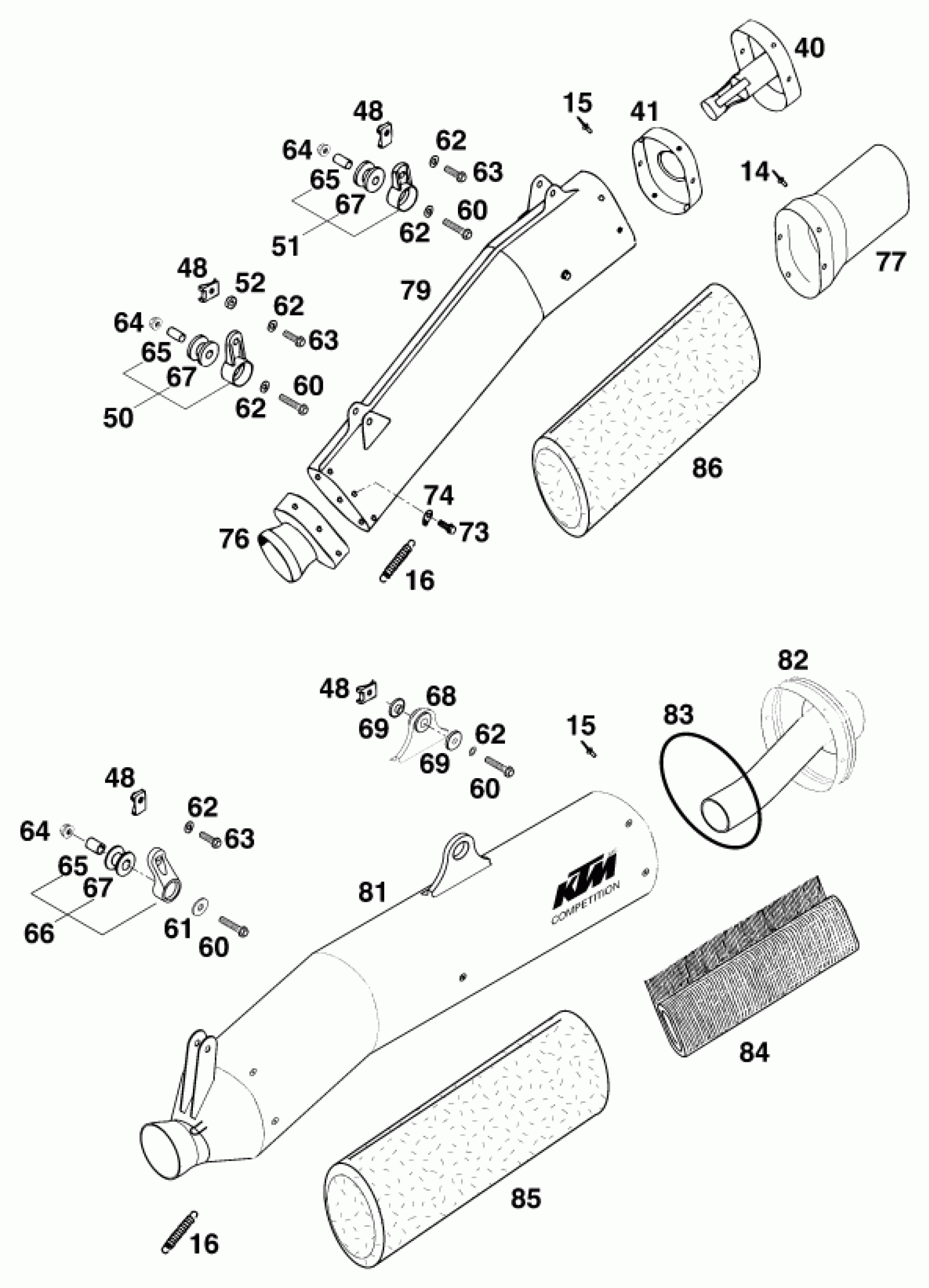

KTM 620 TXC <1998> MAIN SILENCER Diagram

#

Description
Price

0

* STUFFING YARN LOOSE PER

58005079055

Unavailable

14

* DUMMY RIVET 5,0X10 ALU

0011501000

Unavailable

15

DUMMY RIVET 4,8X 7,5 NIRO

0011480752

Unavailable

16

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

40

SILE. CAP SX D=30MM EUROPE'97

58305079480

Unavailable

41

SILE. CAP SX D=30MM USA'97

58305079180

Unavailable

48

clip nut M6

54603048100

Unavailable

50

SIL. BRACKET CPL. LONG SILICON

54305065244

Unavailable

51

SIL. BRACKET CPL.SHORT SILICON

54305065344

Unavailable

52

STEEL WASHER 6,4X17X3

50232050001

Unavailable

60

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

61

Washer DIN9021-A 6.4

0021060003

Unavailable

62

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

63

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

64

SELF LOCKING NUT M6

56509064000

Unavailable

65

BUSHING 7X12X15,4

54305069000

Unavailable

66

SILENCER BRACKET CPL. SHORT'96

58305165244

Unavailable

67

damp. component silicone grey

54305068100

Unavailable

68

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

69

BUSHING 7,5X12X28X7,8 '96

54605069000

Unavailable

73

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

74

RETAINING PLATE

51005074000

Unavailable

76

CONNECTING CAP HXC SILENCER

58305079090

Unavailable

79

* SILENCER "KTM MX" USA'94

58305079100

Unavailable

79

% SILENCER "KTM MX" EUROPE '

58305079200

Unavailable

81

% SILENCER THROTTLED SXC'

58305081000

Unavailable

81

% SILENCER UNTHROTTLED SXC'

58305081100

Unavailable

82

END CAP CPL. SXC THROTTLED '

58305081003

Unavailable

82

END CAP CPL.SXC UNTHROTTLED'

58305081004

Unavailable

83

O-RING 82,14X3,53 SILICONE

0770223601

Unavailable

84

STUFFING YARN REAR 90 GRAMM'98

58305078002

Unavailable

85

STUFFINGYARN FRT 400GRAMM'98

58305078000

Unavailable

86

STUFFING YARN LOOSE 300 GRAMM

58005079056

Unavailable
