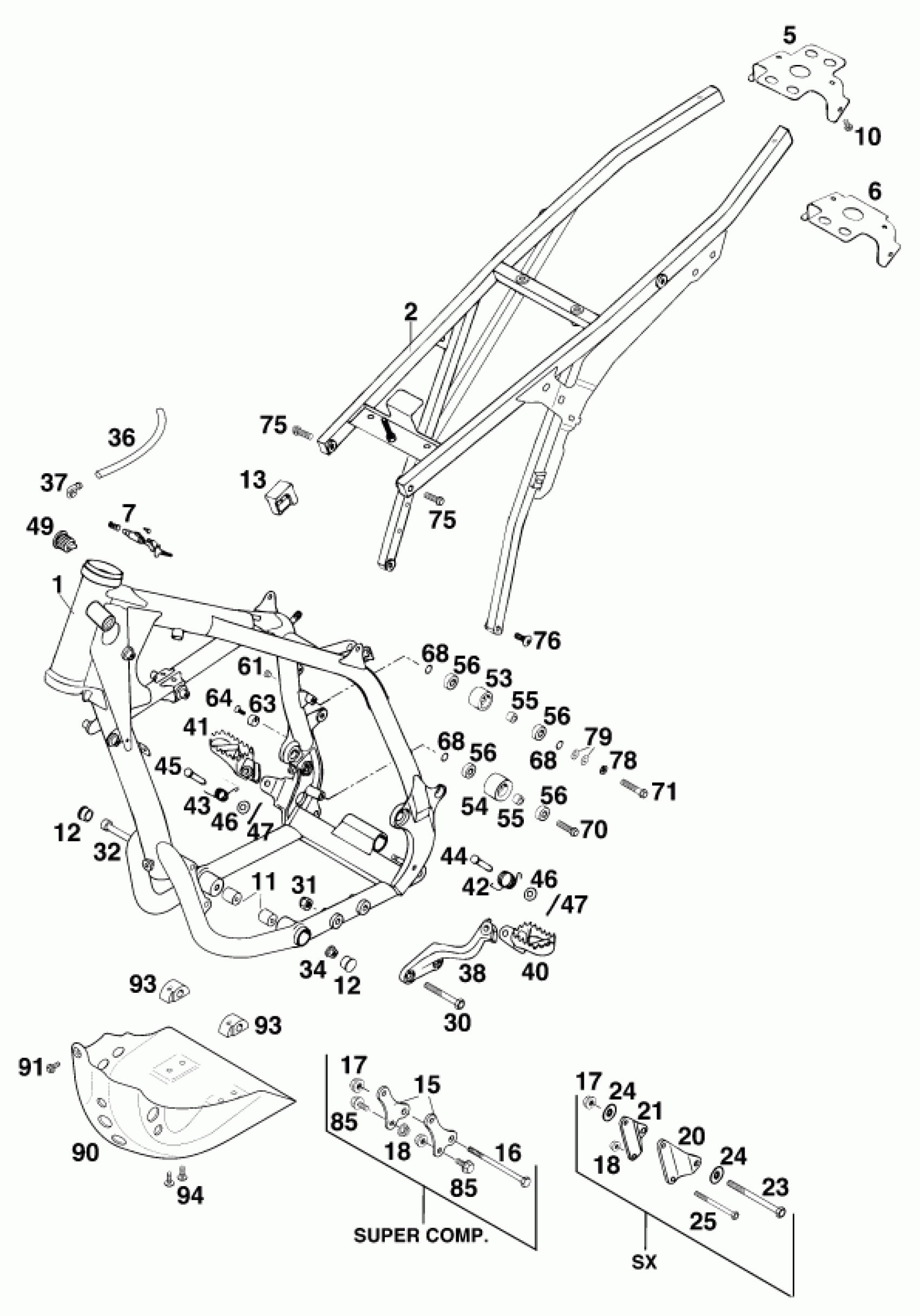

KTM 620 TXC <1998> FRAME Diagram

#

Description
Price

1

58303001600

Unavailable

1

% FRAME SC '

58303001700

Unavailable

2

% SUB FRAME CPL. ALU '

58303102400

Unavailable

5

BUSHING EXC-NUMBERPLATECARRIER

58303002045

Unavailable

6

BUSHING EGS-NUMBERPLATECARRIER

58303002145

Unavailable

7

STEERING HEAD LOCK CPL. ZADI

71003007000

Unavailable

10

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

11

SPACER ROLLER 10,3X20X22

58003012000

Unavailable

12

PVC CAP D=22MM

71001012000

Unavailable

13

TANK SUPPORT '93

58307015000

Unavailable

15

ENGINE SUPPORT AGW '94

58303055000

Unavailable

16

HH SCREW DIN0931-M10X110

0931101103

Unavailable

17

flanged hex nut DIN 6927 M10 W

49009082000

Unavailable

18

54310086000

Unavailable

20

ENGINE SUPPORT L/S ALU SX

58003055600

Unavailable

21

* ENGINE SUPPORT R/S ALU SX

58003155600

Unavailable

23

HH SCREW DIN0931-M10X120

0931101203

Unavailable

24

WASHER 10,5 X 21 X 3

31004001100

Unavailable

25

HH SCREW DIN0931-M 8X80

0931080803

Unavailable

30

HH SCREW DIN0931-M10X60

0931100603

Unavailable

31

SELF LOCKING NUT DIN0985-M10

0985100003

Unavailable

32

AH SCREW DIN0912-M10X160

0912101603

Unavailable

34

COLLAR NUT M10 WS=13

54630044000

Unavailable

36

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

37

ANGLE PIECE '97

50303089000

Unavailable

38

FOOTREST BRACKET L/S '93

58303038000

Unavailable

40

FOOTREST L/S '

58303040000

Unavailable

41

FOOTREST R/S '93

5460314000019

Unavailable

42

FOOTREST SPRING L/S '93

58303041000

Unavailable

43

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

44

BOLT FOR FOOTREST

58303044000

Unavailable

45

BOLT FOR FOOTREST 9,8 X 50

54603044000

Unavailable

46

washer DIN 125 A 10.5

0125100003

Unavailable

47

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

49

PLASTIC CAP

42007049000

Unavailable

53

CHAIN ROLL D=30MM

50203053000

Unavailable

54

CHAIN ROLL D=35MM

50203053100

Unavailable

55

BUSHING 8.2 X 12 X 6

74003021000

Unavailable

56

Grooved ball bearing 608 2RS C

0625006087

Unavailable

61

PLASTIC CAP SFL10

54403135000

Unavailable

63

BRAKE LEVER STOP '93

58303063000

Unavailable

64

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

68

LOCK WASHER 8MM

36003014000

Unavailable

70

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

71

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

75

HH COLLAR SCREW M 8X25 WS=10

0015080253

Unavailable

76

SPROCKET SCREW-AH M 8X26

54510052000

Unavailable

78

TOOTHLOCK WASHER DIN6797-J 8,4

0797080003

Unavailable

79

washer DIN 125 A -8.4

0125080003

Unavailable

85

HH COLLAR SCREW M 8X16 WS=13

49109481052

Unavailable

90

58303005144

Unavailable

91

HH COLLAR SCREW M 6X13 WS=8

0014060133

Unavailable

93

ENGINE PROTECTOR BRACKET '97

58003012200

Unavailable

94

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable
