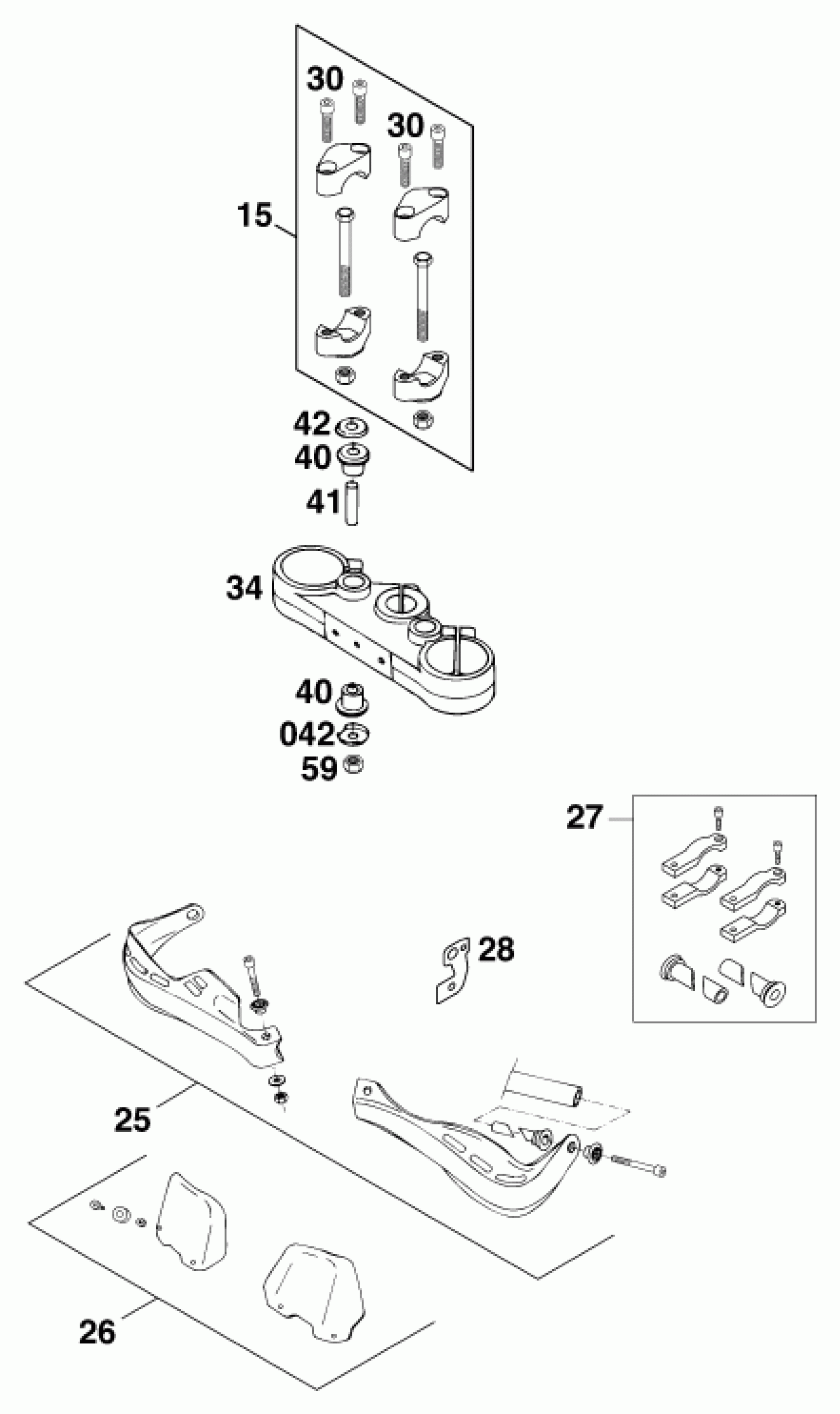

KTM 620 TXC <1998> ACCESSORIES Diagram

#

Description
Price

0

FLASHER BRACKET R/S BENT

58314034000

Unavailable

15

SUPPORTKIT F.HANDL.DUKE,ADV'97

58402001050

Unavailable

25

% HAND GUARD CPL.L+R/S BLACK

5020207904430

Unavailable

26

SCREEN CPL.L+R/S BLACK

5020207905030

Unavailable

27

FASTENING KIT HAND GUARDS CPL.

50202079051

Unavailable

28

FLASHER BRACKET L/S BENT

58314033000

Unavailable

30

AH SCREW DIN0912-M 8X35

0912080353

Unavailable

34

TOP TRIPLE CLAMP X=16MM/D=50MM

58301234016

Unavailable

40

rubber bushing

56401040000

Unavailable

41

SPACER TUBE 10,2X12X44

56401041100

Unavailable

42

washer 10.5x32x2

56401042000

Unavailable

42

WASHER 10,5X31

56401142000

Unavailable

59

SELF LOCKING NUT DIN0985-M10

0985100003

Unavailable
