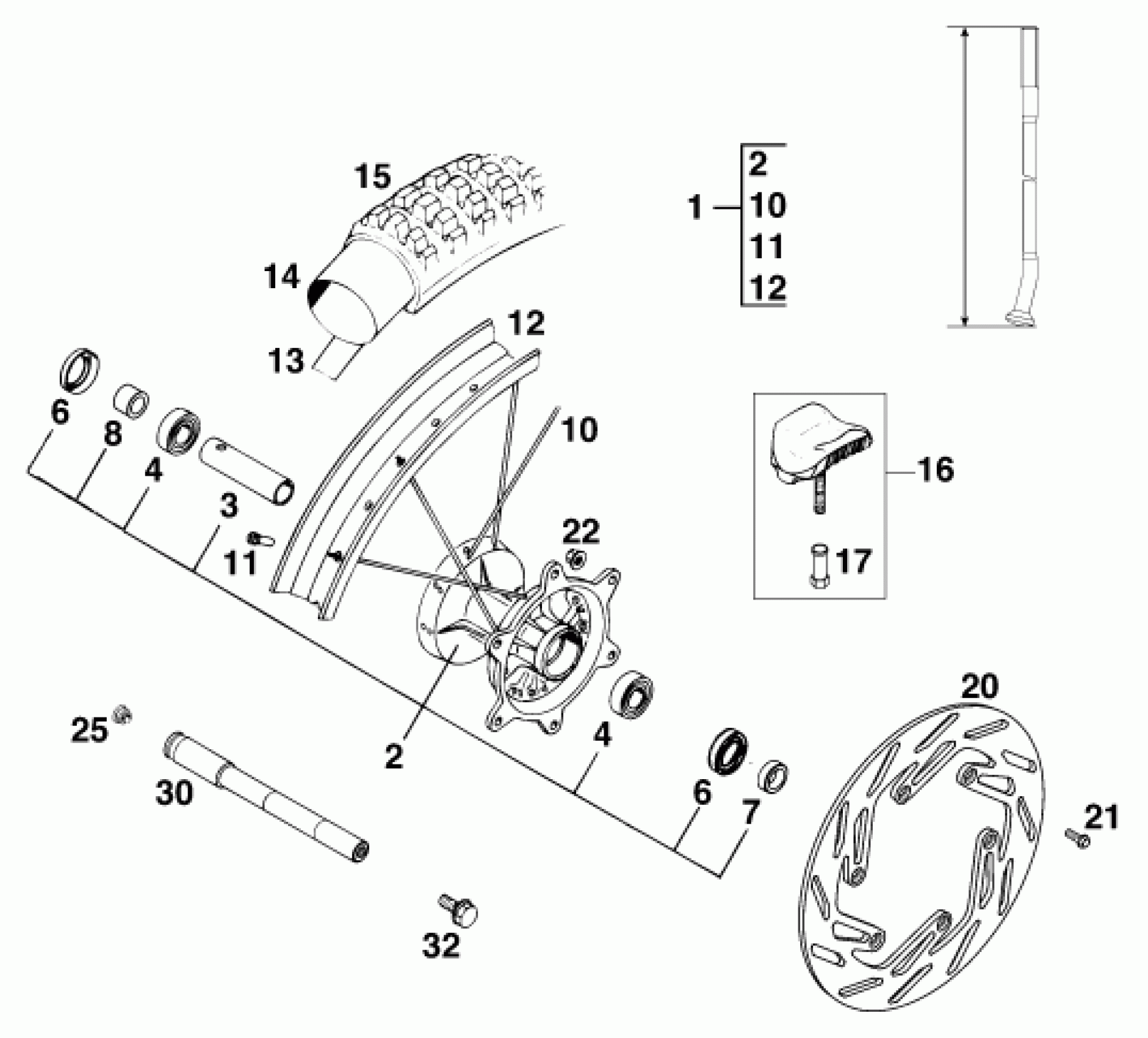

KTM 620 SX WP <1997> FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL 1,6X21''EXCEL SX'9

54609001544

Unavailable

2

FRONT WHEEL HUB SILVER SX'94

56509010944

Unavailable

3

BUSHING SPACER TUBE 17,5X22X82

56509011400

Unavailable

4

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

Unavailable

6

SHAFT SEAL RING 25X35X7 BSL

0760253571

Unavailable

7

SPACER RING 17X25X7,5

54609051000

Unavailable

8

SPACER BUSHING 17X25X15

54609051100

Unavailable

10

SPOKE M5X234-15G 21'' DDE

58309071234

Unavailable

11

STEEL NIPPLE M5

56509072000

Unavailable

12

FRONT RIM 1,6X21'' EXCEL AL4

54609070100

Unavailable

13

RIM BAND 21''

51009073000

Unavailable

14

51009075000

Unavailable

15

* TYRE 80/100-21" 51R MT18

54609074700

Unavailable

16

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

17

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

20

FRONT BRAKE DISK D=260MM

56509060700

Unavailable

21

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

22

SELF LOCKING NUT M6

56509064000

Unavailable

25

PLUG SFL13

55009086000

Unavailable

30

FRONT AXLE L=235MM

50309081000

Unavailable

32

HH COLLAR SCREW M10X20 WS=17

49032011000

Unavailable
