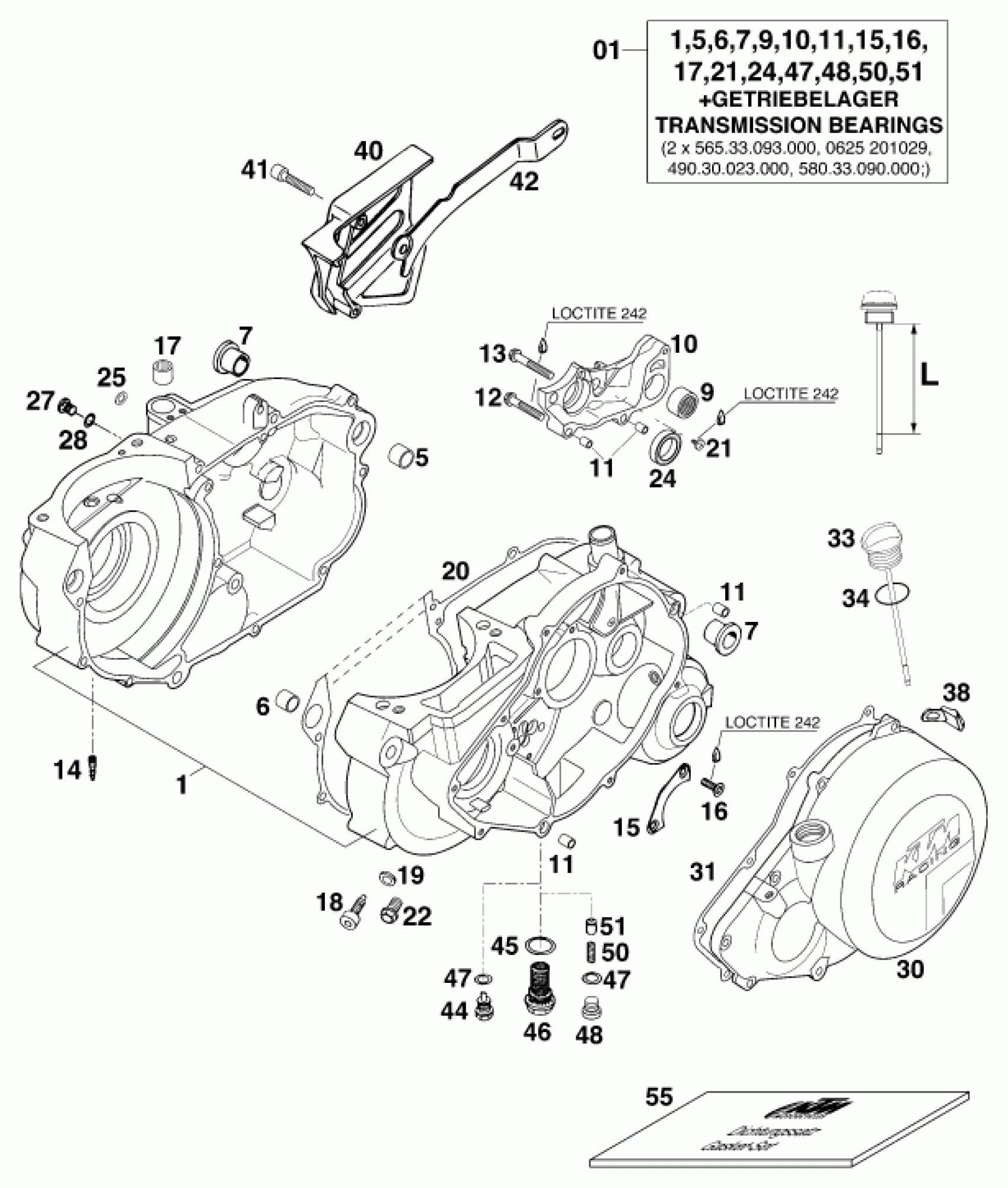

KTM 620 SX <1998> ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL.W.TRAN.BEAR'98

58330000544

Unavailable

5

DOWEL 19 X15,1X12

50130027000

Unavailable

6

DOWEL 17 X 13 X 12

51030026100

Unavailable

7

CRANK CASE BUSH

50130010000

Unavailable

9

NEEDLE BEARING HK 2216

58033097000

Unavailable

10

SHIFT MECHANISM SUPPORT LC4'94

58330011000

Unavailable

11

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

12

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

13

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

14

TUBE LW 3

49130450050

Unavailable

15

RETAINING PLATE

56530017000

Unavailable

16

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

Unavailable

17

NEEDLE BEARING HK 1212

50332095000

Unavailable

18

LOCATING SCREW M8 L=23

58030080000

Unavailable

19

CU-SEAL RING DIN7603- 8X12X1

58038032000

Unavailable

20

ENGINE CASE GASKET SX,SXC '98

58330039100

Unavailable

21

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

Unavailable

22

HH COLLAR SCREW M 8X10 WS=10

0015080103

Unavailable

24

BALL BEARING 61805 C3

0625618050

Unavailable

25

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

27

OIL DRAIN PLUG M10X1,5 AH-WS=6

49030029000

Unavailable

28

CU-SEAL RING DIN7603-10X14X1

58038032010

Unavailable

30

CLUTCH COVER SX'97

58330001400

Unavailable

31

CLUTCH COVER GASKET SX'97

58330025400

Unavailable

33

OIL DIPSTICK CPL. L=93MM '96

58330020144

Unavailable

34

O-RING 16,00X3,00 NBR 70

0770160030

Unavailable

38

BUMP RUBBER

58333041000

Unavailable

40

CHAIN COVER BLACK '

58030050600

Unavailable

41

AH SCREW DIN0912-M 6X30

0912060303

Unavailable

42

CHAIN DAMPER SHEET LC4 '90

58030047515

Unavailable

44

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

45

CU-SEAL RING DIN7603-22X27X2

58038017100

Unavailable

46

OIL DRAIN PLUG M22X1,5

58038019100

Unavailable

47

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

48

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

50

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

51

VALVE PISTON D=10MM

58038028000

Unavailable

55

GASKET SET 400-620 SX,SXC '98

58330099300

Unavailable
