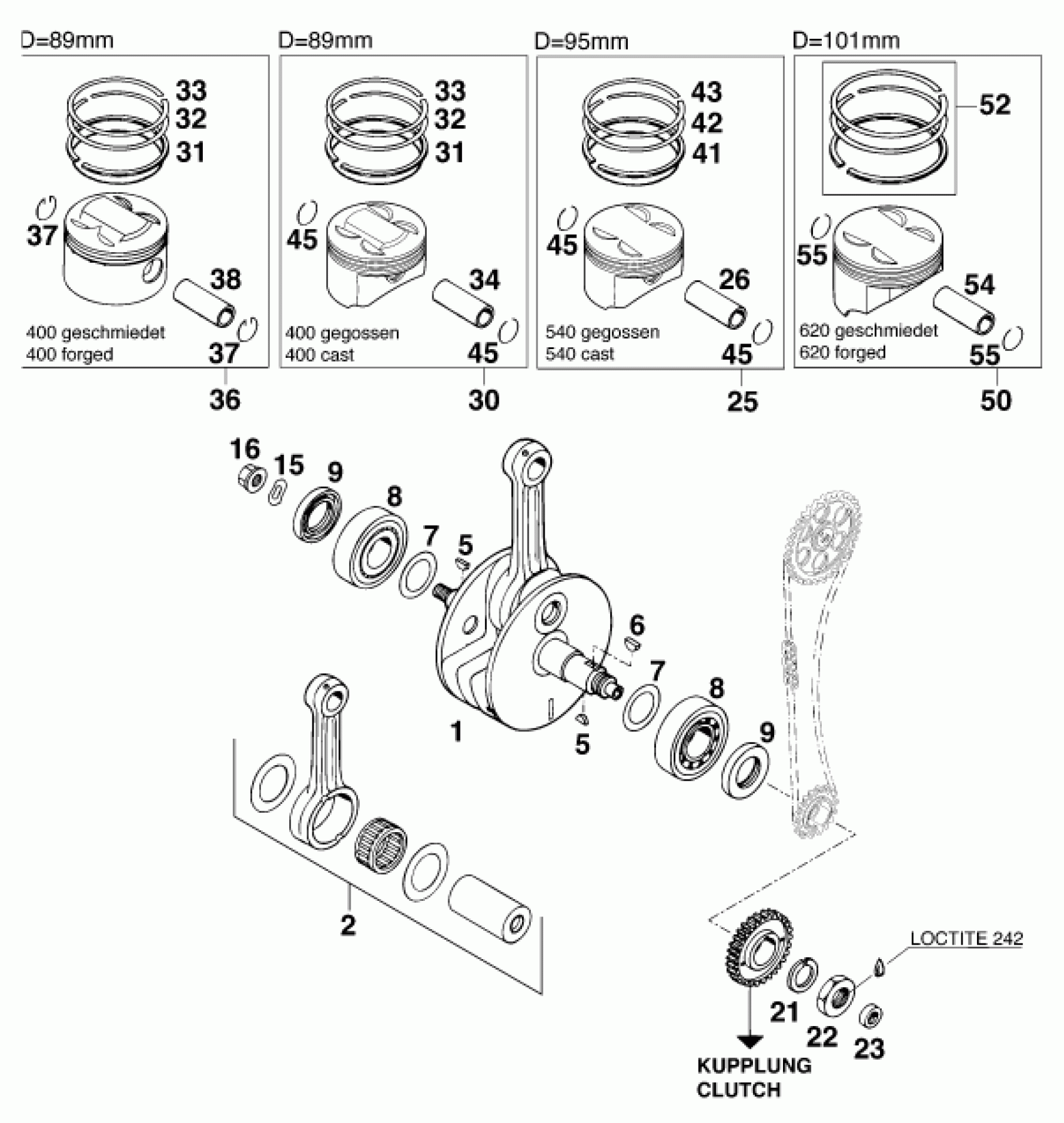

KTM 620 SX <1998> CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL. 400 LC4 '97

57630018000

Unavailable

1

CRANKSHAFT CPL. 540/620 LC4'

58330018000

Unavailable

2

CONNECTING ROD REPAIR SET LC4

58030015044

Unavailable

2

CONNECTING ROD REPAIR SET LC

58330015044

Unavailable

5

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

6

WOODRUFF KEY 5X6,5 HARDED

6946005

Unavailable

7

THRUST WASHER 30,5X45X0,10

56030081000

Unavailable

7

THRUST WASHER 30,7X47X0,15

56030081100

Unavailable

7

THRUST WASHER 30,5X45X0,30

56030081200

Unavailable

8

CYL.ROLLER BEARING NJ 306 C3

58030082000

Unavailable

9

SHAFT SEAL RING 30X47X7 BSL

0760304771

Unavailable

15

SPRING WASHER DIN0137-B12

0137120000

Unavailable

16

COLLAR NUT M12X1 LEFT WS=17

51030028100

Unavailable

21

LOCKING RING VSK 20

58030019000

Unavailable

22

HEXAGON NUT DIN0936-M20X1,5

0936200155

Unavailable

23

SHAFT SEAL RING 12 X 22 X 7 B

0760122270

Unavailable

25

PISTON I 95MM CPL. CAST '96

57630007100 I

Unavailable

25

PISTON II 95MM CPL. CAST '96

57630007100 II

Unavailable

26

PISTON BOLT 22 X 13 X 56,3

57630033100

Unavailable

30

PISTON I 89MM CPL. CAST '99

57730007000 I

Unavailable

30

PISTON II 89MM CPL. CAST '99

57730007000 II

Unavailable

31

OIL SCRAPER RING 89MM

57530031000

Unavailable

32

TAPERED COMPR.PISTON RING 89MM

57530132000

Unavailable

33

RECTANGULAR RING 89MM

57530032000

Unavailable

34

* PISTON BOLT 22X13X54,2 '

57730033000

Unavailable

36

PISTON I 89 MM CPL. FORGED

57530007000 I

Unavailable

36

PISTON II 89MM CPL. FORGED

57530007000 II

Unavailable

37

CIRCLIP A 22 X 1,5

58030074000

Unavailable

38

PISTON PIN 22 X 13 X 54,2

58030033000

Unavailable

41

OIL SCRAPER RING 95MM

58030631000

Unavailable

42

TAPERED COMPR.PISTON RING 95MM

58030732000

Unavailable

43

RECTANGULAR RING 95MM

58030632000

Unavailable

45

CIRCLIP C 22 X 1,5

58030074100

Unavailable

50

PISTON 101 MM CPL. FORGED

58330007200

Unavailable

52

PISTONRING SET KPL.101MM ARIAS

58330031244

Unavailable

54

PISTON PIN 22 X 13,5 X 63,5

58030833000

Unavailable

55

CIRCLIP C 22 X 1,2

58030874000

Unavailable
